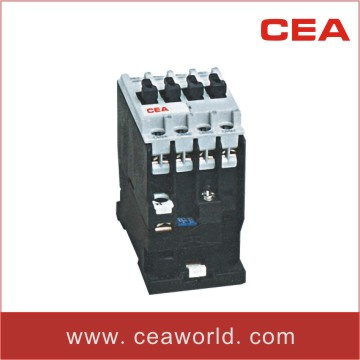

3TF AC Contactor

Name: 3TF AC Contactor
Brand: all-electronics-online.com
SKU: 690365615
Availability: InStock
Rating: 4.9 (115 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEC1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

CEC1 AC contactor is suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC60947, BS5424 & VDE 0660.

The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary
Contacts are arranged 2NO, 2NC at most. It is employed the flexible locking connection between the contact support and core, there are no arc-isolated panel in the Ie≤ 22A contactors. In the ≥ 32A conductors. There are moulded arc-chute with arc-isolated panel. All can be mounted by screws, le< 32A conductor also by installation rail.

Type	Rated Thermal Current (A)	Rated Operation Current (A)		Controllable Power of Motor				Type of Auxiliary Contact
		Rated Operation Current (A)		AC-3		AC-4
		380V	660V	380V	660V	380V	660V
CEC1-30	20	9	7	4	5.5	1.4	2.4	NO NC 1NO+1NC 2NO+2NC
CEC1-31	20	12	8.5	5.5	7.5	1.9	3.3
CEC1-32	30	16	12.5	7.5	11	3.5	6
CEC1-33	30	22	16.5	10	15	4	6.6
CEC1-34	55	32	24	15	22	7.5	13
CEC1-35	55	38	30	18.5	22	9	15.5
CEC1-40	20	9	7	4	5.5	1.4	2.4
CEC1-41	20	12	8.5	5.5	7.5	1.9	3.3
CEC1-42	30	16	12.5	7.5	11	3.5	6
CEC1-43	30	22	16.5	10	15	4	6.6
CEC1-44	55	32	24	15	22	7.5	13
CEC1-45	55	38	30	18.5	22	9	15.5
CEC1-46	80	45	40	22	37	12	20.8	2NC+2NO 4NC+4NO
CEC1-47	80	63	60	30	55	14	24.3
CEC1-48	100	75	60	37	55	17	29.5
CEC1-49	100	85	80	45	75	21	36
CEC1-50	160	110	95	55	90	27	46.9
CEC1-51	160	140	120	75	110	35	60
CEC1-52	200	170	160	90	150	38	66
CEC1-53	210	205	165	110	160	50	86
CEC1-54	300	250	230	132	220	58	100
CEC1-55	300	300	260	160	250	66	114
CEC1-56	400	400	380	200	355	81	140
CEC1-68	630	630	600	335	560	160	278

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
