Prod Model: |
SV1.25-3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shap: |
Spade |
Material: |
Copper |
Shape: |
Spade |
Product Description

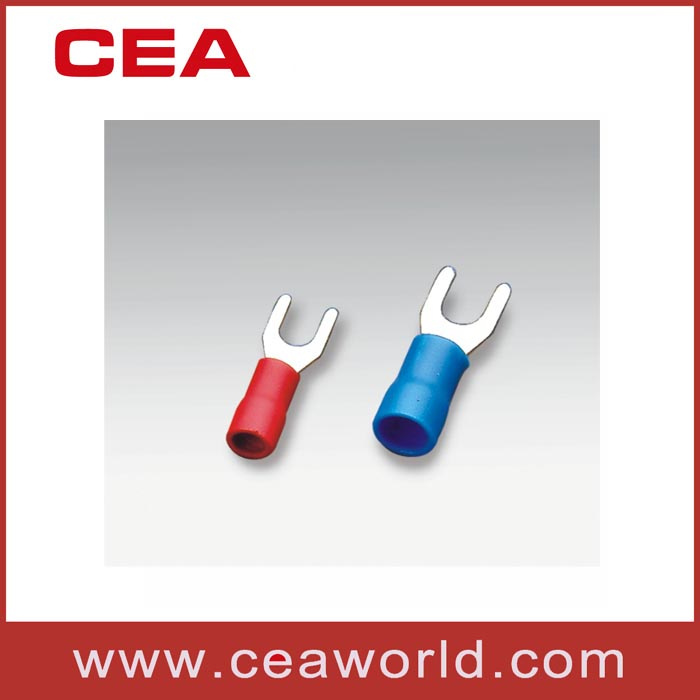

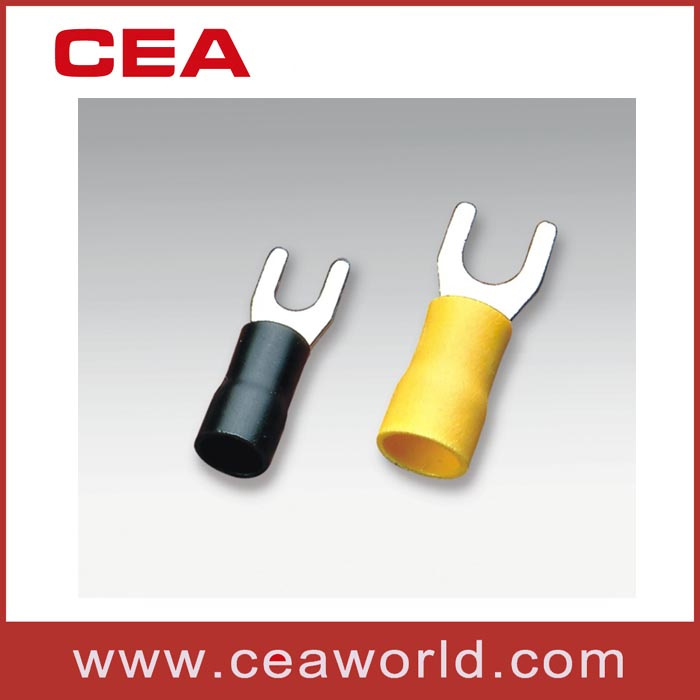

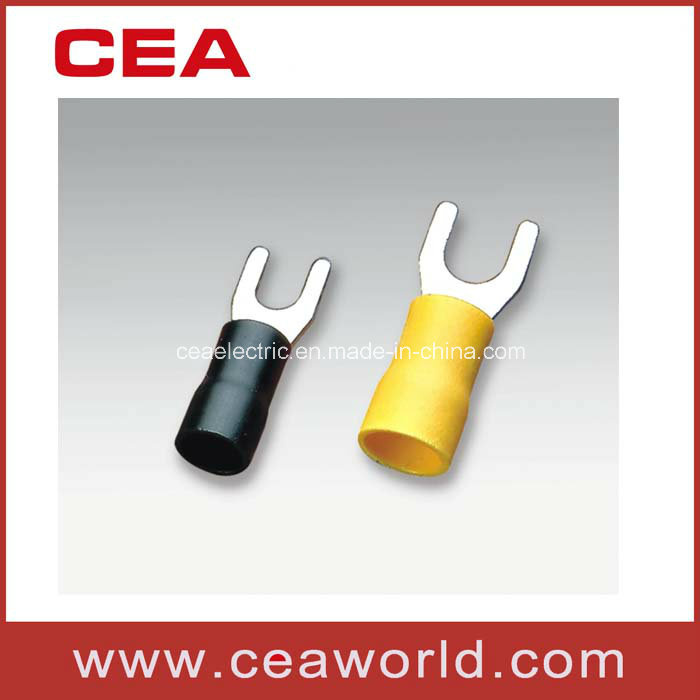

Insulated Spade Terminals Size: SV1.25-3 ~ SV5.5-8
Material: red copper/brass, PVC Insulation.
Finish: Tin plated
Packing: 100pcs per polybag, each bag per paper box.
FOB Port SHANGHAI / NINGBO

0.5~1.5mm2(22-16) Imax=19A

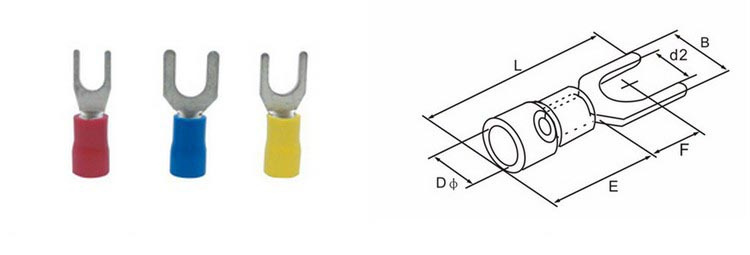

Item No. | USA Screw | Dimension(mm) | Color |
d2 | B | L | F | H | DΦ |
SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
SV1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 |
SV1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 |
SV1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 |
SV1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 |
SV1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 |
SV1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 |
SV1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 |
SV1.25~6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 |
SV1.25-6 | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 |
1.5-2.5mm2 (16-14) Imax=27AItem No. | USA Screw | Dimension(mm) | Color |
d2 | B | L | F | H | DΦ |
SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Blue |
SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 |
SVL2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 |
SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 |
SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 |
SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 |
SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 |
SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 |
SVL2-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 |
SVL2-6 | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 |
2.5-4mm2 (14-12) Imax=37AItem No. | USA Screw | Dimension(mm) | Color |
d2 | B | L | F | H | DΦ |
SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 12.5 | 6.2 | Black |
SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 |
SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 |
SV3.5-6 | 1/4 | 6.5 | 12.0 | 28.0 | 12.1 |
4-6mm2 (12-10) Imax=48AItem No. | USA Screw | Dimension(mm) | Color |
d2 | B | L | F | H | DΦ |
SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
SVS5.5-4 | #8 | 4.3 | 8.3 | 25.5 | 7.5 |
SVL5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 |
SV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 |
SVS5.5-6 | 1/4 | 6.5 | 9.0 | 25.2 | 7.5 |
SVL5.5-6 | 1/4 | 6.5 | 12.0 | 31.2 | 12.0 |
SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 |
Company Information:

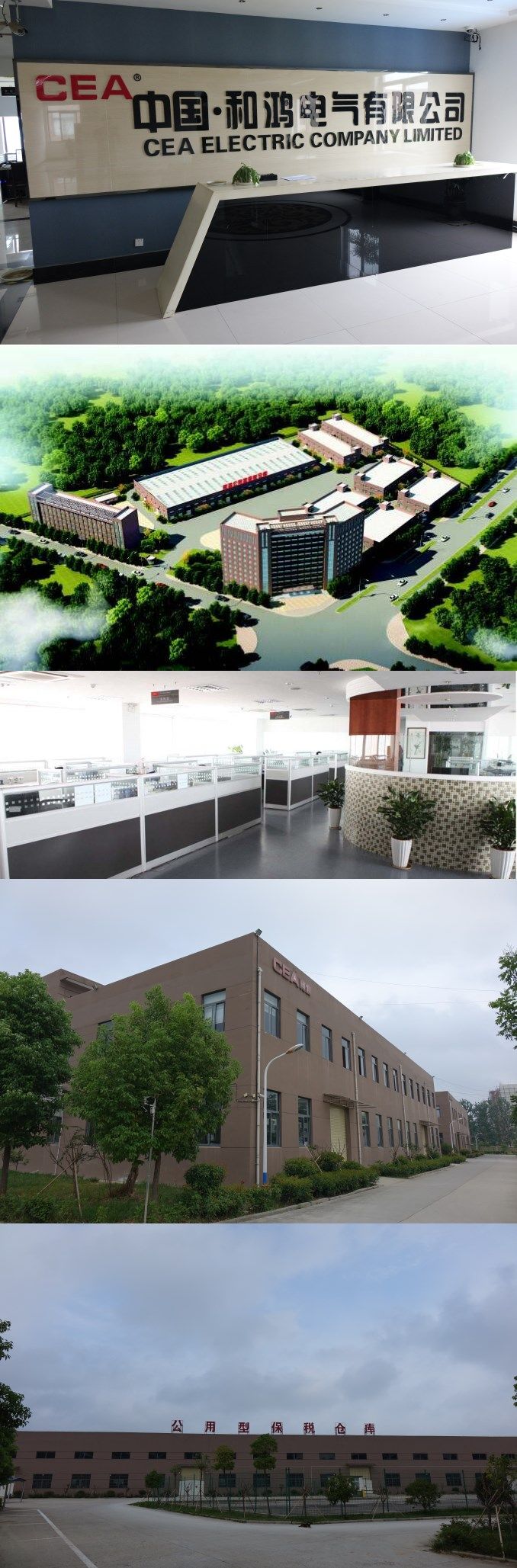

Founded in 1999, CEA Elecreic Co., Ltd is acknowledged as one of the most respected electrical apparatus and LED lighting manufacturer in China. The company located in Fuyang city Anhui Province, owns production area of 50,000m
