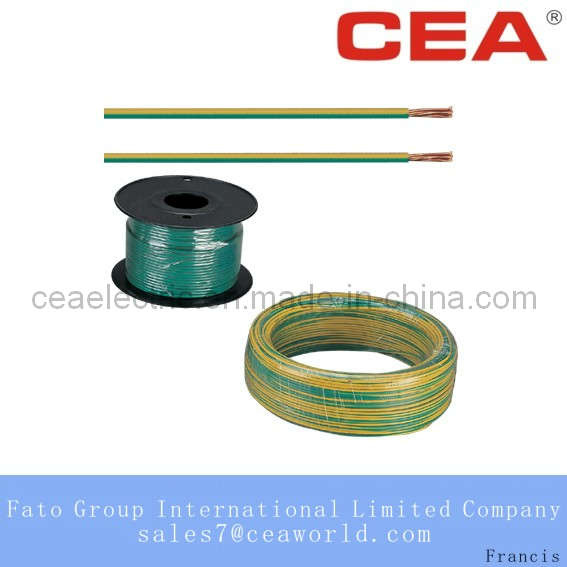

Single Core PVC Insulated Flexible Wire H07V-K

Name: Single Core PVC Insulated Flexible Wire H07V-K
Brand: all-electronics-online.com
SKU: 690141585
Availability: InStock
Rating: 4.4 (76 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	H07V-K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material:	PVC
Conductor Type:	Stranded
Conductor Material:	Copper
Type:	Insulated
Application:	Electrical Appliances

Product Description

Application:
Suitable for use in channels with coverand for fixed protected installation in or on lighting fittings and inside appliances, switchgear and controlgear for voltages up to 1000V a. C. Or, up to 750V d. C. To earth.

FlexiblePVC-insulated wire H07V-K according to HD 21.3 S3, BS 6004 DIN VDE 0281-3, NF C 32-201-3, PN-HD 21.3 S3

Nominal Voltage: 450/750 V

Conductor: Class 5 flexible plain copper conductors to BS EN 60228: 2005 (previously BS6360) class 5 acc. To DIN VDE 0295 fine stranded

Insulation: PVC (Polyvinyl Chloride)

Insulation Colour: Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink

Temperature Rating: 0° C to +70° C

Minimum Bending Radius: 6 x overall diameter

Specification:

Conductor		Insulation (mm)		Maximum Diameter (mm)	Minimum Insulation Resistance at 70º C (MΩ • km)	Weight (kg/km)
Size (mm 2 )	Construction (mm)	Thickness	Nominal Diameter	Maximum Diameter (mm)	Minimum Insulation Resistance at 70º C (MΩ • km)	Weight (kg/km)
1× 1.5	30/0.25	0.7	3.00	3.4	0.010	20.9
1× 2.5	49/0.25	0.8	3.70	4.1	0.009	32.5
1× 4	56/0.30	0.8	4.30	4.8	0.007	50.1
1× 6	84/0.30	0.8	4.94	5.3	0.006	71.7
1× 10	84/0.40	1.0	6.44	6.8	0.0056	125.1
1× 16	126/0.40	1.0	7.59	8.1	0.0046	179.3
1× 25	196/0.40	1.2	9.48	10.2	0.0044	275.9
1× 35	276/0.40	1.2	10.95	11.7	0.0038	375.7
1× 50	396/0.40	1.4	12.63	13.9	0.0037	537.5
1× 70	360/0.50	1.4	14.53	16.0	0.0032	744.7
1× 95	475/0.50	1.6	16.99	18.2	0.0032	987.8
1× 120	608/0.50	1.6	18.69	20.2	0.0029	1242.6
1× 150	756/0.50	1.8	21.70	22.5	0.0029	1526.9

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
