3V-24V Switching AC DC Power Adapter

3V-24V Switching AC DC Power Adapter
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QW3-24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Adapter Type: AC DC Power Adapter
Packae: White Box and Standard Export Cart
Delivery Date: 15days
Warranty: One Year
Usage: Switching
Output Type: AC or DC
Connection: Plug In

Product Description

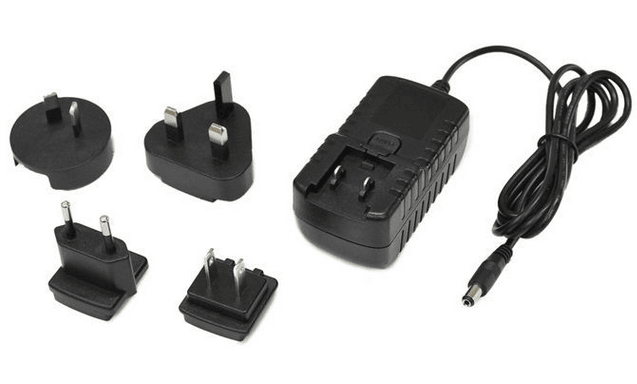

Switching AC/DC Adapter power 3V-24V
VoltageCustomzied
CurrentCustomzied
ConnectorCustomized

Specifications:
Input:
Voltage range: 100-240V AC (full range), 50/60Hz
Current range (rms): 0.45A at 90V AC, 0.2A at 264V AC(maximum)
Output:
Voltage range: 3-24V DC
Voltage regulation: ± 5% at constant voltage mode
Current range: 0.5-3.0A
Maximum power: 18W (maximum)
Protections: Over-current, over-voltage and short-circuit
Energy-saving
CEC, DOE, MEPS efficiency, level V and ErP stage II

Approvals:
Safety and EMC
ETL GS BS1363 SAA PSE FCC CE C-Tick
Operating temperature range: 0 to 40 ambient
Storage temperature range: -20 to 80
MTBF: >50, 000 hours at 80% load and 25 ambienttemperature
Weight: About 120g
Dimensions: 76.8 x 47.5 x 35mm

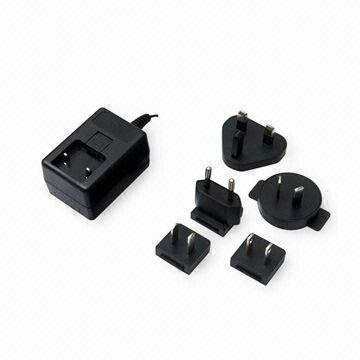

Changeable plug dimensions:
26.9 x 25.3mm for UL and CE plug
48.6 x 41mm for UK plug
54.6 x 18.2mm for SAA plug
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
