| Prod Model: |
TGPP Gear Motor TGPP06-D |
| Product Name: |
TGPP Gear Motor TGPP06-D |
| Basilar Plate: |
plastic |
| Gear Type: |
spur teeth |
| Output Shaft: |
Plastic |
| Main Gear: |
plastic |
| Bearing At Output: |
D-shape |
| Axial Play: |
0.05-0.1mm |
| Reduction Ratio: |
26-700 |
| Efficiency: |
79%-89% |
| Shaft Diameter: |
2mm |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Excitation Mode: |
Permanent Magnet |
| Function: |
Totally Enclosed |
| Structure And Working Principle: |
Coreless motor |
| Type: |
TGPP Gear Motor |
| Certification: |
RoHS CE |
| Brand: |
TT Motor |
Product Description

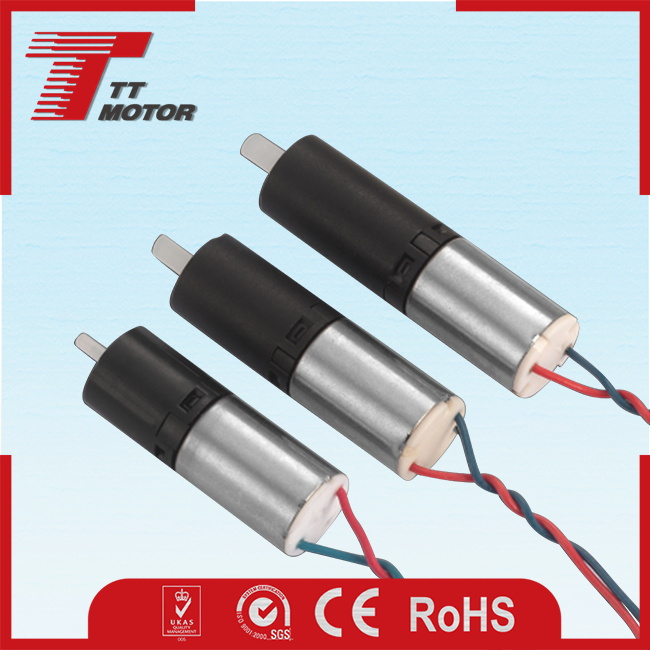

3V dc small plastic coreless motor for electronic locks
Main Features
1.OEM/ODM 6mm planetary gearbox plus 6mm Coreless motor
2.Small size dc gear motor with low speed and big torque
3.6mm gear motor provide 50g.cm torque and more reliabl
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:136,700

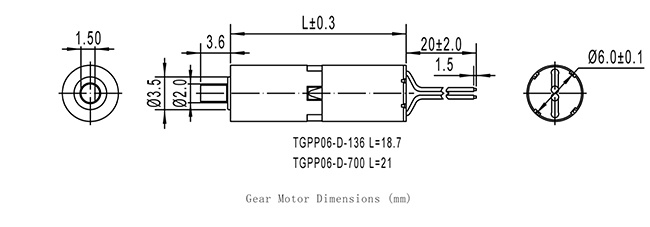

| Motor:TGPP06-D-136 |
| Rated Voltage | 3VDC |
| No-load speed rpm | 240rpm |
| No-load current | 60mA |
| Stall torque | 120g.cm |
| Stall current | 0.2A |
| Motor:TGPP06-D-700 |
| Rated Voltage | 3VDC |
| No-load speed rpm | 47rpm |
| No-load current | 60mA |
| Stall torque | 500g.cm |
| Stall current | 0.2A |
Related productProduct Application| Other Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |
Packing & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which countryOur company

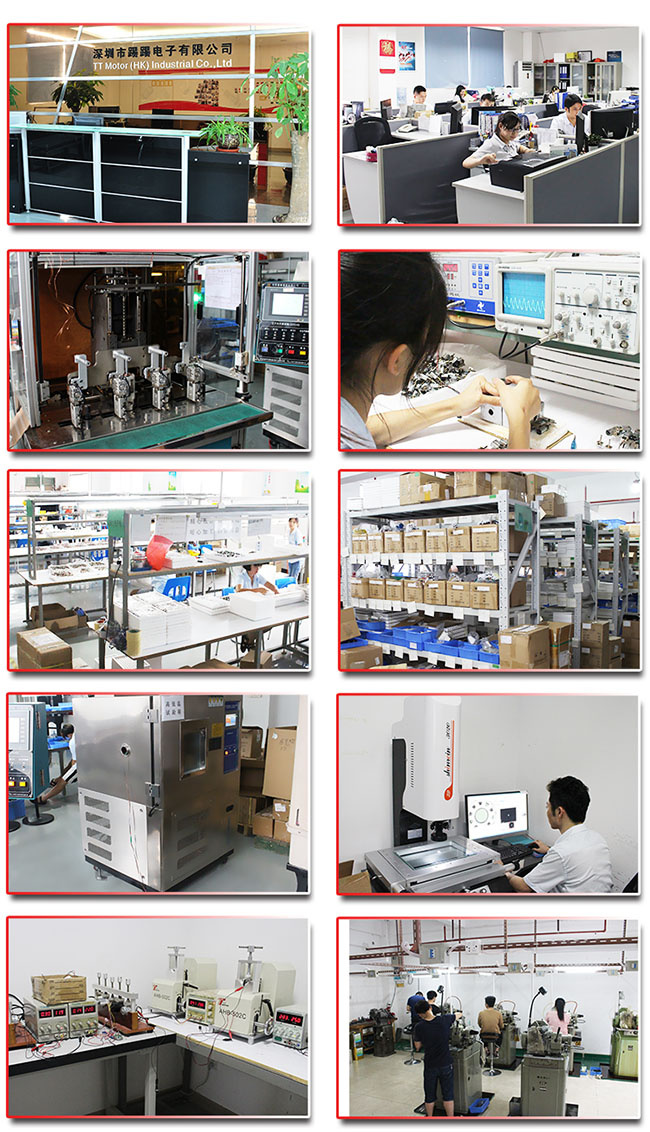

TT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
