3X1.5 mm2 Nyy 0.6/1.0 Kv Underground Electrical Power Cable

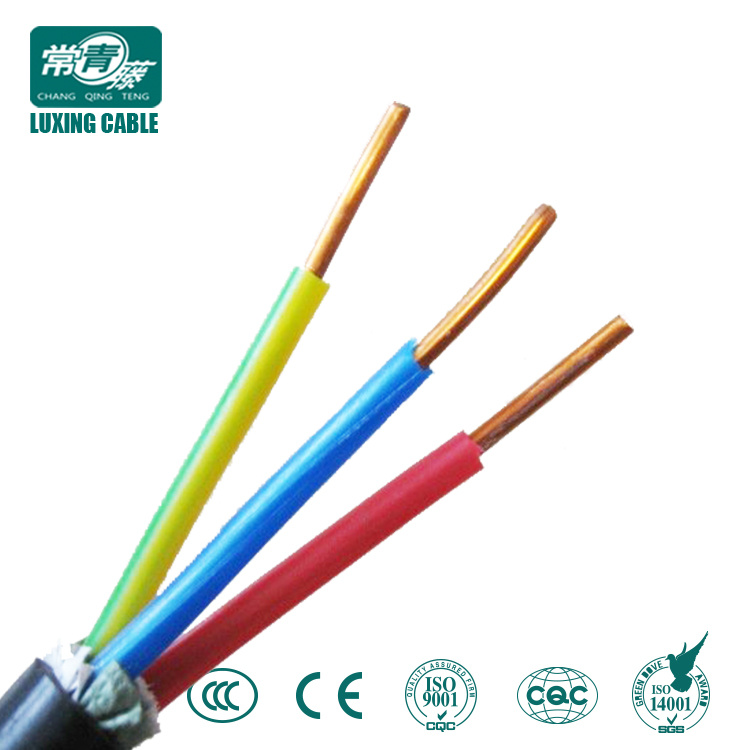

Name: 3X1.5 mm2 Nyy 0.6/1.0 Kv Underground Electrical Power Cable
Brand: all-electronics-online.com
SKU: 733690722
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 0.1-6/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3X1.5 mm2 NYY Electrical Power Cable
Item Name:	Nyy 1.5mm2 Electrical Power Cable
Rated Voltage:	300/500 V 450/750V
Conductor:	Flexible Copper Conductor
Insulation:	PVC
Sheath:	PVC
Standard:	IEC 60227
MOQ:	100
Delivery:	3-10 Working Days
Packaging:	100 Meter One Roll
Color Number:	2 3 4 5 6 7 8
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Conductor Type:	Solid / Stranded
Application:	Flexible Cable Wire
Range Of Application:	Lsoh / Flame Retardant
Brand:	Chang Qing Teng

Product Description

Specifications

Good quality,
Best techincal support.
Fast delivering

1. Material

Conductor: Plain annealed copper

Insulation: Flame retardant PVC compound

Sheath: Flame retardant PVC compound

2. Core identification

Colour Of Insulation: Red or Black

Colour Of Sheath: Grey or Black

3. Test Standards

Design Standards: BS6360, BS6004, IEC60227-3, IEC20228, IEC60502-1.

Material Compliance Standard: BS7655,IEC60811

Flame Retardancy Test: BS4066 PART 1, IEC60332-1

4. Product Parameter

Conductor		Nominal Thickness. of Insulation	Nominal Thickness of Sheath	Approx. Overall Diameter	Approx. Weight
Size	No/Diameter of Wire	Nominal Thickness. of Insulation	Nominal Thickness of Sheath	Approx. Overall Diameter	Approx. Weight
mm2	mm	mm	mm	mm	kg/km
1.5	1/1.38	0.8	1.4	6	52
1.5	7/0.53	0.8	1.4	6.2	55
2.5	1/1.78	0.8	1.4	6.4	65
2.5	7/0.67	0.8	1.4	6.7	68
4	7/0.85	1	1.4	7.6	95
6	7/1.04	1	1.4	8.2	120
10	7/1.35	1	1.4	9.1	169
16	7/1.70	1	1.4	10.2	236
25	7/2.14	1.2	1.4	11.9	350
35	19/1.53	1.2	1.4	13.1	455
50	19/1.78	1.4	1.4	14.8	595
70	19/2.14	1.4	1.4	16.6	813
95	19/2.52	1.6	1.5	19.2	1110
120	37/2.03	1.6	1.5	21	1358
150	37/2.25	1.8	1.6	23	1664
185	37/2.52	2	1.7	25.5	2075
240	61/2.25	2.2	1.8	29	2686
300	61/2.52	2.4	1.9	32	3328
400	61/2.85	2.6	2	36	4230
500	61/3.20	2.8	2.1	40	5285
630	127/2.52	2.8	2.2	44	6686
800	127/2.85	2.8	2.3	48	8410
1000	127/3.20	3	2.5	54	10545

Shandong New Luxing Cable Co.,Ltd

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

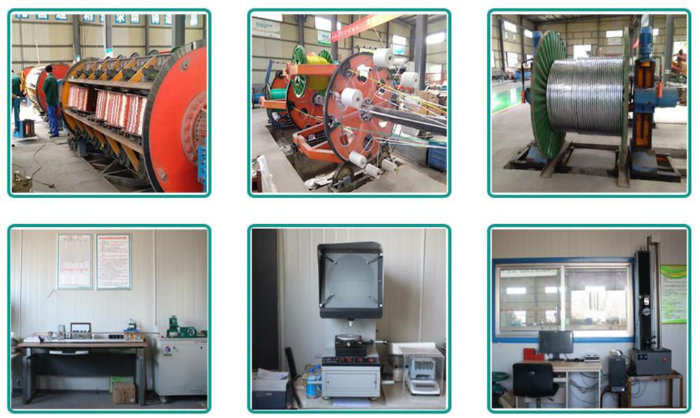

Strict Quality Test ( Raw Material & Finished Cable )

Certificates

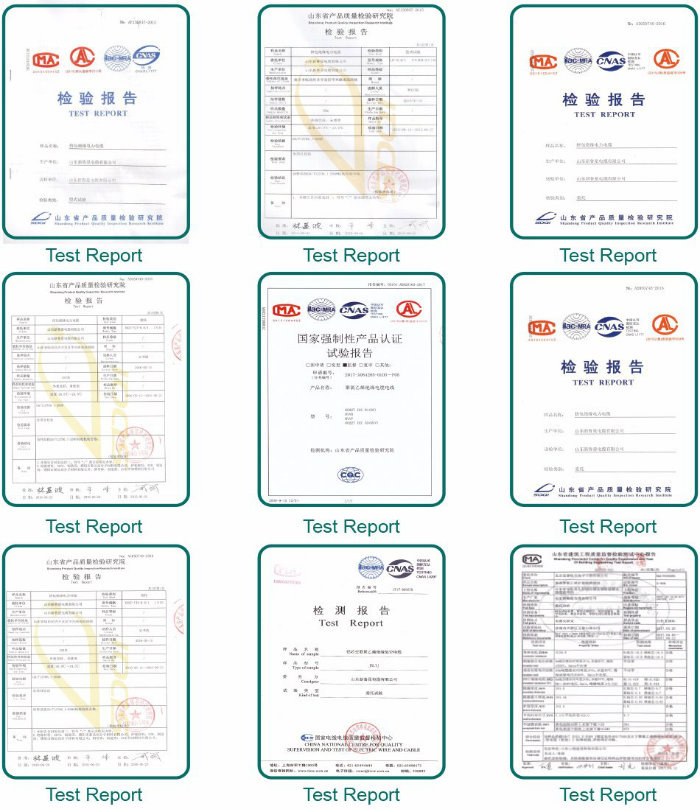

Type test report

Packaging & Shipping

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
