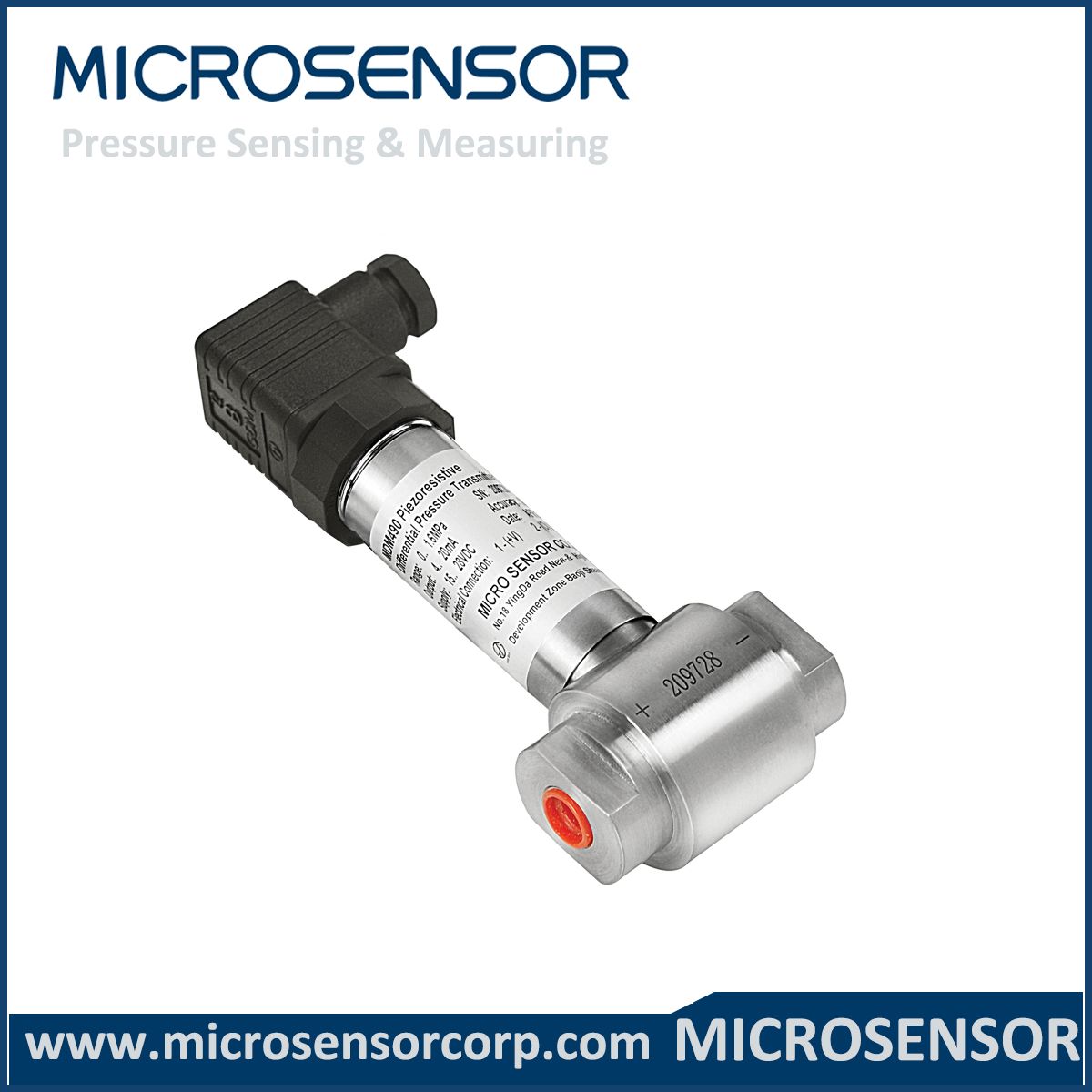

4~20mA DC Stable Differential Pressure Transmitter (MDM490)
Features:
(1) Full stainless steel construction, compact size, easy installation;
(2) Laser welding, full-sealed construction; Protection IP65;
(3) Using piezoresistive differential pressure sensor, 316L isolated diaphragm;
(4) Temperature compensation and aging, stable performance;
(5) Zero and span adjustable outside;
(6) Ex-proof version MDM490 conforms to GB3836.4 standard; Ex-proof certificate is approved;
(7) CCS, CE and ROHS certificates
Description:
MDM490 differential pressure transmitter uses piezoresistive differential pressure sensor as sensing element. Silicon oil is filled in between die and two diaphragms, when measured differential pressure is added on two diaphragm, the pressure could be transferred onto die through silicon oil.
Sensor die connects with amplifier circuit through wires, using semi-conductor's piezoresistive effect, transforming differential pressure signal into electric signal. The whole differential pressure tranmitter is used for differential pressure measurement of petroleum, chemi-industry, power station and hydrology, etc.
Specifications:| Range code | 0A | 02 | 03 | 07 | 08 | 09 | 10 | 12 | 13 |
| Unit | kPa | MPa |
| Measure range | 0~35 | 0~70 | 0~100 | 0~200 | 0~350 | 0~700 | 0~1 | 0~2 | 0~3.5 |
| +orvepressure | 70 | 150 | 200 | 400 | 700 | 1400 | 2.0 | 4.0 | 7.0 |
| -overpressure | 35 | 70 | 100 | 200 | 350 | 700 | 1.0 | 1.0 | 1.0 |
| Max.static pressure | ≤20MPa |
| | Min. | Typ. | Max. | Unit |
| Accuracy | 0~100kPa | | 0.25 | 0.5 | %FS |
| 200~3500kPa | | 0.25 | 0.5 |
| Zero Thermal error | 0~100kPa | | 0.75 | 1.25 | ±%FS, @25ºC |
| 200~3500kPa | | 0.5 | 0.75 |
| FS Thermal error | 0~100kPa | | 0.75 | 1.25 |
| 200~3500kPa | | 0.5 | 0.75 |
| Stability | ≤200kPa | 0.5 | %FS/year |
| ≤3500kPa | 0.2 |
| Static pressure effect | 0.05 | ±%FS, each 100kPa |
| Compensation temp. | 0~50 |
ºC
|
| Operation temp. | -10~80 |
| Storage temp. | -40~120 |
Electric performance:
1. Power supply: 2-wire 15~28VDC 3-wire 15~28VDC
2. Output signal: 2-wire 4~20m ADC 3-wire 0/1~5VDC 0·10.20m ADC
3. Pressure connection: G1/4 female thread
4. Electric connection: plug, 7.2mm cable
5. Respond time (10%~90%): ≤1ms

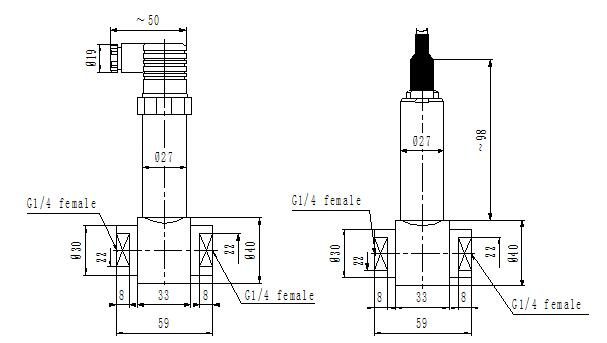

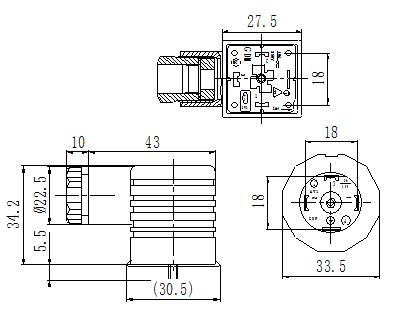

6. Insulation resistor: 100MΩ,50VDCOutline Construction:
Order Guide:| MDM490 | Piezoresistive Differential Pressure Transmitter |
| | | Code | Pressure range: kPa or MPa |
X[0~X]
kPa or MPa | Code | Pressure range
kPa | overpressurekPa | Code | Pressure
Range MPa | Overpressure MPa |
| + | - | + | - |
| 0A | 0~35 | 70 | 35 | 09 | 0~0.7 | 1.4 | 0.7 |
| 02 | 0~70 | 150 | 70 | 10 | 0~1.0 | 2.0 | 1.0 |
| 03 | 0~100 | 200 | 100 | 12 | 0~2.0 | 4.0 | 1.0 |
07
| 0~200 | 400 | 200 | 13 | 0~3.5 | 7.0 | 1.0 |
| 08 | 0~350 | 700 | 350 | | | | |
| | | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | Diaphragm | Pressure port | Housing |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | | | Code | Others |
| | C4 | G1/4 female |
| | B1 | Plug connection |
| | B2 | Cable connection Default length: 1.5m |
| | M3 | 31/2LCD digital indicator(only 4~20mADC) |
| | M4 | 31/2LED digital indicator (only 4~20mADC) |
| | i | Intrinsic safe version ExiaIICT6(>35kPa) /ExiaIIBT6Ga(<=35kPa) |
| | T | Ship-use |
| | | |
| MDM490 [0~100]kPa E 22 C4B2 the whole spec |
| | | | | | | | | | | | | | | | | | | | |
