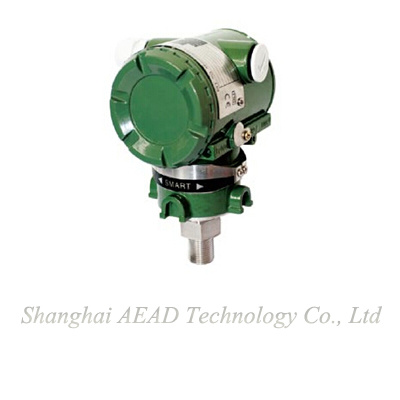

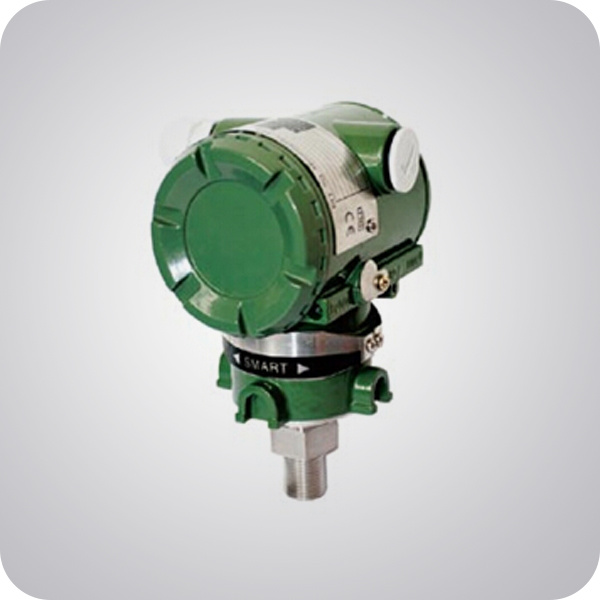

4-20mA Hart Protocol LCD Display Pressure Transmitter (A+E-930T)
| Price: |
US $ 170/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
A+E-930T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor: |
Tube/Flange |
| Accuracy: |
≤±0.1% |
| Size: |
15-6000mm |
Product Description
4-20mA Hart Protocol LCD Display Pressure Transmitter (A+E-930T)A+E-930TA Absolute Pressure Transmitter and A+E-930TG Pressure Transmitter
are used to measure the pressure of liquid, gas or steam, and convert it into 4~20mA
DC current signal output. A+E-930TA and A+E-930TG can communicate with HART
manual operator to complete setting and surveillance, etc.
Features and Benefits for Pressure Transmitter
1. Perfect figure
2. Excellent stability
3. Long operational life
4. Short reaction time
5. Extremely high overload limit
6. High resistance against electrical faults
7. Separate electronics and connection compartments
Area of Application for Pressure Transmitter
1. For higher viscous media, chemical industry,
2. foodstuff industry, and medias which are
3. compatible with stainless steel.
Technical data for Pressure Transmitter
1. Output Signal: 4~20mA DC+HART protocol (optional)
2. Supply voltage: 10.5-42V DC
3. Display Header: optional
4. Installation Bracket: optional
|
Model |
Specification codes |
Descriptions |
|
A+E-930T |
|
Smart transmitter |
|
Form |
G |
Gauge pressure |
|
A |
Absolute pressure |
Measuring Range |
4
5
6
7
8
9
0 |
0-10~40kPa
0-40~200kPa
0-200~700kPa
0-600~2000kPa
0-2000~10000kPa
0-10000~25000kPa
0-25000~60000kPa |
|
Output Signal: |
E
S |
4~20mA DC
4~20mA, HART Agreement Digital Communication |
Wetted material |
J1
J2
J4 |
[Process joints] [Diaphragm]
SUS316L SUS316L SUS316L Hastelloy C-276
SUS316L TAN |
Display Header |
D
E
N |
Digital display
Digital header with setting button,
No header |
Installation Bracket |
E
N |
2-inch tubing installation.
Without installation bracket |
|
Pipe Connection |
1
2
3
4
5
6 |
M20×1.5 external thread
1/2NPT external thread
1/2NPT internal thread
G1/2 internal thread
G1/2 external thread
Specially appointed |
Electrical Interfaces |
1
2
3 |
M20×1.5 internal thread
G1/2 internal thread
1/2NPT internal thread |
|
Anti-explosion |
d
i |
Flame-proof type dIIBT4
Intrinsic safety type ia II CT 6 |
