Competitive Price 4-20mA Hart Protocol Pressure Transmitter

Name: Competitive Price 4-20mA Hart Protocol Pressure Transmitter
Brand: all-electronics-online.com
SKU: 760231865
Availability: InStock
Rating: 4.5 (69 reviews)

Price:	US $ 196/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	A+E 930
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Pressure Transmitter
Output Signal:	4-20mA
Communication:	Hart Protocol
Supply Voltage:	10.5-42V DC
Stability:	Within 0.2% in 12 Months
Process Temperature:	-40 to 80 C
Accuracy:	0.2%
Material:	Ss 316 L
Ex-Proof:	Exia II CT6
Color:	Red or Blue
Measuring Medium:	Gas or Liquid
Certification:	CE, ISO

Product Description

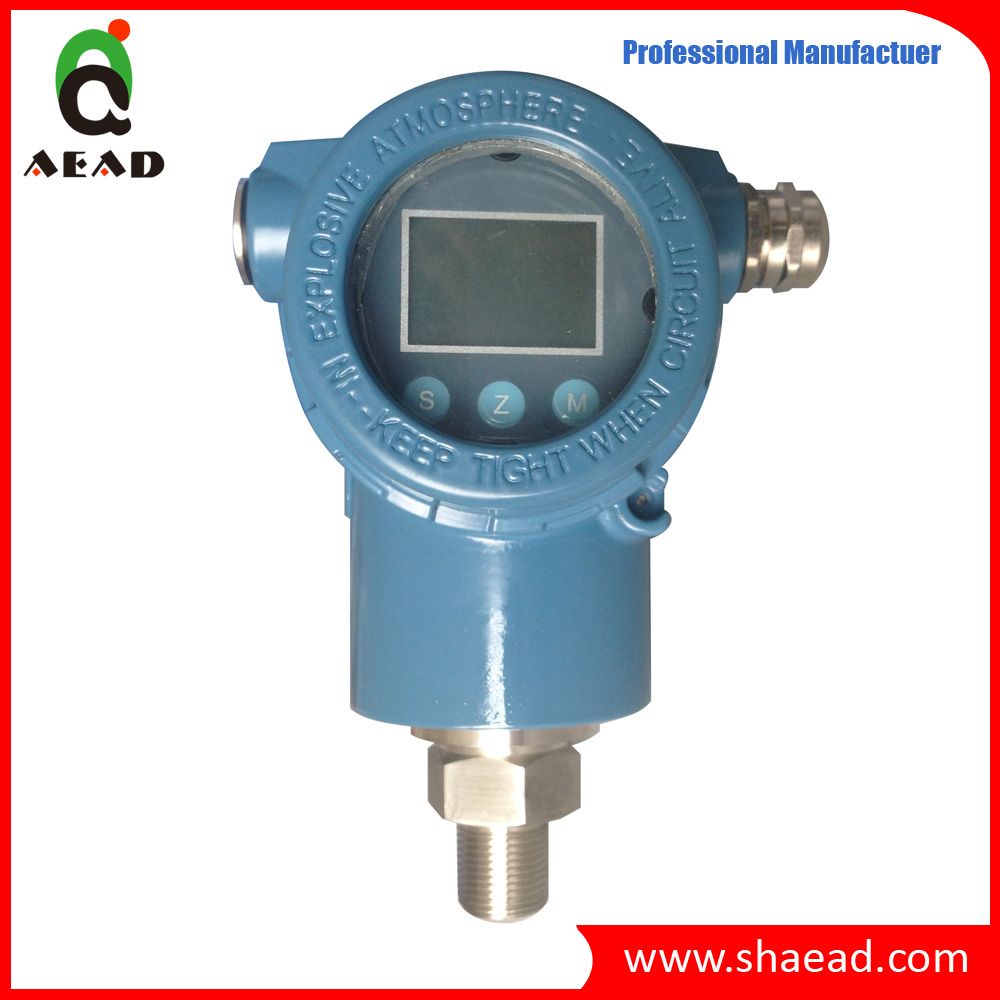

Competitive Price 4-20mA Hart Protocol Pressure Transmitter

This pressure transmitter adopts advanced integrated circuit and surface mounting technique. Compared with analog transmitter, the transmitter has more functions like communication, test and configuration, etc. It has improved standard accuracy and temperature compensation to enhance the quality.

Specifications

Applicable media	liquid, gas and steam
Output	two wire 4-20mA direct current signal with HART digital signal
Supply voltage	DC12-45V, generally DC24V
Load resistance	Max load 750Ω
Display	Pointer or digital LCD optional
Zeroing	With button on transmitter or by HART operator
Alarm	Self-diagnostic program
Process temperature	-40 to 80°C for sensor, -40 to 85ºC for circuit
Ambient temperature	-40 to 55ºC
Starting time	< 2s
Damping	0-16s, resolution 0.1s
Accuracy	0.5%
Stability	Within 0.2% in 12 months
Temperature impact	< 0.3% full scale
Static pressure impact	Revised
Vibration impact	0.1% full scale
Power impact	< 0.005%
Material	SS316 or bespoke
Cable inlet	M20*1.5 or 1/2NPT
Net weight	3.5kg
Protection	IP65
Ex-proof	Exd II BT4 or Exia II CT6
Measuring range	1	0~35kPa
	2	0~100kPa
	3	0~200kPa
	4	0~350kPa
	5	0~700kPa
	6	0~2.1MPa
	7	0~3.5MPa
	8	0~7MPa
	9	0~21MPa
	0	0~35MPa

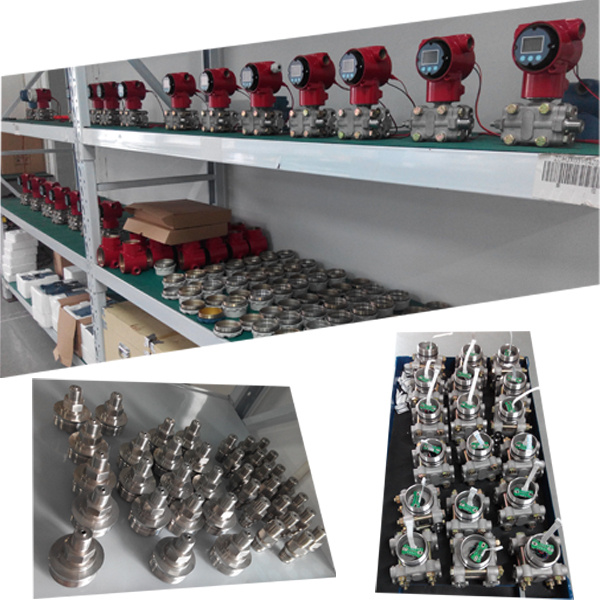

Production

Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.

AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.

The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.

AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.

The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
