Cheap Price Low Cost Analog Pressure Transmitter
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
A+E 970 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Pressure Transmitter |
| Output Signal: |
4-20mA |
| Supply Voltage: |
10.5-42V DC |
| Range: |
0-35MPa |
| LCD Display: |
N/a |
| Operating Temperature: |
-10 C~80 C |
| Load Resistance: |
< 750 Ohm |
| Protection: |
IP65 |
| Connection: |
Customized |
| Diaphragm: |
Ss316L |
Product Description

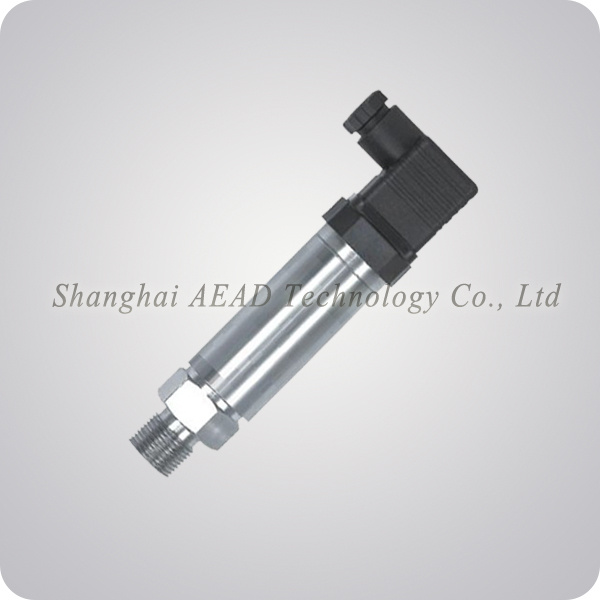

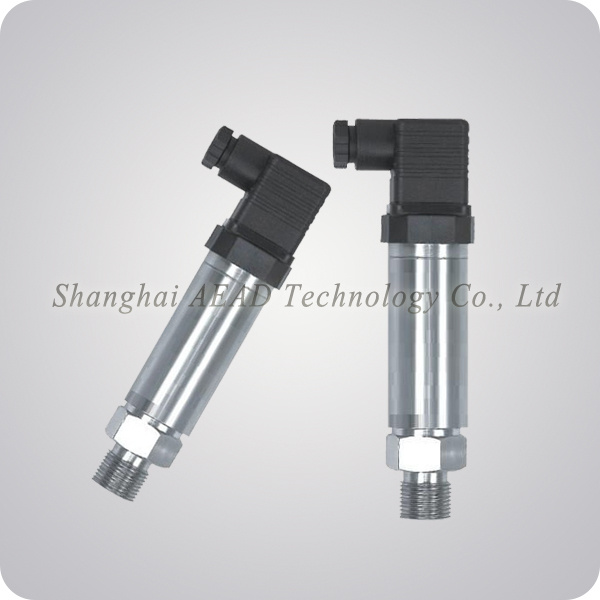

Cheap Price Low Cost Analog Pressure Transmitter A+E-970
This pressure transmitter could be widely used in petroleum, chemical industry, metallurgy, electricity, light industry, construction materials, scientific research, etc. to realize pressure measurement of flow element.
Technical Parameters| Measuring Media | Liquid, gas and steam compatible with SS316L |
| Measuring Range | -95KPa to 60MPa |
| Output | Two-wire 4-20mA DC |
| Accuracy | 0.25%, 0.5% |
| Temperature Coefficient at Zero Point | < 0.02%/ºC |
| Temperature Coefficient at Full Scale Point | < 0.02%/ºC |
| Supply Voltage | 24VDC |
| Protection | IP65 |
| Ex-proof | Exia II CT5 |
| Associated Apparatus | EX231B guard grating |
| Temperature | -10 to 80ºC for working, -40 to 125ºC for stock |
| Overload | 2 times of full scale |
| Relative Humidity | <95% |
| Load Resistance | <750Ω |
| Installation Position | No requirement |
Physical Performance| Diaphragm | SS316L |
| Contacting Material | Stainless steel |
| O Ring | Nitrile rubber buna |
| Painting | Epoxy resin |
| Process Connection | 1/2NPT external thread, M20*1.5 external thread |
| Cable Inlet | 8 |
| Weight | Estimated 700g |
Model Selection| Model | A+E 970 | Description |
| Category | GP | Gauge pressure transmitter |
| AP | Absolute pressure transmitter |
| SP | Sealing gauge pressure transmitter |
| Form | U | Universal type |
| S | Compact type |
| Meas. Range | 1 | 0~35kPa |
| 2 | 0~100kPa |
| 3 | 0~200kPa |
| 4 | 0~350kPa |
| 5 | 0~700kPa |
| 6 | 0~2.1MPa |
| 7 | 0~3.5MPa |
| 8 | 0~7MPa |
| 9 | 0~21MPa |
| 0 | 0~35MPa |
| Output | A | 4-20mA |
| S | 4-20mA, HART protocol |
| Accuracy | 1 | 0.25%F.S |
| 2 | 0.5%F.S |
| Display | M1 | 100% scale |
| M2 | LED display |
| M3 | LCD display |
| M4 | No display |
| Process Connection | 1 | M20*1.5 external thread |
| 2 | 1/2NPT external thread |
| 3 | 1/2NPT internal thread |
| 4 | G1/2 internal thread |
| 5 | G1/2 external thread |
| 6 | customized |
| Electrical Connection | 1 | M20*1.5 internal thread |
| 2 | G1/2 internal thread |
| 3 | 1/2NPT internal thread |
| 4 | customized |
| Ex-proof | N | N/A |
| I | Intrinsically safety ia II Ct6 |
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
