4~20mA Output IP68 Protection Level Transmitter Mpm489W

Name: 4~20mA Output IP68 Protection Level Transmitter Mpm489W
Brand: all-electronics-online.com
SKU: 741113365
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	0~1...200m
Accuracy:	0.5%Fs
Key Words:	IP68 Level Transmitter
Output:	4~20mA ADC
Explosion-Proof:	Intrinsic Safe
Pressure Type:	Level
Operation Temperature:	-10 ~80 C
Over Pressure:	2 Times Fs
Power Supply:	12~28 VDC
Diaphragm:	Ss316L
Accuracy Grade:	0.5%Fs
Certification:	RoHS

Product Description

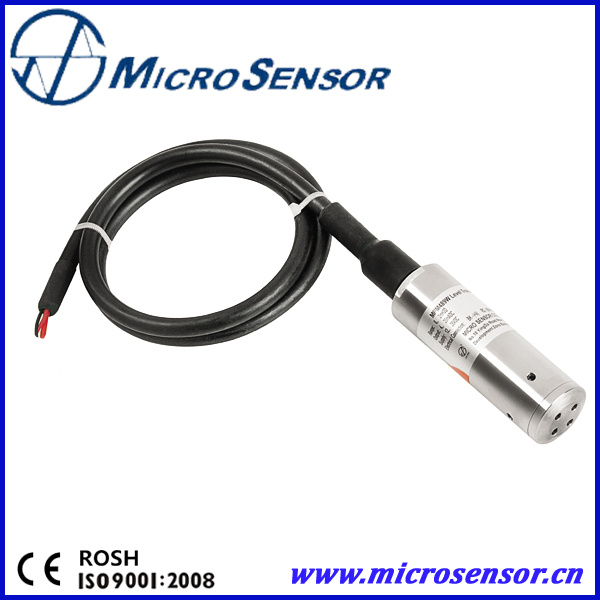

4~20mA Output IP68 Protection Level Transmitter MPM489W

Features:

Isolated construction
IP68
Reliable, stable
Durable

Specification

Range(FS)	1 2 5 10 20 50 100 200mH₂O
Overpressure	2 times FS
Accuracy	0.5%FS
Stability	range>20mH₂O, ±0.2%FS/year
	range≤20mH₂O, 20mmH₂O
Thermal drift		zero	span
	range>10mH₂O	0.02%FS/ºC	0.05%FS/ºC
	range≤10mH₂O	0.05%FS/ºC	0.05%FS/ºC
Application temp. range	-10~80ºC
Storage temp. range	-40~100ºC
Power supply	12~28VDC
Output signal	4~20mADC(2-wire)
Load (Ω)	<(Uv-12)/0.02

Constructions:

Housing: stainless steel 1Cr18Ni9Ti
O-ring: viton
Diaphragm: SS316L
Cable:7.5mm polyethylene

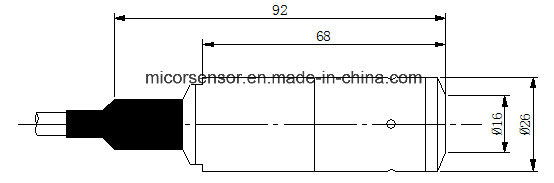

Ourline Dimension

Electric Connection

Order information:

MPM489W

Level Transmitter

Range

Pressure range: 0~1200mH2O

[0~XmH₂O] L

X:actual measurement range L: cable length suggested L-X=(1~2)m

Code

Output signal

4~20mADC

Code

Construction material

Diaphragm

Port

Housing

SS 316L

Tantalum

Code

Others

M₁

0~100% indicator

Aluminum connection box with display

Aluminum connection box without display

MS200 water-proof connection box (default)

PD140 lightening-proof protection device

Intrinsic safe version ExiaIICT6

C₁

M20×1.5 male

C₃

G1/2 male

F₁

Fixed flange

MPM489W [0~2mH₂O]5 E 22 Yc the whole spec
