| Prod Model: |
GPS Navigator |
| Use: |
Automotive&Hand Held |
| Model: |
Integration Type |
| Screen Size: |
5.0" |
Product Description

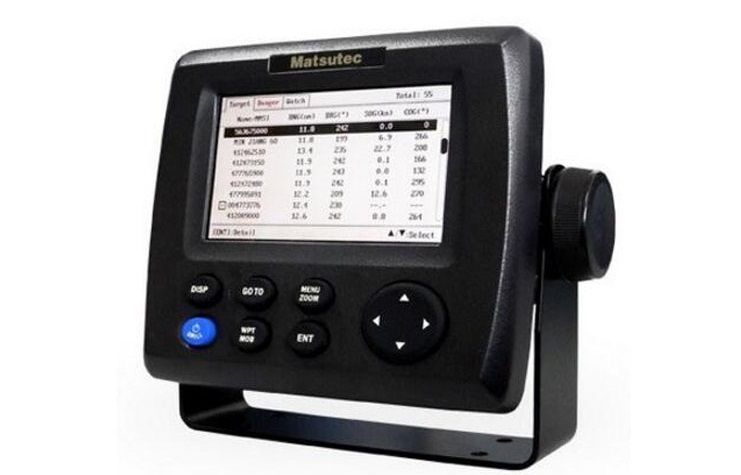

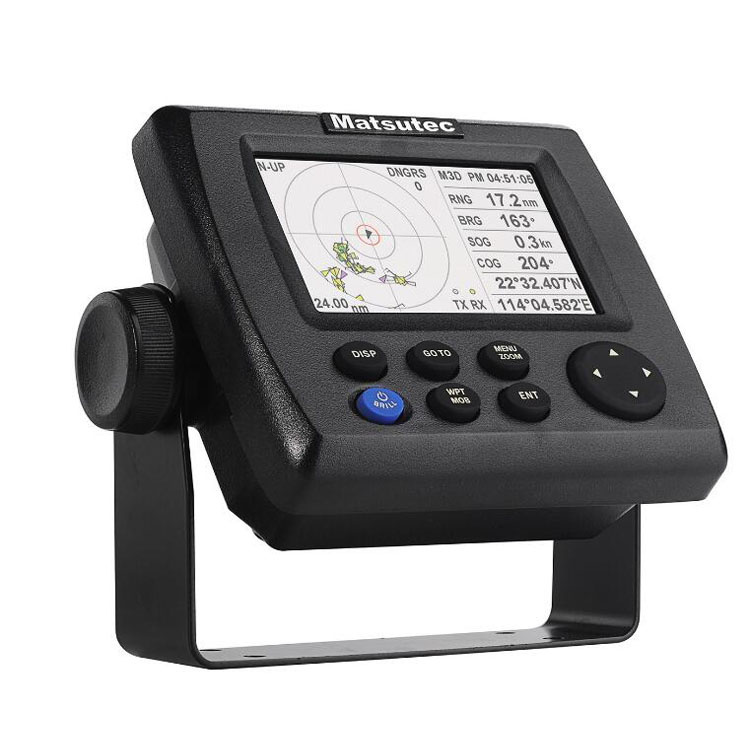

4.3" LCD AIS transponder combo with GPS navigator Features
To AIS
1. Detail Target list and Radar overview
2. Watching disaply to monitor important subject, example: Fihsing net buoy, Friend ship etc
3. External Alarm (Buzzer)
4. Low cost, reduced size and easy installation make the HP-33A ideal to meet your budgets and demands of owners and vessel operators
To GPS
1. 4.3" Sunlight Viewvable color LCD (Brightness: 500 cd)
2. GOTO track navigation
3. Stores up to 10,000 marks/ waypoints, 100 routes and 3,000 track points
4. Delicated Man Over Board Button (MOB)
5. Support NMEA 0183 ver 2.0
6. 7 display modes available, including 2 user-customized modes
7. SBAS capable for better measurement
Equipment list ( standard):
1. Dispaly unit HP-33
2. Antenna unit HA-017 with cable 10m
3. Power canle, 2m
4. Standard spare parts and installation material
5. Operator manual
SpecificationsPlotter Characteristics
1. Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint.
2. Route Memory: waypoint up to 169 points each, plus MOB and Track Navigator or Goto track modes
3. Tracks: 21,000 point automatic track log; 10 saved track (up to 2100 track points each) let you retrace your path in both derections
4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.
5. PALLETE
- Normal
- Daylight: Exposed to sunlight
- Night: In dark environment
- NOAA: Paper chart color
6. Tides: Tide Data
7. Projection: Mercator projection
8. Position format: Lat/Lon
9. Base Map: Built-in ONWA K-Chart
10. External Map: SD cards slot for user settings
11. User data storage: Internal backup of user settings, or external SD-card
12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm
13. 0.01nm to 1,000nm
14. Nav Data Input/Output:
- Input:
$--DBT, $--DPT, $--GGA, $--GLL, $--MTW, $--RMA, $--RMB, $--RMC, $--VHW, $--VTG, $--ZDA
- Output:
$--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA, $--WPL, $--HDG
- Output for autopilot:
$--AAM, $--APB, $--BOD, $--VTG
15. PERSPECTIVE VIEW: On/off
