| Prod Model: |
5.6 |
| Use: |
Automotive&Hand Held |
| Model: |
Integration Type |
| Screen Size: |
5.0" |
Product Description

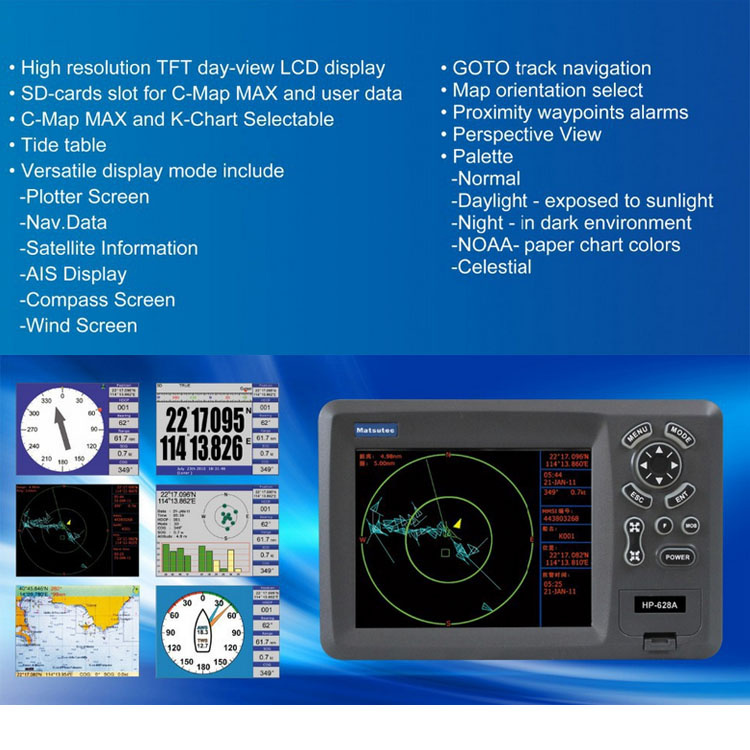

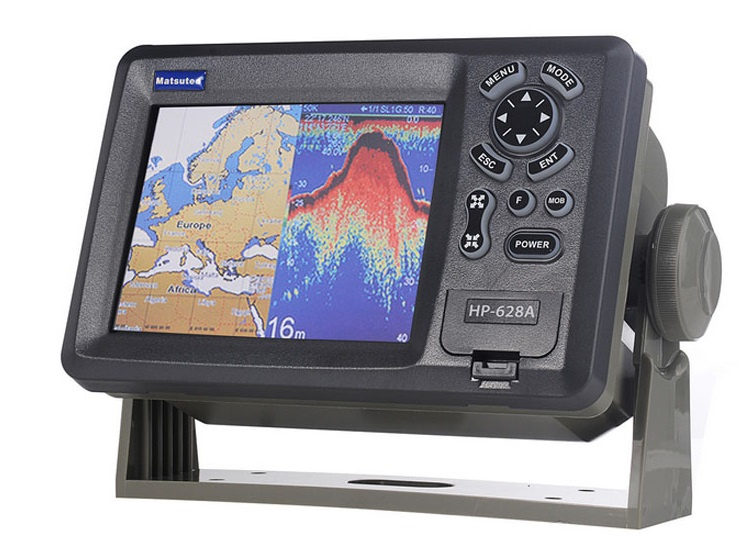

Marine Navigator HP-628A 5.6" colorized liquid crystal GPS receiverSPECIFICATIONS
1. Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint.
2. Route Memory: waypoint up to 169 points each, plus MOB and Track Navigator or Goto track modes
3. Tracks: 21,000 point automatic track log; 10 saved track (up to 2100 track points each) let you retrace your path in both derections
4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.
5. PALLETE
- Normal
- Daylight: Exposed to sunlight
- Night: In dark environment
- NOAA: Paper chart color
6. Tides: Tide Data
7. Projection: Mercator projection
8. Position format: Lat/Lon
9. Base Map: Built-in ONWA K-Chart
10. External Map: SD cards slot for user settings
11. User data storage: Internal backup of user settings, or external SD-card
12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm
13. 0.01nm to 1,000nm
14. Nav Data Input/Output:
- Input
$--DBT, $--DPT, $--GGA, $--GLL, $--MTW, $--RMA, $--RMB, $--RMC, $--VHW, $--VTG, $--ZDA
- Output:
$--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA, $--WPL, $--HDG
- Output for autopilot:
$--AAM, $--APB, $--BOD, $--VTG
15. PERSPECTIVE VIEW: On/off
GPS Receiver Characteristics
1. Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position
2. Acquisition: Cold start: 27 seconds average
Warm start: 27 seconds average
Hot start: 1 seconds average
3. Update rate: 1/second, continuous
4. Accuracy: Position: <2.5 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A
Time: ±100ns synchronized to GPS time
5. Dynamics: Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max
6. Datum: WGS 84 & Others
7. Interface: NMEA 0183 Input , RS232 output
8. Antenna: HA-017
AIS Interface
Data input: NMEA 0183, RS232
Baud rate: 38400
Power Supply: 10.5 to 35VDC, current drain < 500mA at 12V
Physical
1. Size: 228mm(H) × 138mm(W) × 79mm(D)
2. Weight: 0.9kg
3. Display: 5.6-inches color TFT day-view LCD, 640 x 480 pixels
4. Waterproofing: Display unit: IPX5; Antenna unit: IPX6
5. Temperature: -15°C to + 55°C (Display unit); -25°C to + 70°C (GPS antenna)
Company Information
Sichuan Hongjun Science and Technology Co., Ltd. is the chinese leading one-stop provider of spare parts for marine products! Based on its extensive network , we are able to provide the most satisfying one-stop service for its customers!
Related Products
1. Delivery time:
- We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
- Shipping notice/ insurance to you as soon as your order is shipped.
2. After sales service:
- After receive the goods, We accept ur feedback at first time.
- We could provide installation guide, if you have need, we could give you global service.
- Our Sales are 24-hours online for ur request
3. Professional service:
- We value every inquiry sent to us, ensure quick competitive response.
- We supply superior qualityand with competitve price.
- We are a sales team, with all techinical support from engineer team.
Please do not hesitate to contact with us if you need anything!
Sichuan Hongjun Science and Technology Co., Ltd. is the Chinese leading one-stop supplier of spare parts for heavy machinery, marine and passenger cars! Based on its extensive network, Hongjun Group Co., Ltd. is able to provide the most satisfying one-stop service for its customers!
1. Heavy Machinery
We provide spare parts for famous brands like LIUGONG, SDLG, LOVOL, XGMA, XCMG, SEM, LONKING, CG, WEICHAI Power, Shangchai, Yuchai, Cummins, ZF, CAT, KOMATSU, HYUNDAI, HITACHI, TEREX, KOBELCO...

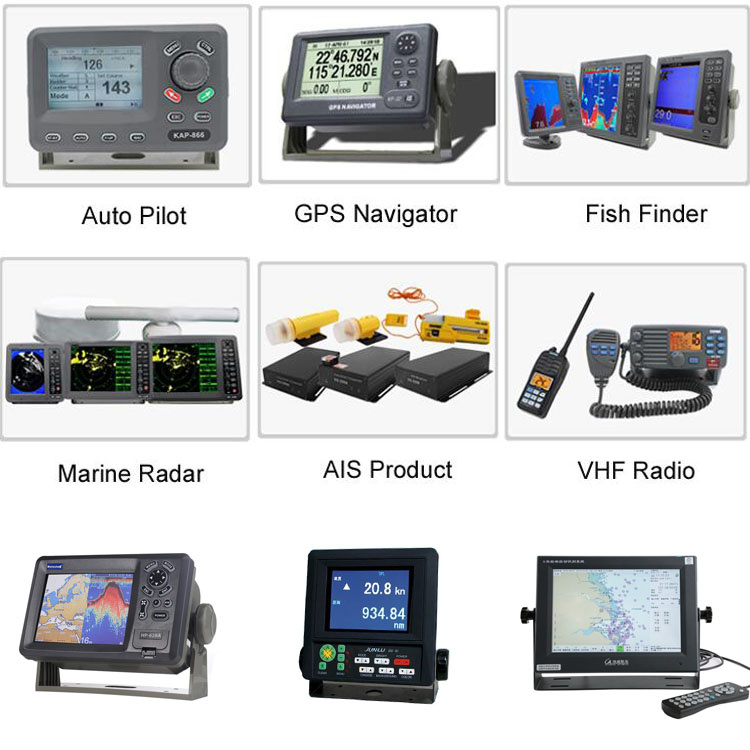

2. Marine Parts
