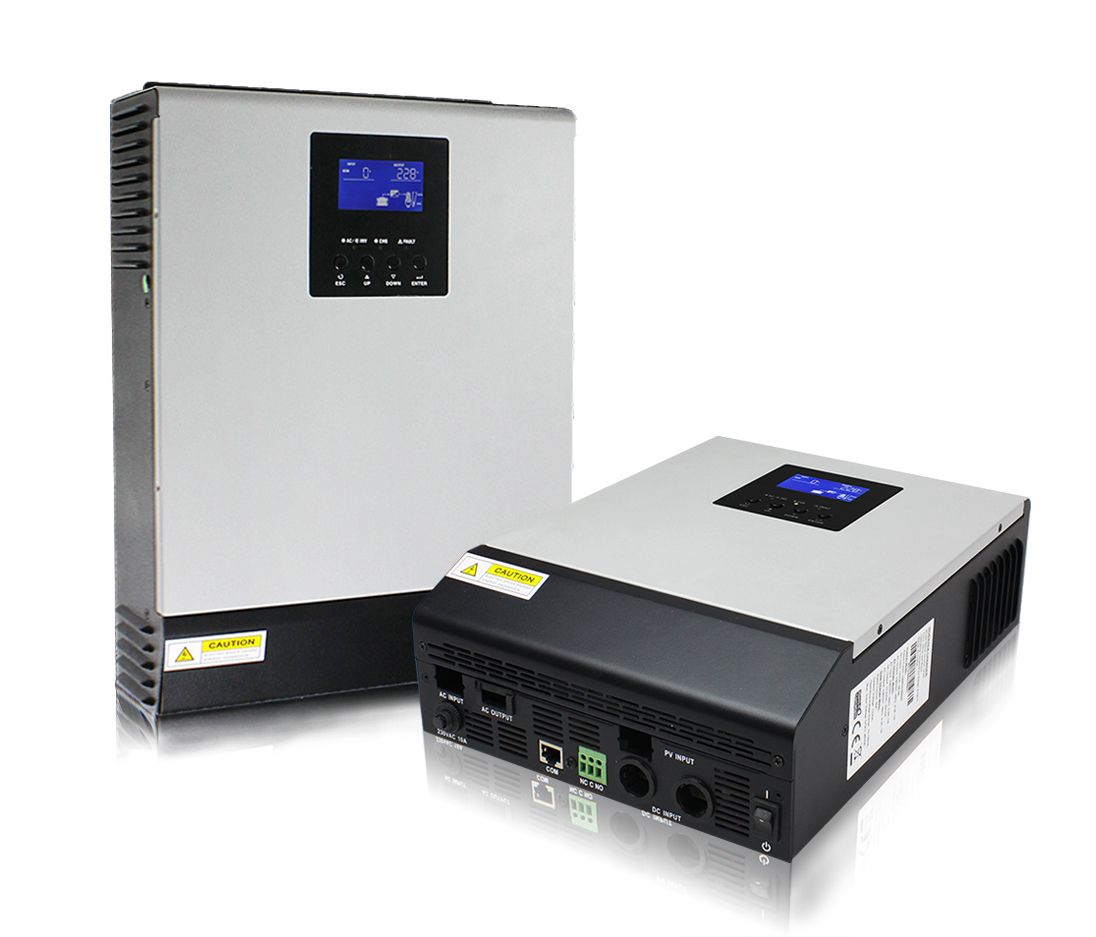

4~5kVA Multi-Functional Pure Sine Wave Inverter

Name: 4~5kVA Multi-Functional Pure Sine Wave Inverter
Brand: all-electronics-online.com
SKU: 824154395
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PSJ Series
Input Voltage:	230VAC
Efficiency:	>93%
Restart:	Auto Restart While AC Is Recovering
Parallel Operation:	Yes
Display:	LCD
Protection:	Overload and Short Circuit Protection
Usage:	Home, Office, Farm and Industrial
Transfer Time:	10ms
Output Frequency:	50Hz/60Hz
Warranty:	2 Years

Product Description

Features:
Pure sine wave inverter.
Selectable input voltage range for home apliances and personal computers.
Selectable charging current based on applications.
Configurable AC/Solar input priority via LCD setting.
Compatible to mains voltage or generator power.
Parallel operation with up to 6 units only available for 4KVA/5KVA.
Auto restart while AC is recovering.
Overload and short circuit potection.
Smart battery charger design for optimized battery performance.
Cold start function.
Optional Remote Control Panel available.

Model PSJ4000-48 PSJ5000-48
INPUT POWER 4000VA/3200W 5000VA/4200W
INPUT Voltage 230VAC Selectable Voltage Range 170-280VAC(For Personal computers);90-280VAC(For Home) Frequency Range 50Hz/60Hz(Auto sensing)
Output AC Voltage Regulation 230VAC±5% (Batt.Mode) Surge Power 8000VA Efficiency(Peak) 93% Transfer Time 10ms(For Personal Computers);20ms(For Home Appliances) Waveform Pure sine wave
BATTERY Battery Voltage 48VDC Floating Charge Voltage 54VDC Overcharge Protection 60VDC
SOLAR Maximum PV Array 105VDC CHARGER& Open Circuit Voltage AC CHARGER Standby Power Consumption 2W Maximum Solar 50A Charge Current Maximum AC 60A Charge Current Maximum Charge Current 110A
PHYSICAL Dimension(LWH) 120295468mm Net Weight(kg) 9.8kg
OPERATING Humidity 5% to 95% Relative Humidity(Non-condensing) ENVIRONMENT Operating Temperature 0-55 Storage Temperature -15-60

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
