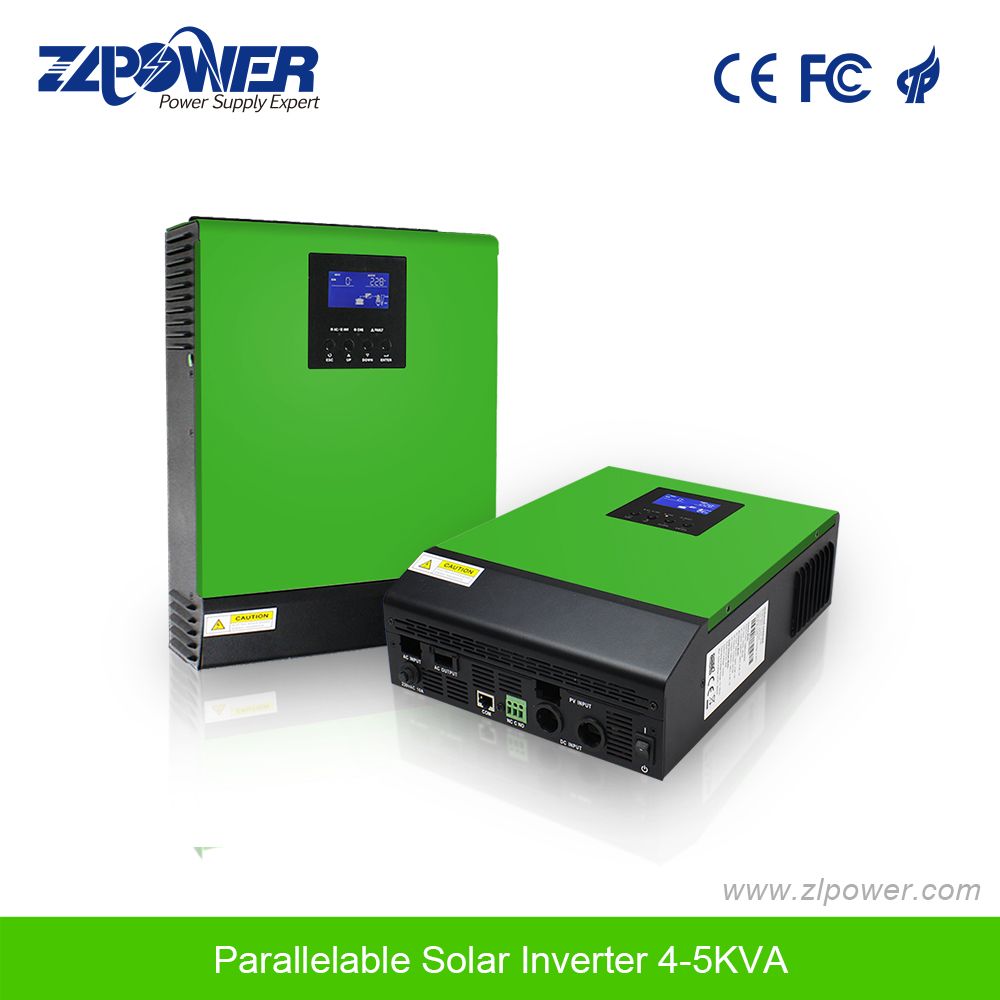

4~5kVA Pure Sine Wave Inverter with MPPT Solar Charger Controller
| Price: |
US $ 378/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PSK Series |
| Input Voltage: |
230VAC |
| Transfer Time: |
10ms |
| Full Load Time: |
93% |
| Restart: |
Auto Restart While AC Is Recovering |
| Parallel Operation: |
Yes |
| Warranty: |
2 Years |
| Appliances: |
Home, Office, Farm, Indusrial |
| Color: |
Blue |
| Frequency: |
50Hz/60Hz |
| Display: |
LCD |
Product Description
PSK is equipped with MPPT solar charge controller to maxize and regulate DC power from the solar array for charging the battery bank. Transfermoerless design provides reliable power conversion in compact size. Besides, it's worry-fee to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery charges.
Features:
Pure sine wave inverter.
Built-in MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers.
Selectable charging current based on applications.
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Parallel operation with up to 6 units only available for 4KVA/5KVA
Optional Remote Control Panel available.
Specifications:
| Model Parameters | PSK4000-48 | PSK5000-48 |
| AC Input | Nominal Power | 4000VA/3200W | 5000VA/4000W |
| Nominal input Voltage | 230VAC |
| Low Line Disconnect | 170Vac±4%(Normal); 90Vac±4%(Wide&Gen) |
| Low Line Re-connect | 180Vac±4%(Normal); 100Vac±4%(Wide&Gen) |
| High Line Disconnect | 280Vac±4%(Normal);280Vac±4%(Wide&Gen) |
| High Line Re-connect | 275Vac±4%(Normal);275Vac±4%(Wide&Gen) |
| MAX AC input Voltage | Max:300VAC |
| Frequency | 50Hz/60Hz(Auto detection) |
| AC Output | AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Output Voltage Waveform | Pure sine wave |
| Surge Power | 8000VA | 10000VA |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Full load efficiency | 93% |
| Solar Charger & Ac Charger | Maximun PV Array Power | 4000W |
| MPPT Range @ Operating Voltage | 60VDC ~115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 140A |
| Standby Power Consumption | 2 W |
| Efficiency | 98% |
| Battery & Ac Charger | Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 60 VDC |
General
Specifications | Operating Temperature Range | 0ºC to 55ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Dimension(L*W*H) | 120*295*468mm |
| Net Weight(kg) | 11.0kg |
