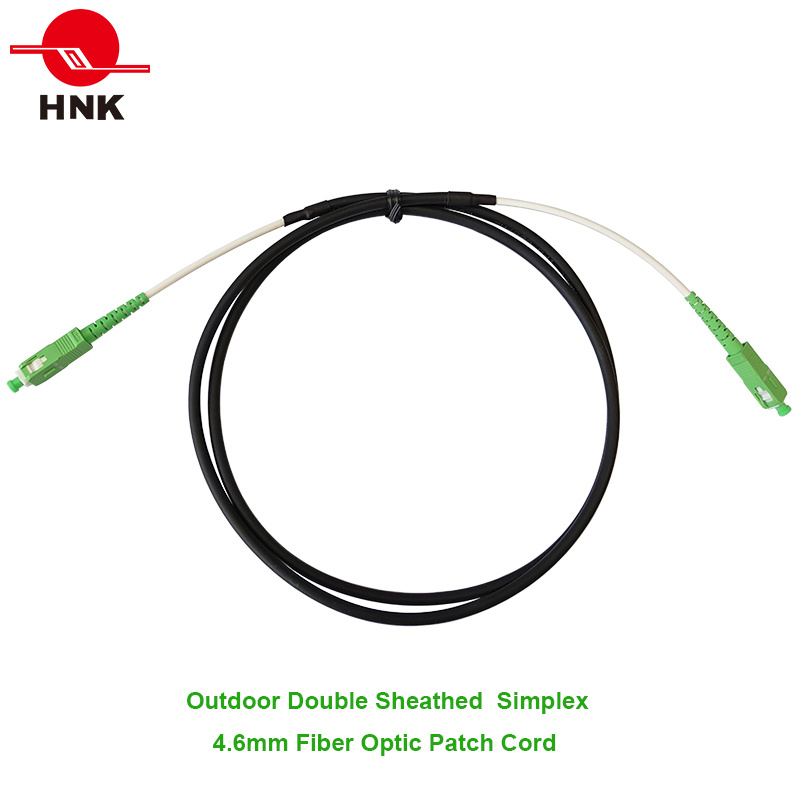

4.6mm Simplex Double Jackets Outdoor Fiber Optic Patch Cord

Prod Model:	DSPC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Jacket Color:	Black
Inner Jacket Color:	White
Strength Member:	Aramid Yarn
Outer Jacket Diameter(mm):	4.6 ±0.1
Inner Jacket Diameter(mm):	3.0 ±0.1
Connector:	According to Requirement
Application:	Communication
Certification:	ISO9001
Type:	Singlemode or Multimode
Connection Structure:	Sc, FC, St, LC, Mu, E2000, DIN
Material Shape:	Round
Allowed Tensile Strength:	150n ~ 400n
Core:	Simplex
Sheath Material:	LSZH

Product Description

From a single 900um optical fiber with aramid yarn strength members and double LSZH jackets. The cable
consist of a 900um multimode or singlemode optical fiber in a 3.0mm LSZH inner jacket with aramid yarn
strength members. Aramid yarn non metallic strength members and final 4.6 mm LSZH outdoor jacket.
Ideal for use in internal/external high electro-magnetic interferences FTTH applications horizontal, riser and duct.

Standards Compliance
.  Telcordia GR-326-CORE Generic requirements for Single mode
   optical connectors and Jumper assemblies.
.  IEC 874-1 Generic specification for fiber optic connectors and cables
.  Comprehensive wiring standard: ANSI/TIA-568-C.3,
   ISO/IEC 11801 2nd Ed., CENELEC EN 50173,
.  Cable flame resistant rate:OFN or IEC60332-3 standard
.  RoHS Compliant Directive 2011/65/EU

Features
.  Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
.  All dielectric construction with aramid yarn for physical protection and mechanical strength.
.  Double LSZH sheath cable gives more excellent tensile strength,
    mechanical, rodent, ultraviolet and environmental protection.

Mechanical, Environmental & Material Data

Fiber Mode	Singlemode or Multimode
Fiber count	1
Connector Style	SC, FC, ST, LC, MU, E2000, DIN
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Lengths	Custom Lengths
Jacket Material	LSZH
Outer Jacket Color	Black
Inner Jacket Color	White
Strength Member	Aramid Yarn
Outer Jacket Diameter(mm)	4.6 ±0.1
Inner Jacket Diameter(mm)	3.0 ±0.1
Crush(N/100mm)	1000
Maximum Tensile Load(Long term)	150N
Maximum Tensile Load(Short term)	400N
Storage Temperature(°C)	-20°C to 60°C
Installation Temperature(°C)	-5°C to 50°C
Operating Temperature(°C)	-20°C to 60°C

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.2dB Max. (0.15dB typ.)			0.3dB Max. (0.25dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	PC≥35dB
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)			0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N			≥98N

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: DSPC-AA-BB-CD

Ordering Guide

AA	BB	C	D
Connector Type	Connector Type	Fiber Type	Length
FP,SP,SA,LP	FP,SP,SA,LP	OM1=62.5/125 OM1,  OM2=50/125 OM2 OM3=50/125 OM3,    OM4=50/125 OM4 G652D=9/125 G652D,  G657A=9/125 G657A	0015=1.5M 0200=20M 1000=100M

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC
MU	MU	DN	DIN	MT	MTRJ	E2	E2000

Ordering Sample

Part Number	Description
DSPC-SP-LA-G657A1000	SC/PC-LC/APC Outdoor Double Sheathed Simplex Fiber Optic Patch Cord, Singlemode G657A, Simplex, 100M.
