4 Channel RGBW Wall Controller

Name: 4 Channel RGBW Wall Controller
Brand: all-electronics-online.com
SKU: 802113385
Availability: InStock
Rating: 5 (70 reviews)

Price:	US $ 7.4-7.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-TOUCH-MB04
Working Temperature:	-20 - 60
Net Weight:	128g
Gross Weight:	187g
Connection Mode:	Common Anode
Static Power Consumption:	<1W
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Material:	Plastic
Type:	Touch LED Controlle
Voltage:	DC12V~24V

Product Description

Basic Info

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	louita	Model Number:	LYD-TOUCH-MB04
Type:	Remote Control, touch led controller	Max. Load Power:	Output 384W	Voltage:	DC12V-24V
Output channnels:	4 channels	Output current:	<4A*4	Output power:	12V<192w 24V<384w
Pewer consumption:	<1w	Connection mode:	common mde

Product Description

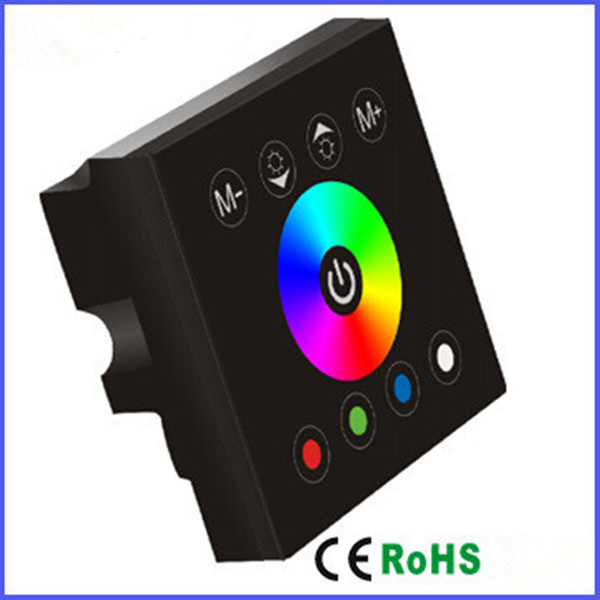

Touch Panel is a new upmarket controller which is newly developed by our factory. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip,increases the touch sensitivity, reduces wrong trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light etc., it has many advantages such as convenient to connect, easy to use ,etc. It can realize jump change, gradually change, strobe and other effects based on application requirement.

Technical Parameters
working temperature: -20-60 ºC
supply voltage: DC12-24
output: 4 channels
connection mode: common anode
external dimension: L86 Χ W86Χ H37mm
packing size: L115 Χ W110 Χ H56 mm
Net weight:128g
Gross weight:187g
static power consumption:<1W
output current:<4A(each channel)
output power:12V:<192W, 24V:<384W
Standard change is shown in the below table:

Mode number	Function	Mode number	Function
1	white	15	Blue strobe
2	yellow	16	Yellow strobe
3	purple	17	Purple strobe
4	cyan	18	Cyan strobe
5	3-color Jump	19	Cool white strobe
6	3-color Fade	20	Red explosion-flashing
7	3-color Strobe	21	Green explosion-flashing
8	7-color Jump	22	Blue explosion-flashing
9	7-color Fade	23	Red blue jump change
10	7-color Strobe	24	Green blue jump change
11	Cool white fade in & out	25	Red green jump change
12	Warm white fade in & out	26	Warm white explosion-flashing
13	Red strobe	27	Circulation mode (5-26)
14	Green strobe
