4 Core Optical Fiber Cable GYTA53

Prod Model:	GYTA53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	GYTA53 Fiber Optic Cable
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Orange,Green , Brown,Red etc
Central Strength Member:	Steel Wire or FRP
Double Armour Material:	Corrugated Steel and Aluminium Tape
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Direct-Burial and Duct
Application:	Communication
Certification:	Reach,Tlc,etc
Type:	GYTA53
Connection Structure:	Optical Fiber Cable
Allowed Lateral Pressure:	Short Term 3000n; Long Term 1000n
Allowed Tensile Strength:	Short Term 3000n; Long Term 1000n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

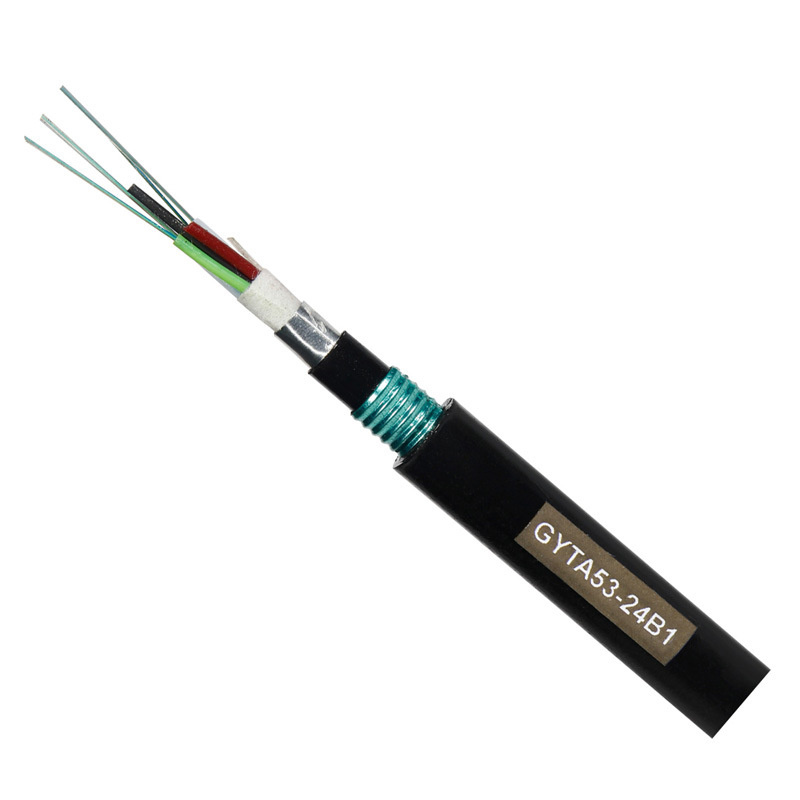

4 Core Optical Fiber Cable GYTA53





Packaging & Delivery:
Packaging Details: in fumigated wooden drum or polywooden drum
Delivery Time: within one week

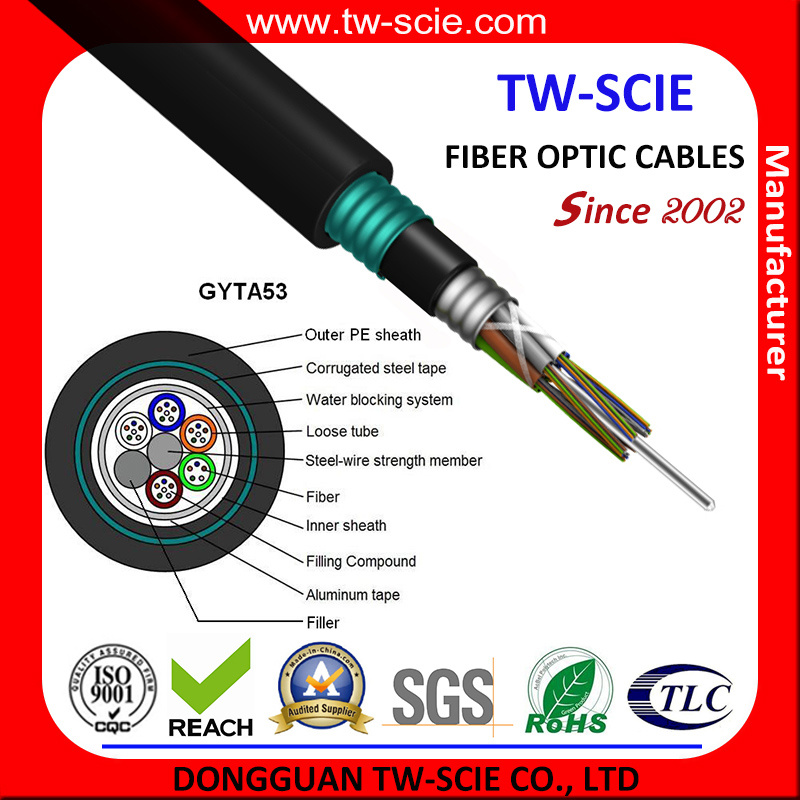

Description:

1.250μm Coloured Fiber

2.PBT loose Tube

3.Tube Filling Compound(Gel)

4.Steel wire central strength menber

5.PSP corrugated steel tape armored

6.PE/LSZH outer Sheath

Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling

Optical Characteristics:

Fiber type	G.652D(9/125)
Loose tube	PBT Loose Tube
Attenuation@1310nm	≤ 0.36 dB/km
Attenuation@1550nm	≤ 0.22 dB/km
Temperature range	Transport/Operating -40~+70°C

Optical Fiber Technical data:


Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620

Standards:

GYTA53 cable complies with standard YD/T901-2001 as well as IEC60794-1
Storage/Operating Temperature: -40°C to + 70°C


Features & Application:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible  bending radius
Long haul / backbone application

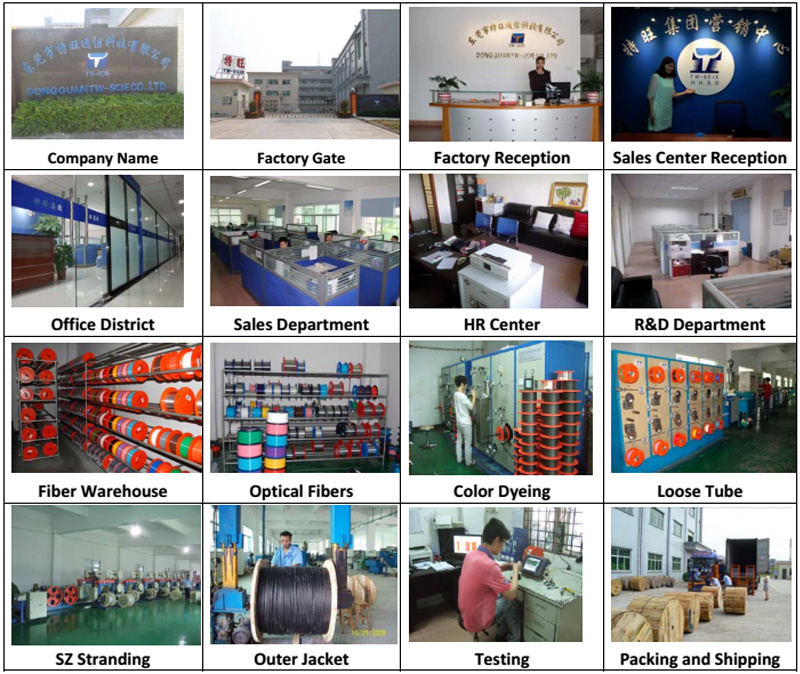

Our Company:
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

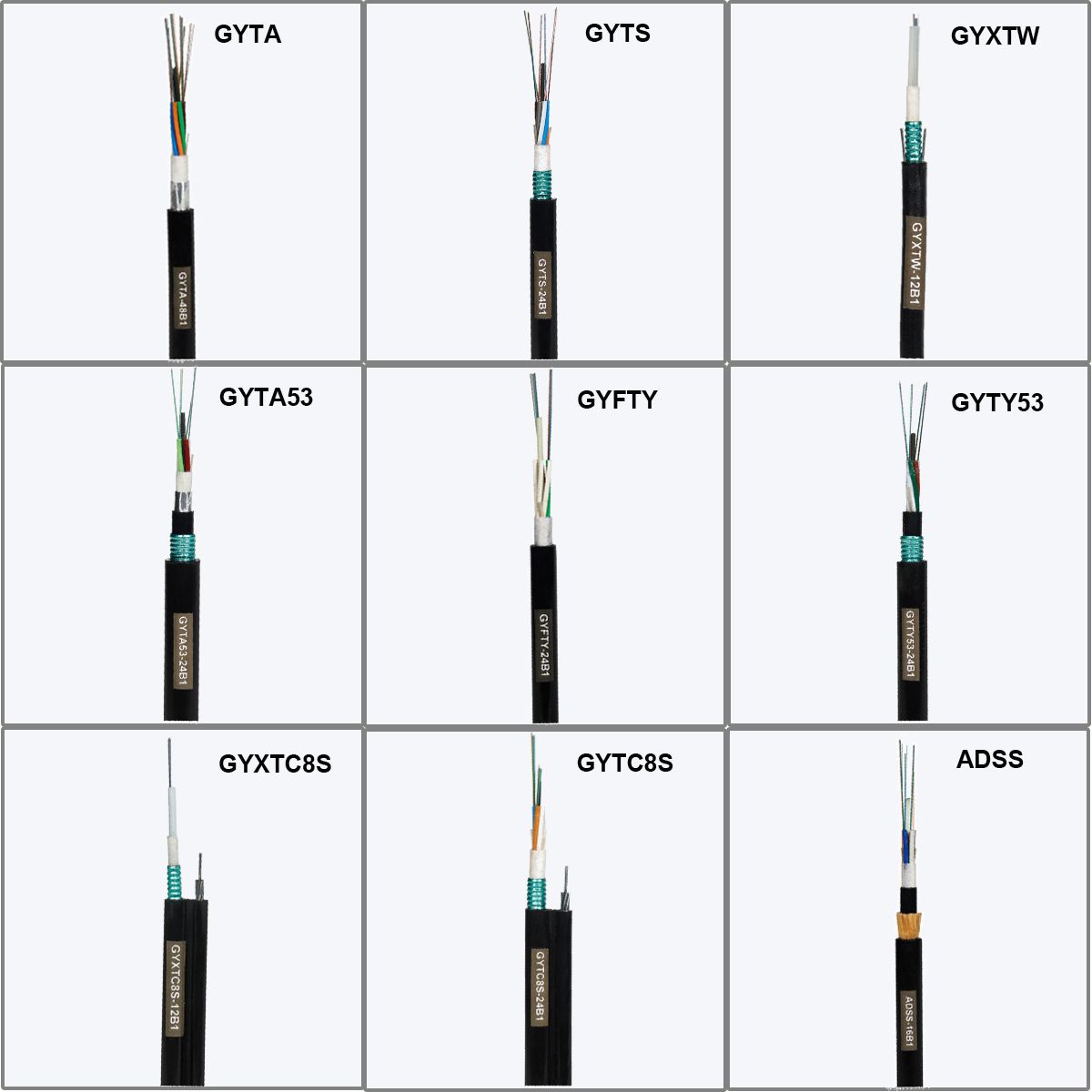

More Products:



Contact with us for latest quotation freely.
