| Prod Model: |
CU-DK402 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
IR Remote Control |
| Application: |
Infrared |
| Type: |
Network Access Control System |
Product Description
system structure :The system has the following two models to choose from :
DK402T: means the host can be directly connected via the built-in LAN TCP / IP protocol ; multiple DK402T LAN hosts can be directly connected to any network within one to four single PC networking
DK402R: refers to multiple or single host PC via RS485 converter with serial connection. A DK402 host four external card reader, can be customized for the two-door two-way and four -way card reader card reader ; multiple DK402R RS485 communication with a host computer through a single PC serial communications.
Storage capacity: Storage capacity of up to 100 000 event records , 20,000 user card and a password to open the door , 100 primary user card , 50 management card , five stress cards, 500 cards, and a group of visitors duress password.
prevailing time management:
Every day can be set free eight different normally open period of eight hours and eight forbidding Management Card first open slot.
holidays controls: Each door can set up multiple holidays can also set any two week holiday ; and each user can customize the holidays is valid. Holidays can also be set as an effective ban on the line, the duo opened the door to be read or holiday card with a password to open the door
open mode period : Each door can be set to open eight different modes hours a day , respectively . Optional Card and PIN each time , card or password to open the door , open the door duo three door model , the time period in open mode for the reader directly outside the door
system parameters : The time can be set to open the door ; alarm time ; safe mode ; Magnetic status monitoring ; five wrong password alarms ; five illegal card alarm ; access records can be customized to save the key to open the door , the password to open the door , the alarm information and other incidents ; New the submarine back out , two-door interlock ( anti trailing ) , choose electric lock output signal ( direct drive electric lock switch and output level control signal two kinds ) function.
Real-time monitoring : Real-time display the name of the reader staff , photos, numbers and other information, the user entered, the user out, the password to open the door , the button to open the door , forbidding hours , holidays forbidding illegal cards, anti-submarine back to not open the door , do not open the door anti- trailing , not a state of emergency open the door, tamper alarm , door alarm and other real-time information abnormalities .
System icon: Switch status can be monitored in real time door controller 's communication status
Portrait comparison function :
When the data entry staff can capture real-time staff photo by USB camera or import photos ; in real-time monitoring in real-time by comparing IP camera cardholder matches .
fire linkage : Fire can access the linkage signal (DC24V) to achieve fire linkage , when a fire emergency doors are open to all .
attendance functions: Attendance feature scalable, powerful time and attendance software , time and attendance rules and custom frequency settings, etc. ; scheduling flexible and practical , to solve the overtime, three shifts , Kuari attendance and other issues ; automatic statistics late, leave early , frequency and timing of absences ; attendance results can be printed or Excel report output format
with remote control , emergency function

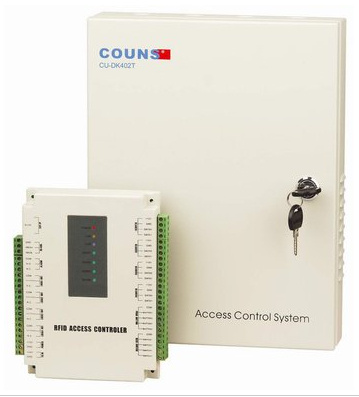

Real pictures:
Shenzhen Hui Trade Industry Co., Ltd was established in the 1990 s, nearly 20 years in the automatic door control and related products field continuously explore. To products responsible for, is responsible for the customer for the development of the enterprise the premise, and with the overwhelming majority of the automatic door users provide safe, stable, with the highest cost-effective automation product categories for development goals.
In the growth process, successively in mainland area to the user with Chris dodd and, open he is cut off, the brand such as China' S total operation by the service, with the efficient, earnest, practical work for many of the same industry partners consistent approval. Now, the improved "CATERLY" automatic door unit to a lower price, consummate craft, fully functional advantages and the solid price for all the distributors love.
In 2007, in response to the changing market demand, home to more than HuiTrade joint development institutions, successfully develop T8-100 door machine translation, and 2008 years into production, so as to realize the transformation from the trade for production, trade, sales for the integration of diversified management, as the few independent research and development of one of the enterprise completely...In various special door, it has the very strong overweight door industry advantage. Products have been exported to Vietnam and southeast Asia as well as Hong Kong CATERLY "series products already has won the ISO9001: 2000 international standard authentication, and Pass CE certification.
Through the understanding of the Hui Trade to you, you will find that the choice of different channels more automation, unique solutions and the company always insists on the principle of the supremacy of the customer will let our pleasant cooperation, and in the automation channel field high-speed growth. Sincerely welcome vistit our factory to guidance, negotiations.
We, Shenzhen Hui Trade Industry Co., Ltd do our best to satisfied you.
