4 Layer FPC Polyimide Immersion Gold Flexible PCB Board
| Price: |
US $ 1.28/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V25 |
| Surface Finish: |
Immersion Gold |
| Board Thick: |
0.20mm |
| Legend Color: |
White |
| Inner Copper Thick: |
35 Um (1oz) |
| Solder Mask Color: |
Yellow |
| Outer Copper Foil: |
35 Um (1oz) |
| Stiffener Thickness: |
1.0mm |
| RoHS Required: |
Yes |
| Peeling Test of Coverlay: |
No Peelable |
| Test: |
100% Electrical Test |
| Structure: |
Multilayer FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Digital Electronics |
Product Description

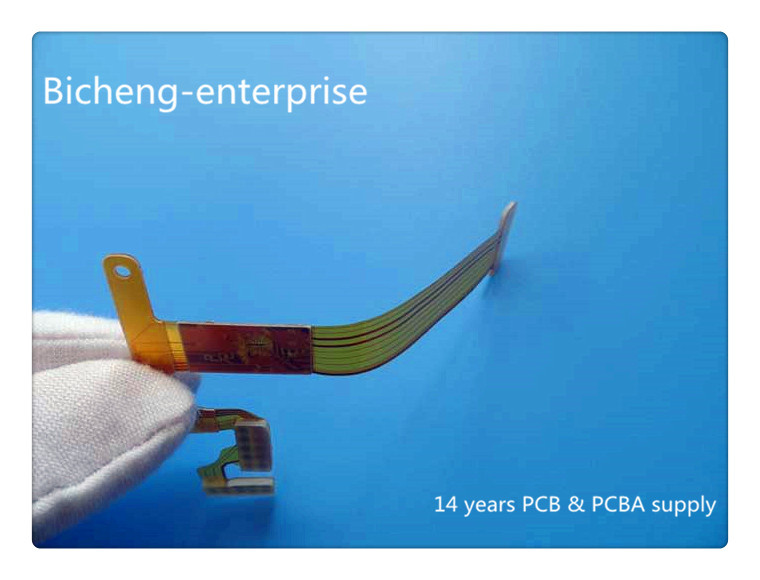

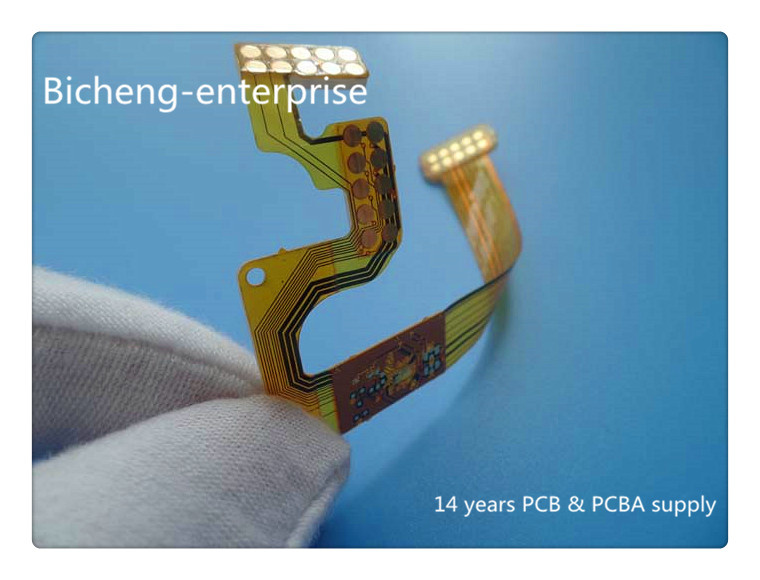

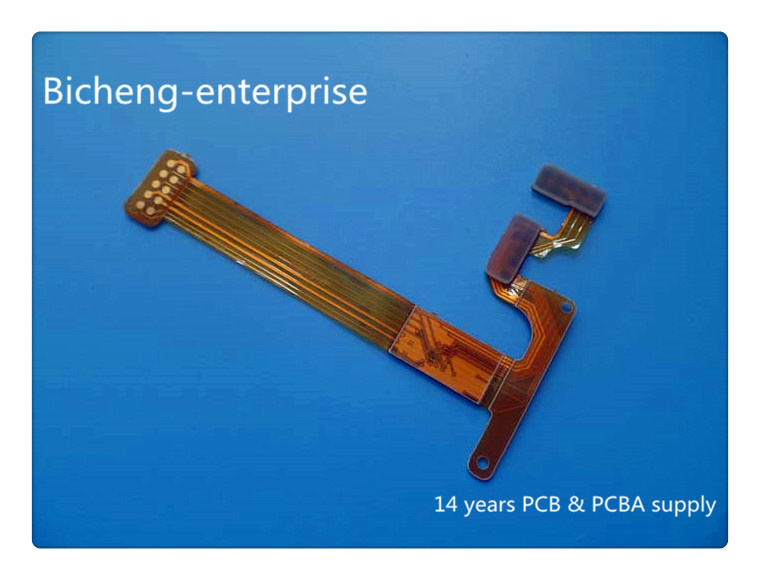

4 Layer FPC Polyimide Immersion Gold Flexible PCB board 419
Commodity IntroductionThis is a type of flexible printed circuit for the application of Digital Electronics. It's a 4 layer FPC at
0.2mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied
Gerber data. FR-4 as stiffner is applied on the two ends.
Parameter & Data Sheet| Size of Flexible PCB | 60.87 X 130.42mm |
| Number of Layers | 4 |
| Board Type | Flexible PCB |
| Board Thickness | 0.20mm |
| Board Material | Polyimide 25µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | 35 µm |
| Surface Cu thickness | 35 µm |
| | |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | FR-4 |
| Stiffener Thickness | 1.0mm |
| | |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
High CTI 600V PCB
What is Comparative Tracking Index (CTI)?
Here CTI is a quality item that refers to copper clad laminate which is widely used in home electri
-cal appliance or other high-voltage (110V, 220V) electrical apparatus. It is a simulated condition
that the PCB is polluted in its working environment, which result in leakage or short-circuit at the
track gap of the PCB surface, being accompanied by heat releasing and charring.
The way of experiment is that continuous 50 drops of 0.1% ammonium chloride solution are
dropped between two points on the PCB surface, 30 seconds per drop, turning on high voltage
AC current to do the test. Firstly trying 300V to generate 1A current. There's ammonium chloride
solution on the surface, so after current is switched on it will produce resistance who also bring
out heat, then the solution is slowly evaporated. 2nd drop is on and till to 50 drops to see if the
PCB has leakage or not. Once the PCB has 0.1A creepage and exceeds 0.5 seconds, it's judged
Failure.
The quality of CTI of laminate refers to the externally applied voltage value and without failure of
50 drops. If abovementioned 300V passed, we can increase the voltage to 400V, 500V or 600V
till to the high value before failure. That is the data of the laminate CTI.
Bicheng offers high CTI PCB's (high CTI 600V FR-4 and aluminum backed material) which is
working in such harsh environment of high voltage, filth and humidity. | | IEC 112 standard has 3 degrees as follows | |
| | | Comparative Tracking Index (in Volts) | Class | | 600 <= CTI | I | | 400 <= CTI < 600 | II | | 175 <= CTI < 400 | IIIA | | 100 <= CTI < 175 | IIIB |
| |
As per the standard of IEC,the smaller a substrate of CTI grade, the better resistance to tracking.
Normal FR-4 ranges 175-225V
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
