4 Layer Polyimide Flexible PCB with Immersion Gold FPC
| Price: |
US $ 1.23/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V7 |
| Board Thickness: |
0.25mm |
| Inner Copper Thick: |
35 Um (1oz) |
| Outer Copper Thick: |
35 Um (1oz) |
| Coverlay Colour: |
Black |
| Stiffener Thickness: |
1.0mm / 0.2mm |
| Stiffener Material: |
Fr-4 / Stainless Steel |
| Color of Silkscreen: |
White |
| Peeling Test of Coverlay: |
No Peelable |
| Surface Finish: |
Immersion Gold |
| Test: |
100% Electrical Test |
| Structure: |
Multilayer FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Intercom System |
| Brand: |
Bicheng |
Product Description
4 Layer Polyimide Flexible PCB with Immersion Gold FPC 386
Commodity Introduction

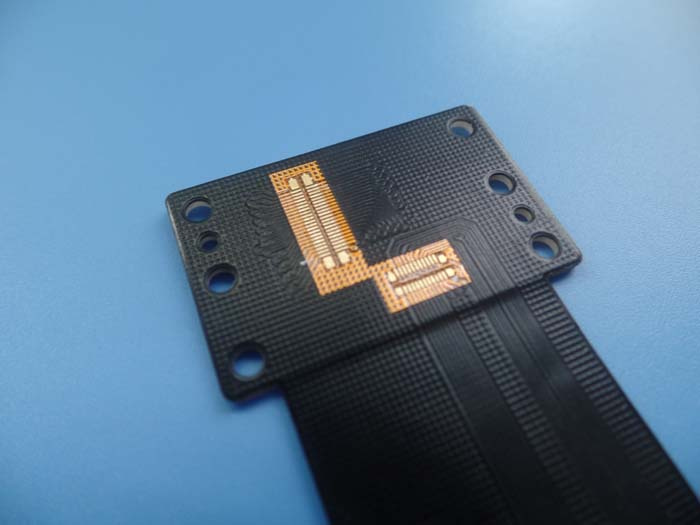

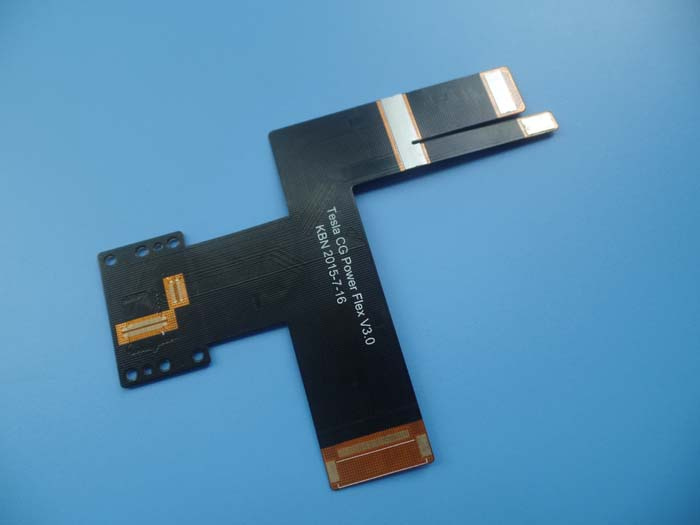

This is a type of flexible circuit for the application of Intercom System. It's a multilayer 4 layer
FPC at 0.25mm thick. The base laminate is using from ITEQ, It's fabricated per IPC 6012 Cla
-ss 2 using supplied Gerber data. Two types of stiffeners are applied on the back side and top
side.
Parameter & Data Sheet| Size of Flexible PCB | 71.25 X 80.38 |
| Number of Layers | 4 |
| Board Type | Flexible PCB |
| Board Thickness | 0.25mm |
| Board Material | Polyimide (PI) 25µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | 35 µm (1oz) |
| Surface Cu thickness | 35 µm (1oz) |
| |
| Coverlay Colour | Black |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | FR-4 / Stainless steel |
| Stiffener Thickness | 1.0mm / 0.2mm |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Frequent Asked Questions
1). What's your minimum track and spacing?
Actually this depends on the copper weight.
For half oz(18um) copper, it's 3mil / 3.5mil for prototypes, 4mil / 4mil for small production and larger
at 5mil / 5mil for mass production.
For 1oz (35um) copper, it's 3mil / 4mil for prototypes, 4mil / 4mil for small production and 5mil / 5mil
for mass production.
For 2oz (70um) copper, it's 6mil / 7mil for prototypes, 6mil / 8mil for small production and 7mil / 9mil
for mass production.
For 3oz (105um) copper, it's 8mil / 9mil for prototypes, 8mil / 10mil for small production and 9mil
/11mil for mass production.
For 4oz (140um) copper, it's 12mil / 11mil for prototypes, 12mil / 12mil for small production and
13mil / 13mil for mass production.
2). Do you offer Mass production?
Yes. We have the independent industrial plant. There're 15000 square meters workshop area. And
the brand new automatic equipment were introduced from Israel, Germany, Japan and Taiwan
area. As of now, the manufacturing capability for 2-12 layer PCBs is 300 thousand square feet per
month. 5000 types of different PCBs are shipped to worldwide each month
3). What information is required for a quote?
Please send us your gerber files, PCB fabrication notes and panel drawing data when you request
for quote. This will give you an accurate price in a short time.
4). What kind of file format do you accept? only gerber files? aceept eagle .brd files?
Gerber files are our first choice. We also accept .PCB files and .PCBDOC files. We currently do not
use .brd files.
5). Where do I send my gerber files?
Your files are emailed to the sales representative who wills reviews the files and provides a quote
based on your lead time and quantity requirements.
If you're contact us first time, you can send enquiries to our market department at sales@bicheng-
enterprise.com
You can also contact us through the website contact form in the pages.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
