4 Layer Rigid-Flex PCB 1.6mm Thick FPC with Yellow Coverlay

Name: 4 Layer Rigid-Flex PCB 1.6mm Thick FPC with Yellow Coverlay
Brand: all-electronics-online.com
SKU: 827108165
Availability: InStock
Rating: 4.5 (135 reviews)

Price:	US $ 1.82/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-1827-V15
Legend Color:	White
Solder Mask Color:	Yellow and Green
Surface Finish:	Immersion Gold
Board Thick:	1.6mm
Thickness of Coverlay:	25 Um
Peeling Test of Coverlay:	No Peelable
RoHS Required:	Yes
Outer Copper Thick:	1 Oz
Inner Copper Thick:	1 Oz
Test:	100% Electrical Test
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Application:	Application of Antenna

Product Description

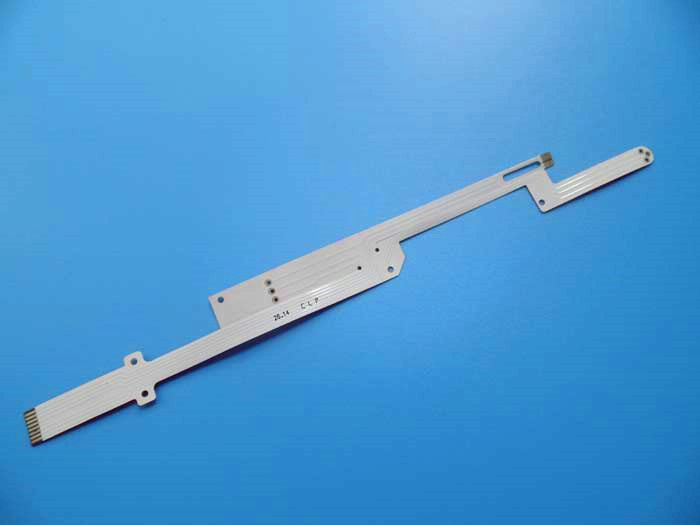

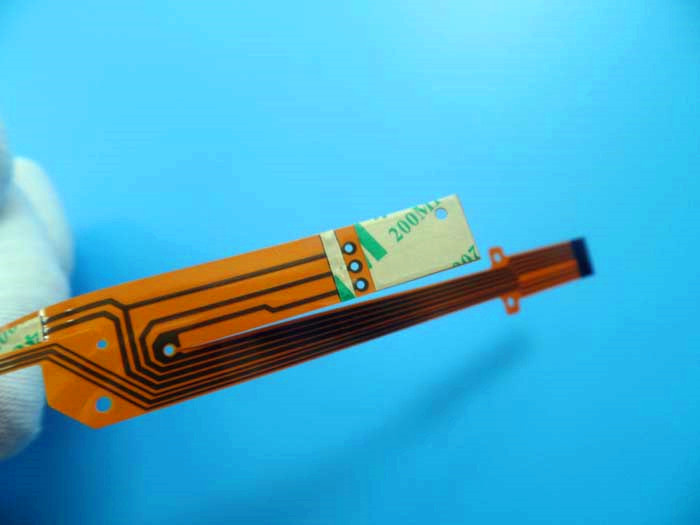

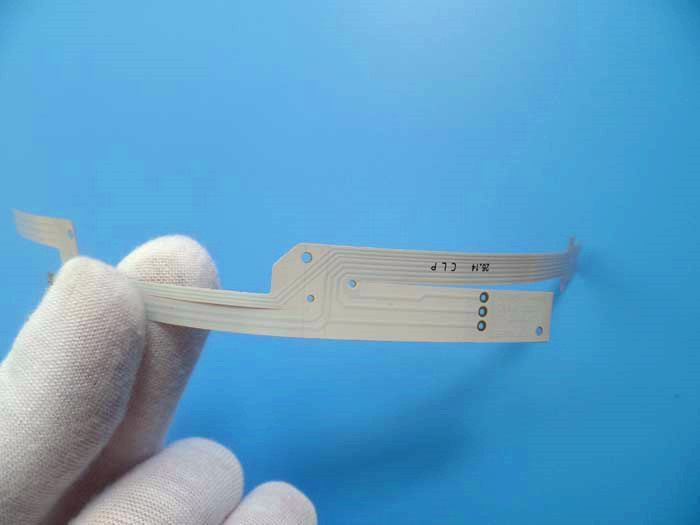

4 Layer Rigid-flex PCB 1.6mm thick FPC with Yellow Coverlay

Commodity Introduction
This is a type of rigid-flex PCB for the application of Portable Sound Systems. It's a 4 layer PCB
with flexible part in the middle. The base laminate is from Shengyi, It's fabricated per IPC 6012
Class 2 using supplied Gerber data.

Parameter & Data Sheet

Size of Flexible PCB	60.22 X 132.27mm
Number of Layers	4
Board Type	Rigid-flex PCB
Board Thickness	1.6mm
Board Material	FR-4 1.6mm / Polyimide 25µm
Board Material Supplier	Shengyi
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	35 µm
Surface Cu thickness	35 µm

Coverlay Colour	Yellow Coverlayer / Green solder mask
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	no
Stiffener Thickness	N/A

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	2

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Rigid-Flex Printed Circuit Boards

A rigid-flex PCB is a combination of rigid boards and flexible circuits, the latter creating flexible
interconnects between the rigid boards to which they are laminated by means of bond plies.

The flexible circuit is manufactured separately and bonded to the rigid boards, either symmetrically,
i.e., in the middle of the rigid boards, or asymmetrically, i.e., to the outer side of the rigid boards to
be interconnected.
