4 Layer RO4003c and Fr-4 PCB Board in Balanced Amplifier
| Price: |
US $ 0.68/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-200-V2.00 |
| Final Foil External: |
1.5 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green, Lp-4G G-05, Nanya Supplied |
| Colour Of Component Legend: |
White, S-380W, Taiyo Supplied. |
| Minimum Trace And Space: |
5 Mil/5 Mil |
| Minimum / Maximum Holes: |
0.3/3.5mm |
| Test: |
100% Electrical Test Prior Shipment |
| Via: |
Platedthroug Hole(Pth) |
| Acceptable File Format: |
Gerber RS-274-X and Pcbdoc |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
Fr-4 and RO4003c 20mil |
| Material: |
Fiberglass Epoxy and Hydrocarbon/Woven Glass |
| Insulation Materials: |
Epoxy Resin and Glass Reinforced Hydrocarbon |
Product Description

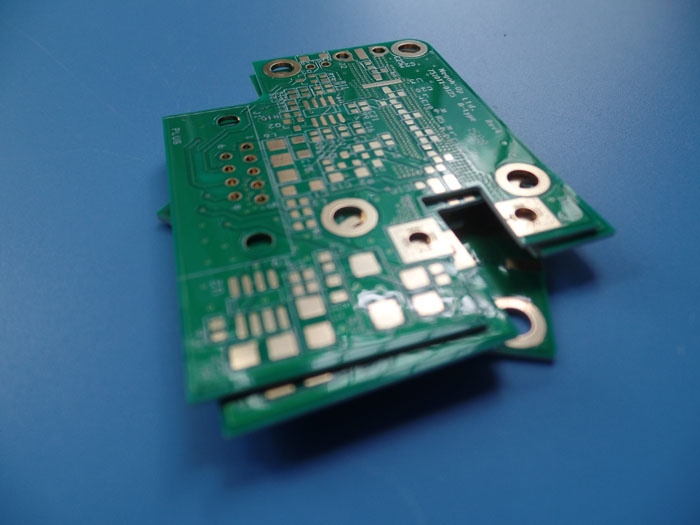

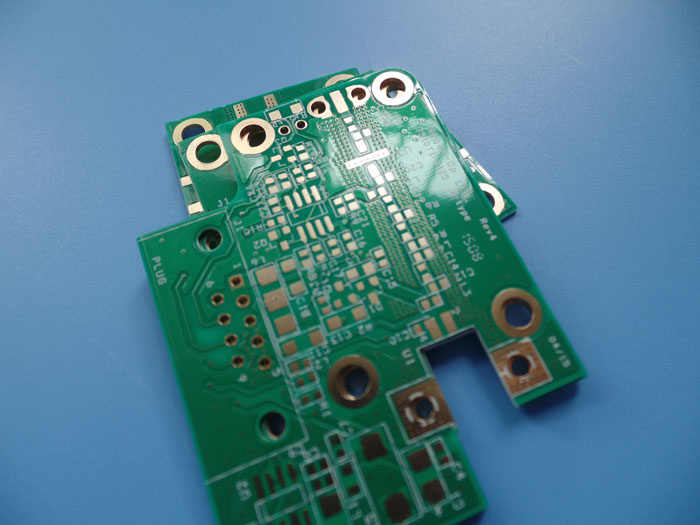

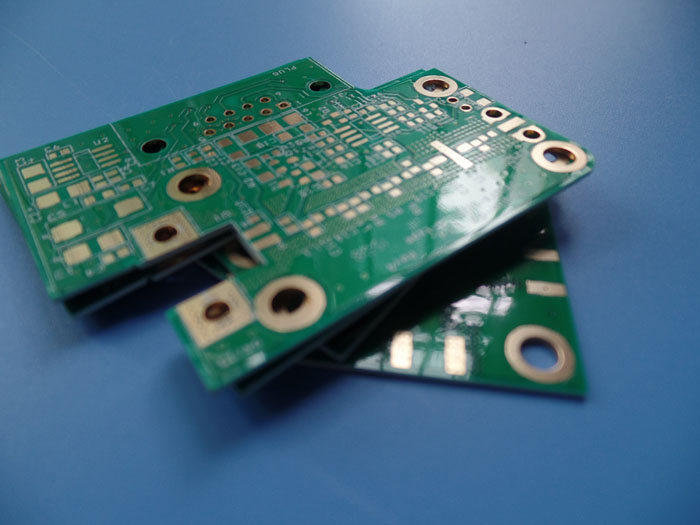

Hybrid 4 Layer Printed Circuit Board RO4003C And FR-4 Combined Immersion Gold Applied
In Balanced Amplifier
Commodity Introduction
This is a type of FR-4 and RO4003C 20mil for the application of Balanced Amplifier. It's a
4 layer board at 1.6mm thick. The base laminate is from ITEQ and ROGERS CORP, Solder
mask and silkscreen from Nanya and Taiyo. It's fabricated per IPC 6012 Class 2 using supplied
Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 81 x 61mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 35 um(1 oz)+plate TOP layer |
| RO4003C 20 mil Er 3.38 |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 0.4mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| RO4003C 20 mil Er 3.38 |
| copper ------- 35 um(1 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5 mil/5 mil |
| Minimum / Maximum Holes: | 0.3/3.5mm |
| Number of Different Holes: | 4 |
| Number of Drill Holes: | 912 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4. RO4003C 20mil |
| Final foil external: | 1.5 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (16.5%) 2 micoinch over 100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Wireless Modem
Antena Wifi
LTE Router
Bluetooth Usb
VHF Radio
Antennas |
TYPE OF ARTWORK TO
BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
