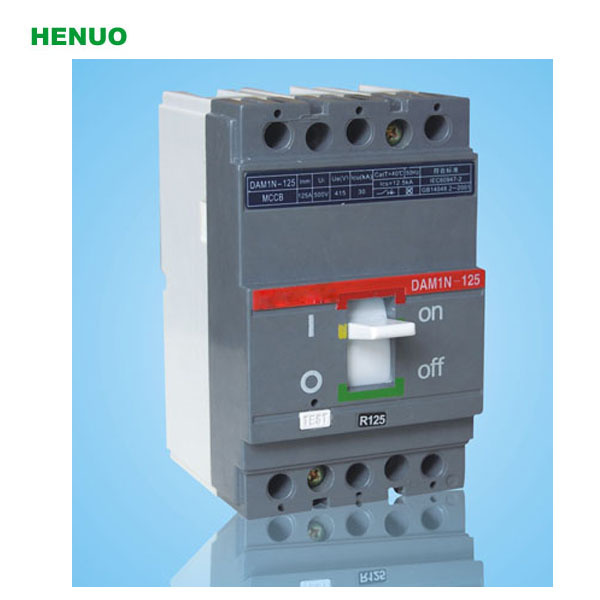

400A 530A 600A 700A 800A Residual Current Circuit Breaker
| Price: |
US $ 12/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
M1L-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
2p /4p |
| Voltage: |
400V-690V |
| Current: |
6A-1250A |
| Ambient Temperature: |
-5~+40 |
| Maximum Salant: |
22.5 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CCC |
Product Description
Applicable range
M1L series residual current circuit breakers (hereinafter called circuit breaker)are applied for the power distribution network of AC50Hz / 60Hz, rated voltage 400V and rated current up to 800A. They can protect people against indirect contact and prevent fire disaster caused by insulation and ground fault. They can also be used to distribute electric power and protect power equipment against overload and short current, and can change the circuit and start motor infrequently.
According to the actual situation ,the rated residual operating current IΔn and residual current operating time can be locally adjusted;The creepage protection module still normally operate and creepage alarm output function, even if the phase voltage reduces to 50V.
Comply with the demands of the following standards:IEC60947-2 and GB14048.2

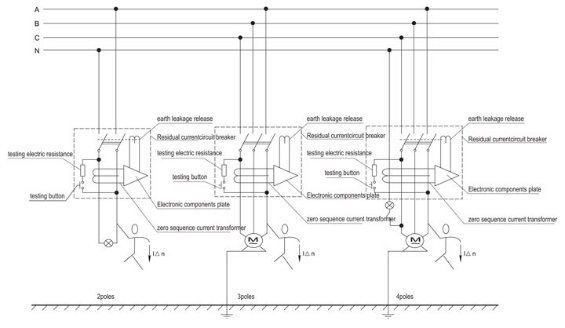

Structure and operation principle
Structure
This serial circuit breakers are electronic protective devices of electric leakage of electric current movement. Main parts are as
follow: main switch(containing overcurrent release), zero-sequence transformer, electronic amplifier, leakage release, experimental
rig, all spare parts are put on a plastic shell.
Operation principle
when there are electric leakage or shock in the protected circuit, zero-sequence transformer outputs a signal, which up to a certain
value, it can make silicon controlled rectifier open, then make leakage release move, thus drive the traction lever, which may cut off the
power in short time. And it realizes the function of protecting electric leakage.

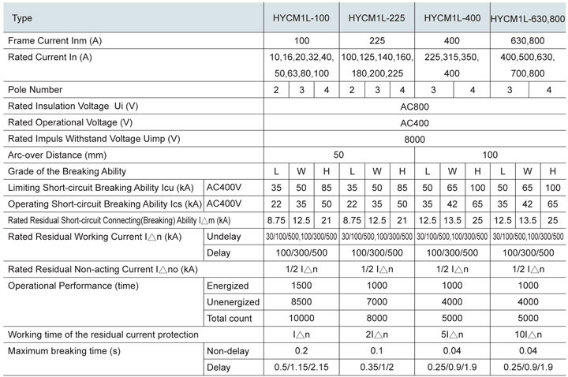

Technical parameter
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:

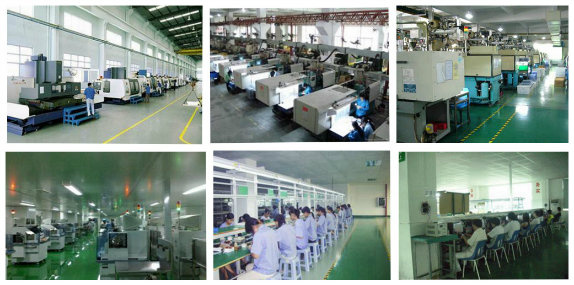

The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
