400V Input and Output 80kVA Double Conversion Industrial Online UPS
| Price: |
US $ 5800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GP3380K |
| Backup Time: |
Depends |
| Battery Type: |
Sealed Lead Acid Battery |
| Operation Temperature: |
0-40° |
| Demension: |
325× 142× 220 |
| Weight: |
4.5kg |
| Overload Capacity: |
125% Maintain10mins, 150% Maintain 1mins |
| Battery Voltage: |
360VDC/384VDC |
| Input Power Factor: |
0.99 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
| Brand: |
Zlpower |
Product Description
UPS System, High Frequency UPS 20K, 30K, 40kVAInput: 380/400/415VAC
Output: 380/400/415VAC
1: High frequency UPS
2: GIBT, PWM technology
3: Bypass function
4: CE&ISO
Key featuresN+X parallel redundancy (compatible to battery share in the parallel mode) The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost.
N+X parallel redundancy (compatible to battery share in the parallel mode) The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost.
Intelligent management of battery charging and discharging
Frontal-board operation and maintenance
Twin-channel line input. The UPS provides customer security in power supply with intelligent choice between two-line input or one-line input according to the actual condition.
Remote monitoring. Communication interfaces like RS232/RS485, Intelligent Slot are available for the realization of remote management and monitoring. In addition, the optional AS400 card is suitable for the connection of stem point, which enriches the customer's choice out of the monitoring demand
High-efficient DSP chip
Excellent performance in industrial environment protection. Just with the standard product, IP21 protection level ( protecting the machine from the intrusion of solid material with the diameter larger than 12mm or the water drops) is achieved.
Application: Metro, Oil field, Army, Banks, Telecommunication, Power
Plants and so on.

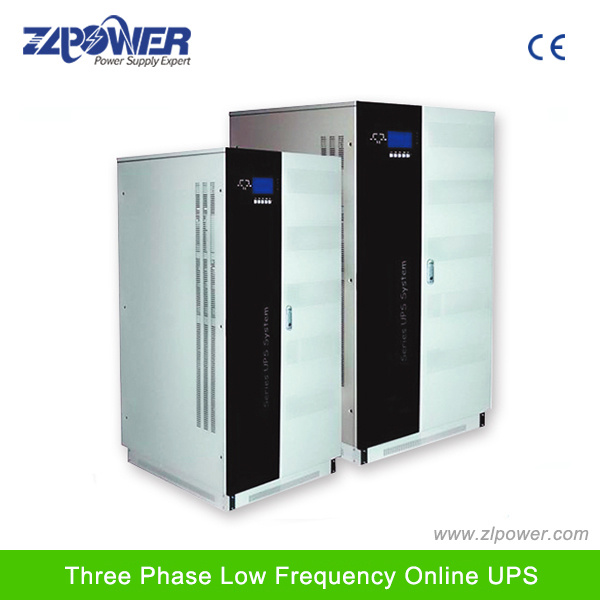

Photos:
Specification:| Online UPS Model | EX3320K | EX3330K | EX3340K | EX3360K | EX3380K |
| Rated Capacity | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| Input | Voltage | 210-475VAC |
| Frequency | 40-70Hz |
|
| Phase Line | Three-phase 4 line + earth line |
| THDI | <3% |
| Input Power Factor | >0.99 |
| Twin-channel Line Input | Yes |
| Battery | Type | Valve-regulated lead-acid storage battery |
| Standby Time | Depended by external battery bank |
| Output | Voltage | 380VAC / 220 VAC |
| Frequency | 50/60Hz |
| Phase line | Three-phase 4 line + earth line |
| Rated output power factor | 0.8 |
| Overload Capacity | 125% maintain 10minutes |
| 150% maintain 1minutes |
| Efficiency | Line Input Mode | 93% | 94% |
| BAT Mode | 93% | 94% |
| ECO Mode | 98% |
| Intelligent Speed Control of Fan | yes |
| Display Device | LCD | I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
| LED | The operation state of UPS |
| Warning Devices | Two ways of alerting: BUZZER sound, lamp signal, |
| Communication Interface | RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot |
| Operation | Temperature | 0-40centi-degree |
| Environment | Humidity | <95% (non condesing) |
| Weight | Net weight(include transformer) | 82Kg/208Kg | 110Kg/275Kg | 114Kg/314Kg | 282Kg | 306Kg |
| Gross weight(include transformer) | 122Kg/248Kg | 160Kg/325Kg | 164Kg/364Kg | 356Kg | 380Kg |
| Size L*W*H(mm) | 643×420×925 | 710×470×1150 | 800×600×1850 |
