Wenzhou Homor International Trade Co., Ltd. >> 400VAC 2.5UF AC Spare Parts Fan Capacitor Cbb61

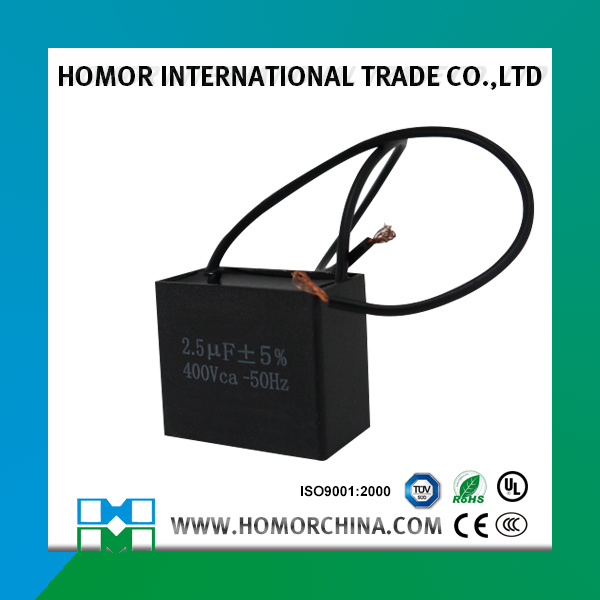

400VAC 2.5UF AC Spare Parts Fan Capacitor Cbb61

400VAC 2.5UF AC Spare Parts Fan Capacitor Cbb61
Price: US $ 0.35/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CBB61
Operating Temperature: 40/70/21 or 40/85/21
Rated Voltage: 200~500VAC
Class Of Safety Protection: P0/P2
Class Of Operation: Class B, Class C
Type: Polypropylene Capacitor
Application: Fan
Package Type: Surface Mount
Capacitance: 1-50uf
Manufacturing Material: Plastic Case and Capacitor Mpp Film

Product Description


CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.

Specifications
Model No.CBB61 Capacitor
TypePolypropylene Fan Capacitor
Capacitance1~30uF
StructureSingle Film Capacitor
Manufacturing MaterialPolypropylene
ElectrolytePolypropylene Film
Rated Voltage200~500VAC
Operating Temperature40/70/21 or 40/85/21
Capacitance Tolerance±5%
Class of OperationClass B,Class C
Class of Safety ProtectionP0/P2
Package Type Export Carton for CBB61 Fan Capacitor
MOQ1000 pcs
Size Available on Request (Customized Fan Capacitor)


Technical Specifications:
Reference standardsGB/T 3667.1997 ( IEC60252-1993)
Climatic category40/70/21,40/85/21
Class of operationClass B(10000h)  Class C(3000h)
Dissipation factor20×10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT2 Un for 2 seconds
Test voltage terminal to case UTC(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Service condition:


Altitude:≤2,000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage:Less than 1.1 time of rated voltage
Permissible maximum current:Less than 1.3 times of rated current

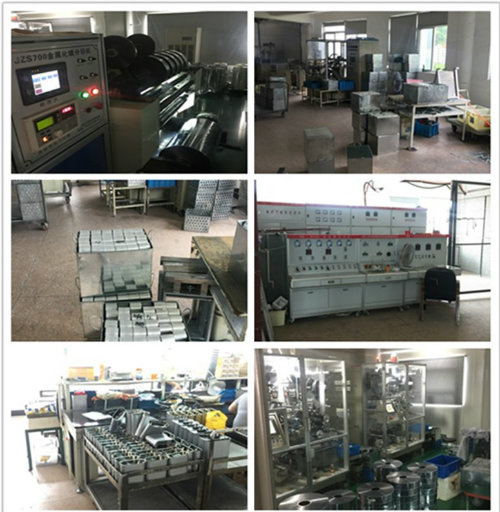

Factory:


*Please note all the price are negotiable upon specifications, if you have any inquiry, welcome to contact us.




HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.

HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.

HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
