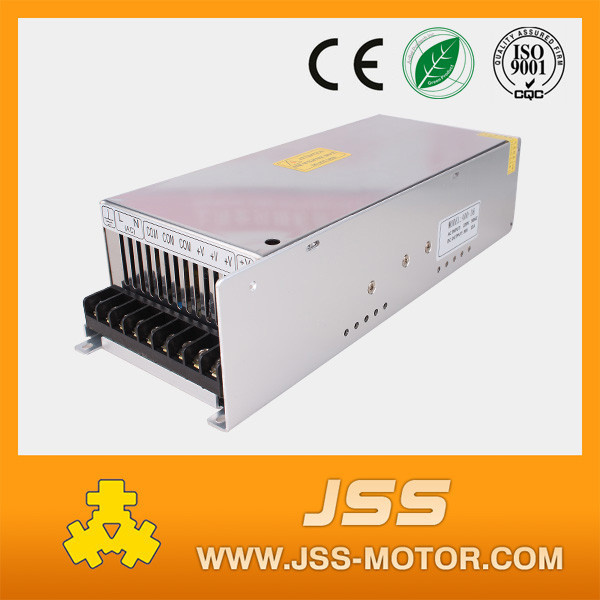

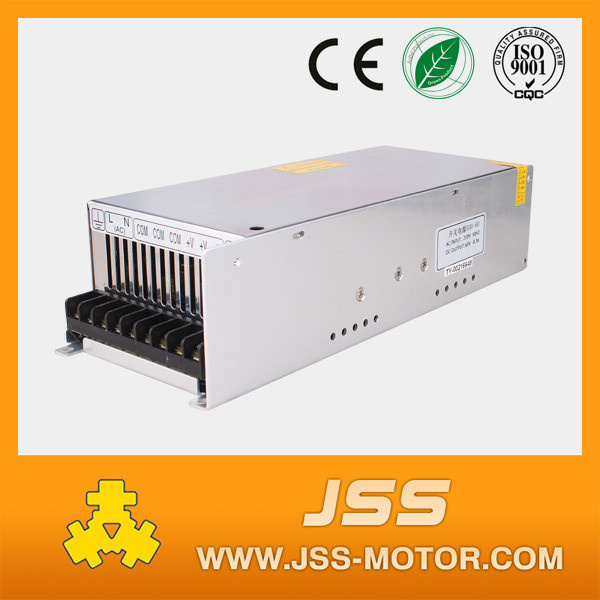

| Prod Model: |
JSS400-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
11A |
| Power: |
400W |
| Voltage: |
36V |
| Dimension: |
240*124*65mm |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
301 - 400W |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Jss |
Product Description
Specification:
1. AC input voltage range: 110V±15%, 220V±15%
2. Input frequency: 47~63Hz
3. Line requlation(full load): <±0.5%
4. Output voltage adjust range: ±5%
5. Short circuit: shut off, re-power on to recover
Output overload protection: 105~150%, shut off, re-power on to recover
Withstand voltage: I/P-O/P 1.5KVac 1min
I/P-F/G 1.5KVac 1min
O/P-F/G 0.5KVac 1min
Rise time: 30ms@full load(typical)
Hold up time: 20ms@full load(typical)
Operating temperature, Humidity: -10ºC+50ºC, 20~90%RH, non condensing
Storage temperature, Humidity: -30ºC+80ºC, 10~95%RH, non condensing
Safety standards: GB4943 EN60950
EMC standards: GB9254 EN55022
Cooling method: Fan
Model Type | DC OUT | Load regul | R&N | Efficiency | Dimension |
| 25-12 | 12V | 2.1A | 0.5% | 100mV | 79% | 100*57*31mm |
| 100-12 | 12V | 8.3A | 0.5% | 120mV | 83% | 159*98*42mm |
| 120-24 | 24V | 5A | 0.5% | 120mV | 83% | 159*98*42mm |
| 200-24 | 24V | 8.3A | 0.5% | 120mV | 84% | 199*110*50mm |
| 350-24 | 24V | 14.5A | 0.5% | 180mV | 84% | 215*115*50mm |
| 200-36 | 36V | 5.6A | 0.5% | 180mV | 85% | 199*110*50mm |
| 400-36 | 36V | 11A | 0.5% | 200mV | 85% | 257*102*65mm |
| 500-48 | 48V | 10A | 0.5% | 200mV | 85% | 240*124*65mm |
| 600-48 | 48V | 12A | 0.5% | 200mV | 85% | 240*124*65mm |
| 500-60 | 60V | 8.3A | 0.5% | 200mV | 85% | 257*102*65mm |
| AC input voltage range | 110V±15%, 220V±15% |
| Input frequency | 47~63Hz |
| Line requlation(full load) | ±0.5% |
| Output voltage adjust range | ±5% |
| Short circuit | shut off, re-power on to recover |
| Output overload protection | 105~150%, shut off, re-power on to recover | | | |
| Withstand voltage | I/P-O/P 1.5KVac 1min |
| I/P-F/G 1.5KVac 1min |
| O/P-F/G 0.5KVac 1min |
| Rise time | 30ms@full load(typical) |
| Hold up time | 20ms@full load(typical) |
| Operating temperature, Humidity | -10+50, 20~90%RH, non condensing |
| Storage temperature, Humidity | -30+80, 10~95%RH, non condensing |
| Safety standards | GB4943 EN60950 |
| EMC standards | GB9254 EN55022 |
| Cooling method | Fan |

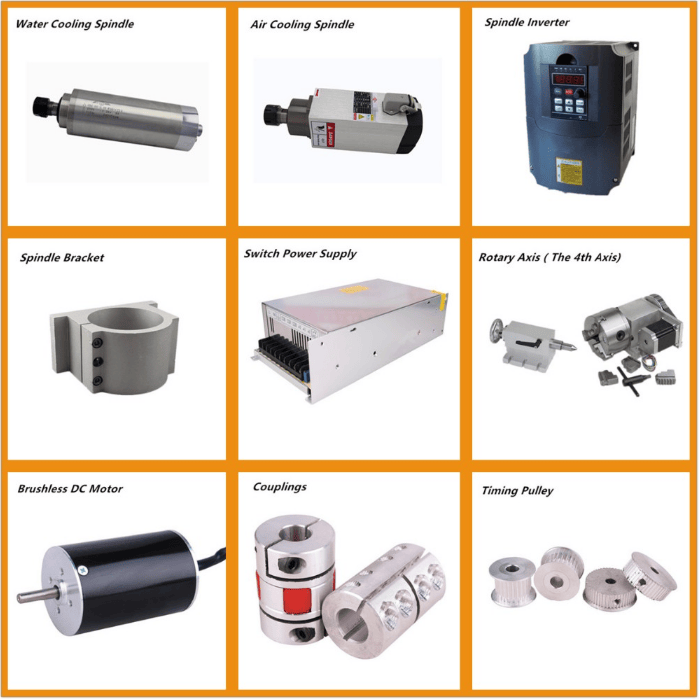

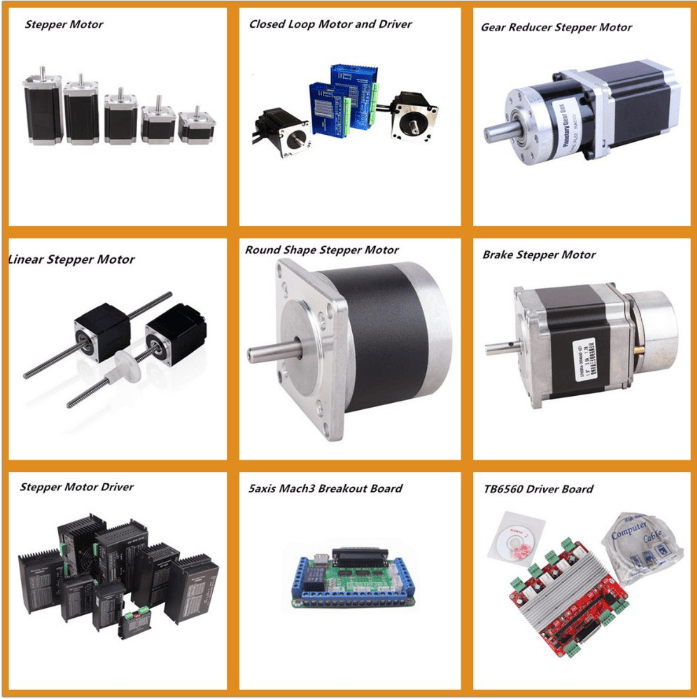

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
