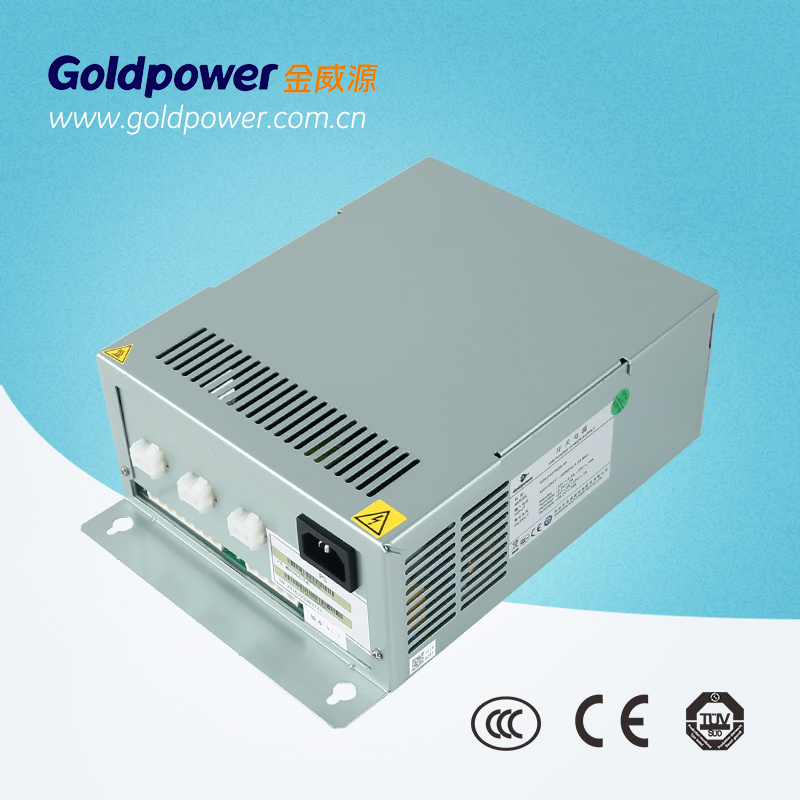

400W AC/DC Switching Power Supply for ATM with CCC, Ce

Name: 400W AC/DC Switching Power Supply for ATM with CCC, Ce
Brand: all-electronics-online.com
SKU: 733246932
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD401M24-6D
Output Efficiency:	80%
Power Factor:	0.95(220V Full Load)
Output Voltage Range:	24V 12V 5V
Output Current Range:	0~12 a
Weight:	<3kg
Output Type:	Multiple
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	400W
Input Voltage:	90~280VAC
Brand:	Goldpower

Product Description

400W AC/DC switching power supply for ATM with CCC,CE is a high efficiency AC to DC power supply.

Feature:

1. Modular design,save the investment costs,
2. High Efficiency up to 80%.
3. MTBF≥200,000h
4. Perfect protective function:Input over voltage,input under voltage,output over voltage,output current limit,short circuit protection,over temperature protection.
5. Power factor more than 0.95.
6. Annual repair rate: ≤1%

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~280	Vac
Input frequency	48~65	Hz
Power factor	0.97
Output
Output voltage range	+12,+24,+5V	Vdc
Output current range	0~12	A
Output power	default: 400	W
Output efficiency	80	%
Ambient
Working temperature	-30~55	ºC
Storage temperature	-40~80	ºC
Relative hunidity	10~95	%
Altitude	0~5000	m
Atmosphere pressure	54~106	KPa
Cooling	Air forced ciiling
Mechanical
Dimension(LWH)	293.420090 mm
Weight(KG)	≤<3KG

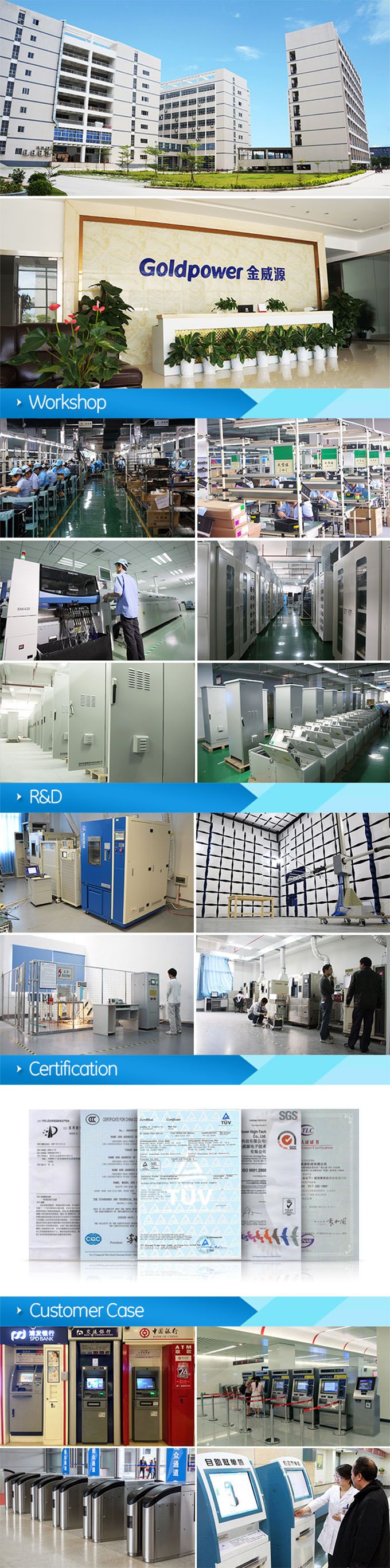

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
