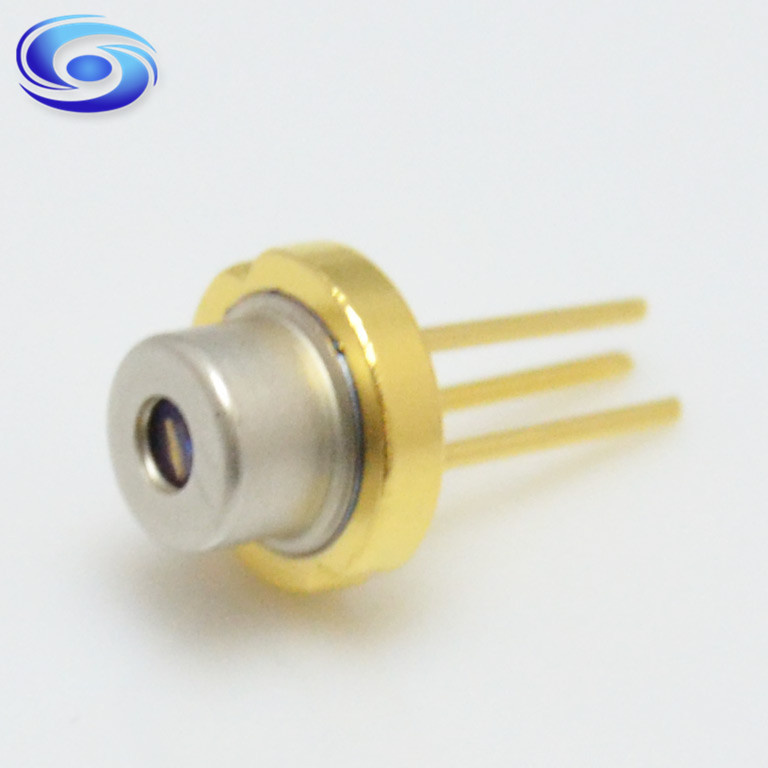

405nm 500MW To18-5.6mm Laser Diode
| Price: |
US $ 182-204/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HL40023MG |
| Model No: |
Hl40023mg |
| Material: |
Element Semiconductor |
| Operating Current: |
390-420mA |
| Lasing Wavelengt: |
398~410nm |
| Beam Color: |
Blue Violet |
| Life Span: |
10000 Hours |
| Optical Output Power: |
500MW |
| Ld Reverse Voltage: |
5V |
| Operating Temperature: |
0 ~ +30 |
| Storage Temperature: |
-35 ~ +85 |
Product Description
Product Description:Feature :
1.Wavelength:405nm
2.High power optical output:500mw(CW)

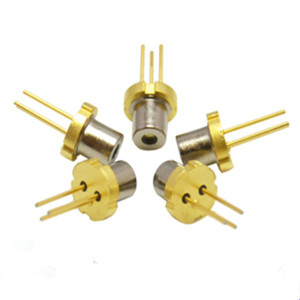

3.TO18-5.6mm package type High Power Violet 405nm 500mw TO18-5.6mm Laser Diode
Absolute Maximum Ratings (Tc=25°C)
| Item | Symbol | Ratings | Unit |
| Optical output power | Po | 500 | mW |
| LD Reverse Voltage | Vr(LD) | 5 | V |
| Operating Temperature | Topr | 0 ~ +30 | °C |
| Storage Temperature | Tstg | -35 ~ +85 | °C |
Optical and Electrical Characteristics(Tc=25°C)| Parameter | Symbol | Min | Typ | Max | Unit Test | Test Condition |
| Threshold current | Ith | - | - | 160 | mA | - |
| Operating current | Iop | - | 390 | 420 | mA | Po=400mW |
| Operating voltage | Vop | - | - | 5.5 | V | Po=400mW |
Beam divergence Parallel to
the junction | θ// | 5 | 13 | 25 | ° | Po=400mW, Full angle
1/e2
|
Beam divergence
Perpendicular to the junction | θ⊥ | 30 | 45 | 60 | ° | Po=400mW, Full angle
1/e2 |
| Lasing Wavelength | λp | 398 | 404 | 410 | nm | Po=400mW |
Packing &Shipping
1.Original packaging brand new 405nm 500mw.
2.This is high -efficient semiconductor laser diode which provides emission wavelength of 405nm and stabdard light output of 500mw
3.Multiple transverse mode;TE mode oscillation
4.Package details:plastic box package,it depends on different kinds of laser diodes with different size
5.Shipping details:1-3days affter receiving peyment by T/T,PAYPAL and it will be shipped by DHL/Fedex or other special way, please contact with us and choose the best one.
Welcome your inquiry
TO: Lily Yin
Mob:+86 18666872663
Company information &Services:A.Every customer's admiration is our goal and future willing,we are concentrated in doing the best quality products,supplying the best goods are service
B.Main products:Semiconductor laser diode,laser module ,laser power bank,bicycle,lasertail light, bicycle wheel light, headlight, auto laser fog light.
C.The laser wavelength including:405nm 410nm 445nm 450nm 455nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 980nm RGB and so on.
FAQ:1.Q:How to contact us?
A: You can send message to us on trade messager directly, or send us a email.
2.Q:Can I order samples first to test the quality?
A:Yes. Samples are in stock for you.
3. Q:How does your factory do regarding quality control?
A: Quality is priority.Sencan always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained production licence, ROHS,CE and ISO9001:2015.Warranty: All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it.
If any problem here,please inform us within 3 days of receipt. We can arrange replacement for your if the situation is confirmed.Welcome your inquiry
TO: Lily Yin
Mob:+86 18666872663
Dongguan Blueuniverse Laser Co., Ltd. Was started in 2006, and established in 2015, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, LED light source as the center and we are still continuously researching and developing the laser peripheral areas.
Main products are included below but not limited:
Semiconductor laser diode, laser module, bicycle rear light, head light, bicycle wheel light, laser fog light, laser power bank.
Since 2006, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sterilization, physical therapy, stage, measurement, advertisement, outdoor ridding and other industries.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We devote ourselves to developing good quality products, and supplying better products and services. Our strategy for successes is to follow the advanced and the latest technologies all the time and to make contribution to the optical enterprise.
