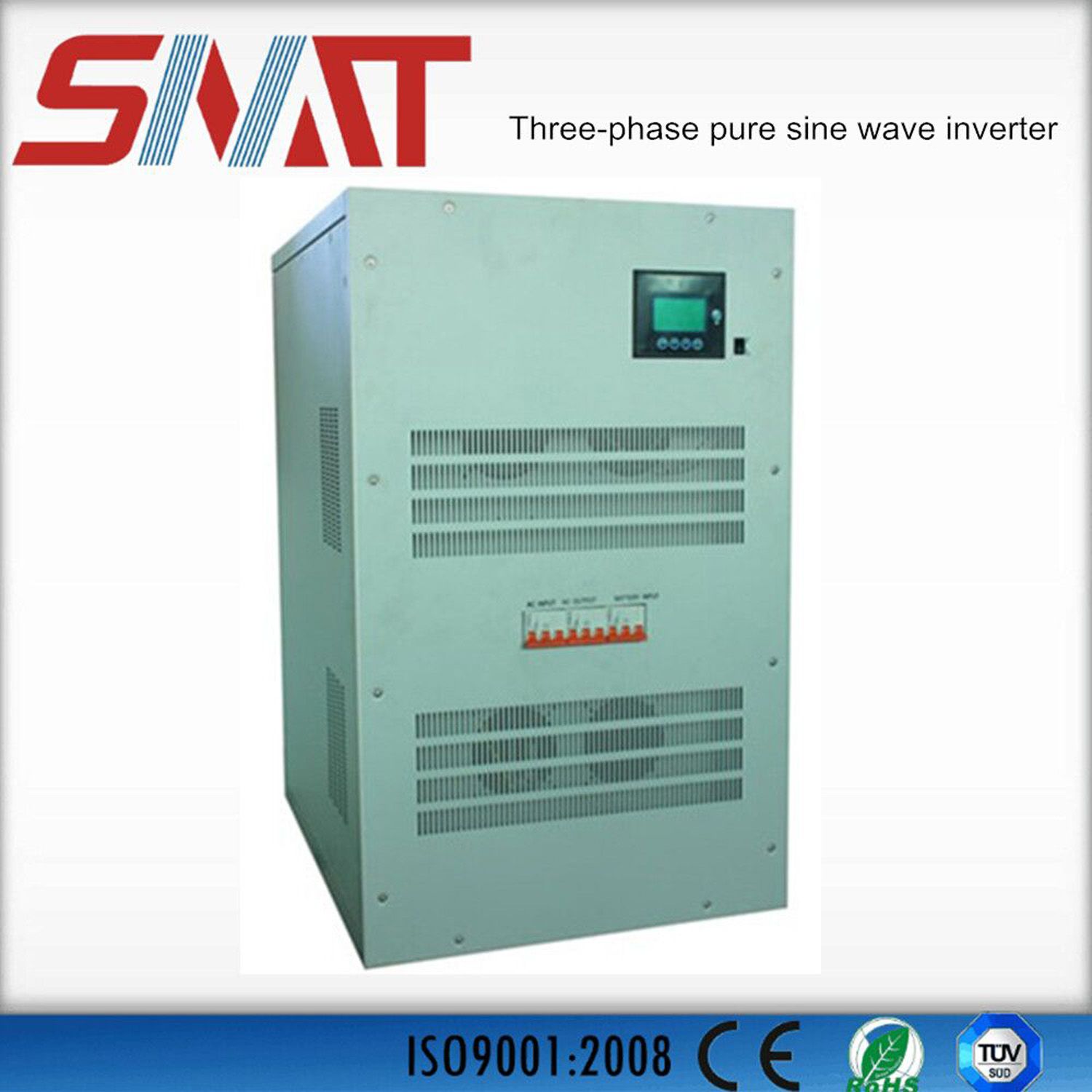

40kw Pure Sine Wave Output Inverter 220V/380V Power Inverter

Prod Model:	TP40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Company:	Manufacturer&Trading
Delever Time:	Stick to Contract
Sample Orde:	Accept
OEM/ODM:	Serve
Special Size:	Accept
Operation Mode:	PWM
Voltage:	220V/380vz±20%
Warranty:	1/2years
Phase:	Three
Power Source:	Solar Power

Product Description

                                                           TP series three phase power frequency inverter

Introduction

The procuct can provide reliable power supply protection for large data centers,network computer rooms as well as the electric power link of fields such as manufacturing,traffic and energy to meet the high reliability requirment of user  for large-power inverters.

Based on the DSP accurate control technology and the double built-in MCUs,the product can output stable and pure sine waves and provide safe and reliable power supply protection for users.


Advantages

1,Advanced working mode

2,With DSP,MCU,DDC control technology

3,Efficient IGBT inversion technology

4,Well-adapted

5,Great loading capacity

6,Big LCD.

7,RS232/RS485 interface with help of intelligent monitoring software of the inverter.

8,Make the battery life longer and reduce burden by intelligent bettery management

9,Proper adjustment of the iinput parameters according to the input power supply conditions.





Protection Function

*AC input overvoltage protection

*AC input undervoltage protection

*Output overload protection

*Short circuit protection

*Overcurrent protection

*Bus overvoltage protection

*Overheat protection

*Fan fault protection

*Auxiliary power supply fault protection

*Battery undervoltage warning protection

  etc





Operation mode and principle

PWM(pulse width modulation) based on DSP accurate control technology and double built-in MCUs complete isolation of the output power supply.


Index


Mode		TP40
Rated capacity		40KW
AC input	Phase	Three-phase+N+G
	Voltage	220V/380VZ±20%
	frequency	50/60Hz ±5%
DC input	Voltage	192V/220V/240V/384V    (16 to 32pcs of  12V batteries)
	Floating battery	13.6V *16batteries
	Cut-off battery	10.8V*16batteries
	Voltage	220V/380V±1%(stable load)
	frequency	50Hz/60Hz±5%( grid) 50Hz±0.01%(battery powered)
	Efficiency	≥95%(load 100%)
AC Output	Output Wave	Sine wave
	THD	Linear load<3%Nonlinear load<5%
	Dynamic load voltage transients	<±5%(saltus from 0to 100%)
	Recovery time	<10ms
	Unbalanced voltage	<±3%<±1% (balance load voltage)
	Overload capacity	>110%(20min. )>125%(15 min.  )>150%(20min. )
System Index	Work efficient	100% load≥95%
	Computer Communication interface	RS 232/RS 485
	Operating temperature	'-10-40ºC
	dB	40-50dB
	Relative humidity	0~90% No Condensation
	Size(mm)	580*750*920
Structure	Weight(Kg)	360

About us

*Our company is specializing in solar products for 10 years,

*Our factory is located in Foshan City ,Guangdong province.

*Our main products include inverter, Uninterruptible power supply, solar controller, solar inverter,  battery, and so on.
