| Prod Model: |
LED driver SC-60-900 |
| Product Name: |
LED Driver Sc-60-900 |
| Frequency: |
47-63Hz |
| Rated Current: |
880mA |
| Operating Voltage Range: |
40V-60V |
| Rated Power: |
53W |
| Output Voltage(Max): |
64VDC |
| Warranty: |
3 Year |
| IP: |
IP41 |
| Weight(N.W): |
194G+10g |
| Input Voltage: |
90-295VAC 127-417VDC |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Certification: |
FCC |
| Power Supply Voltage: |
90-295VAC 127-417VDC |

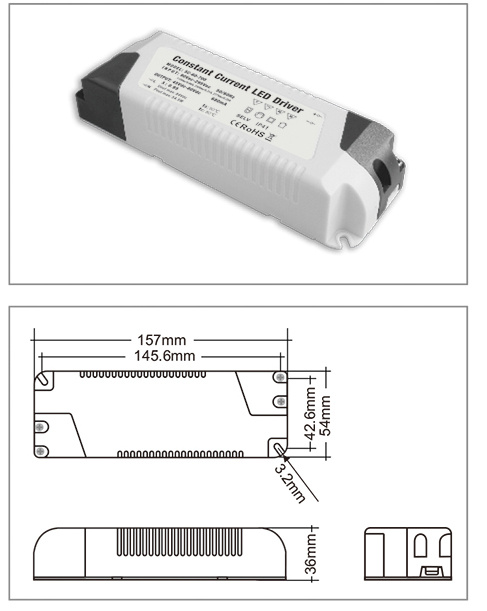

| Pack Sealing Size: |
L159*W58*H39mm |
| Brand: |
Vista |
Product Description

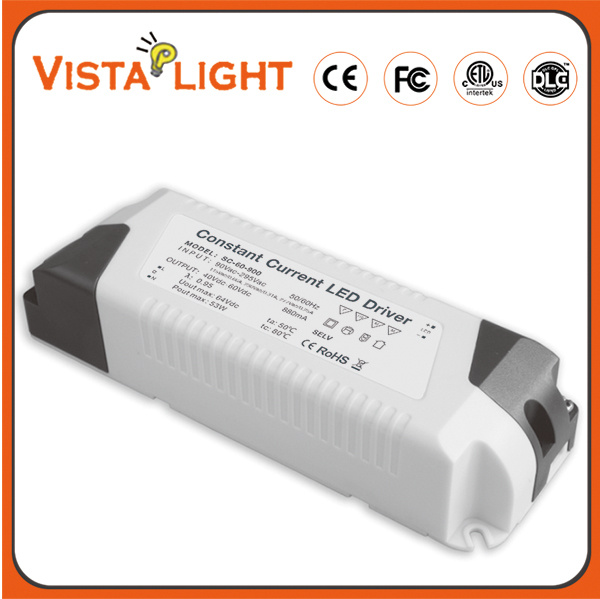

40V-60V power supply constant current led driver
Features:1.Full range AC input (up to 295VAC).
2.Active PFC funtion
3.Constant current design.

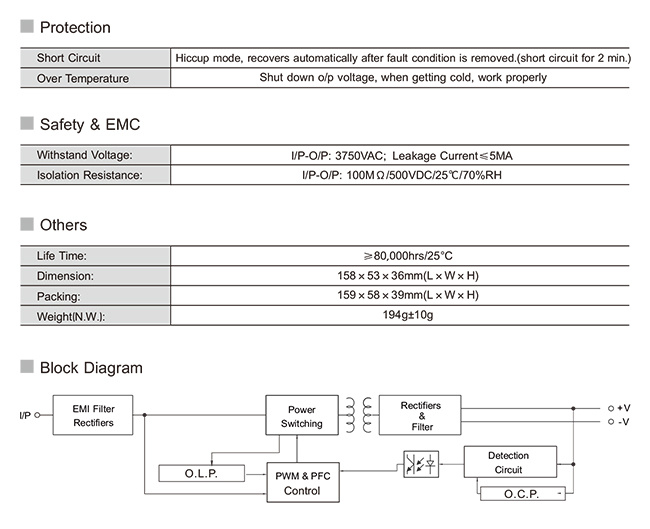

4.Short circuit and over-temperature protection
5.Natural air cooling.
6.Full protective plastic housing.
7.Class 2 power supply, no FG.
8.IP41 design.
9.100% full-load aging test.
10.Low cost.
11.High reliability.
12.Suitable for indoor dry/wet environments.
13.3-year warrantyElectrical Specifications | Model | SC-60-700 | SC-60-900 |
| Frequency: | 47-63Hz |
| Efficiency | ≥88% (test after working 30 minutes at full load) |
| Power Factor: | PF>0.96/115VAC , PF>0.95/230VAC, PF>0.92/277VAC at full load |
| AC Current (typ.) | 115VAC/≤0.66A, 230VAC/≤0.31A, 277VAC/≤0.25A |
| Input Voltage Range: | 90-295VAC 127-417VDC |
| Inrush Current(typ.) | Cold start 25A(twidth=60μs measured at 50% Ipeak) at 230VAC |
| Leakage Current | <0.5mA/240VAC |
| Rated Current | 680MA | 880MA |
| Operating Voltage Range | 45-80V | 40-60V |
| Current Accuracy | ±5% |
| Rated Power | 54.5w | 53w |
| Ripple & Noise (max.) | 3Vp-p (working voltage at full load) |
| No Load Output | ≤84VDC | ≤64VDC |
| Setup Time | 15VAC<2500ms,230VAC<1000ms at full load |

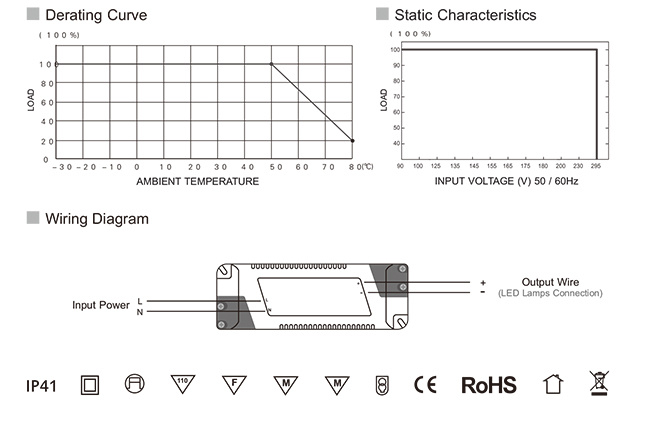

Environmental Specifications| Working Temp | -30~+60ºC(refer to "derating Curve") |
| Working Humidity | 20~95%RH,non-condensing |
| Storage Temp,Humidity | -40~+80ºC,10-95%RH |
| Temp.Coefficient | ±0.03%/ºC(0-50ºC) |
| Vibration | 10-500HZ,2G 12min./1 cycle,period for 72min,each along X Y Z axes |
Product Details
Our company
We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

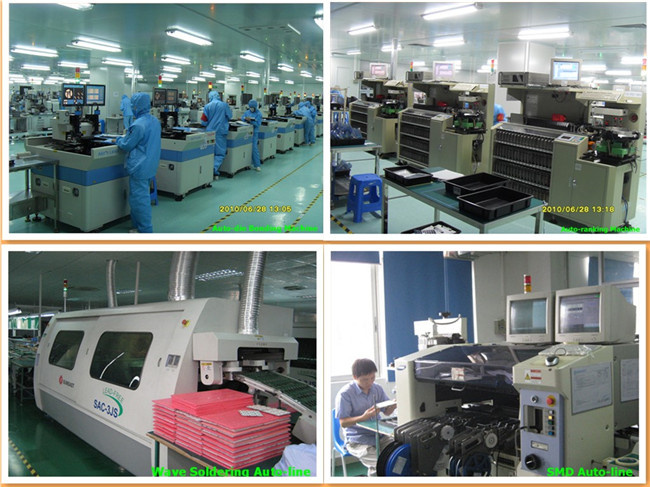

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.
We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.
Certification
