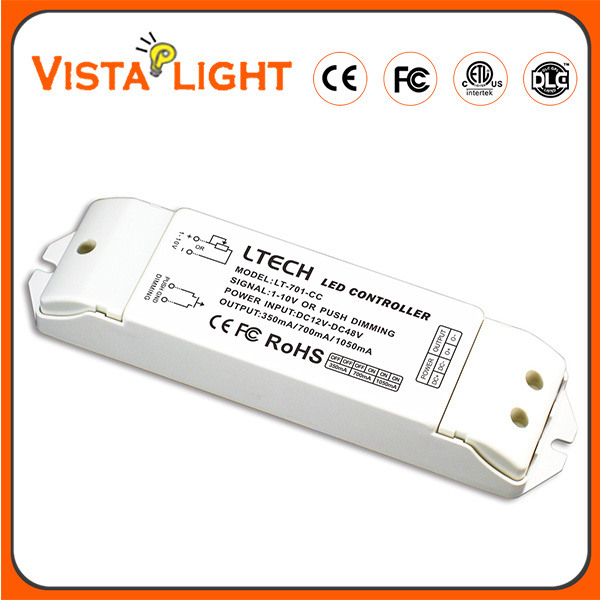

O-10V, 1-10V, 10vpwm Power Supply Constant Current LED Driver

Prod Model:	LED Dimming Driver LT-701-CC
Product Name:	LED Dimming Driver Lt-701-Cc
Product Size:	L175*W44*H30(mm)
Packing Size:	L178*W48*H33(mm)
Weight(G.W):	125g
Input Voltage:	DC12V-DC48V
Output Voltage:	DC3V-DC46V
Output Current:	Cc350/7001050mA*1CH
Dimming Range:	0-100%
Power Supply Chosen:	DC CV SMPS
Input Signal:	0-10V, 1-10V, 10PWM, Push Button
Usage:	Industry
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Pack Sealing Size:	L178*W48*H33(mm)
Brand:	Vista
Power Supply Voltage:	DC12V-DC48V

Product Description

LTECH developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems such as Lutron, Dynalite, Tridonic, Schneider, Clipsal, Osram, Philips, ABB, etc.

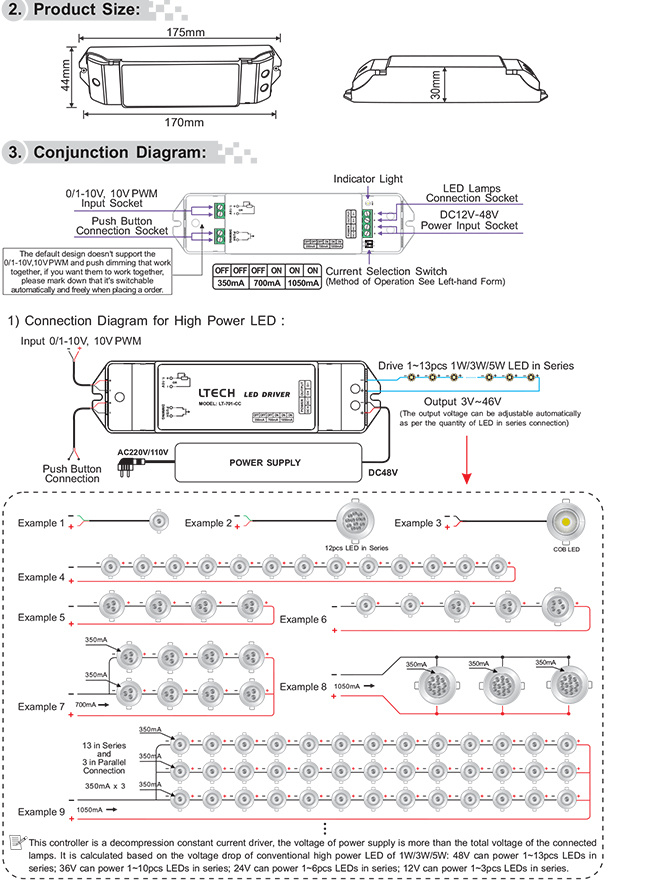

LT-701-CC is compatible with the active/passive O-10V, 1-10V, 10VPWM and the PUSH BUTTON insert dimming, optional with 3 in l current 350mA/700mA/1050mA, Support a wide range of the connection of 1-13pcs(1~50W) high power LED and ensure accurate current output automatically. With above advantage, one LT-701-CC could be the substitute of more than 10 models in the same kind, make it much more convenient for sales and installations.

LT-701-CC, 0-100% PWM dimming, output with the dimming curve that is more palatable to human vision, provide the user with more comfortable and natural lighting experience.

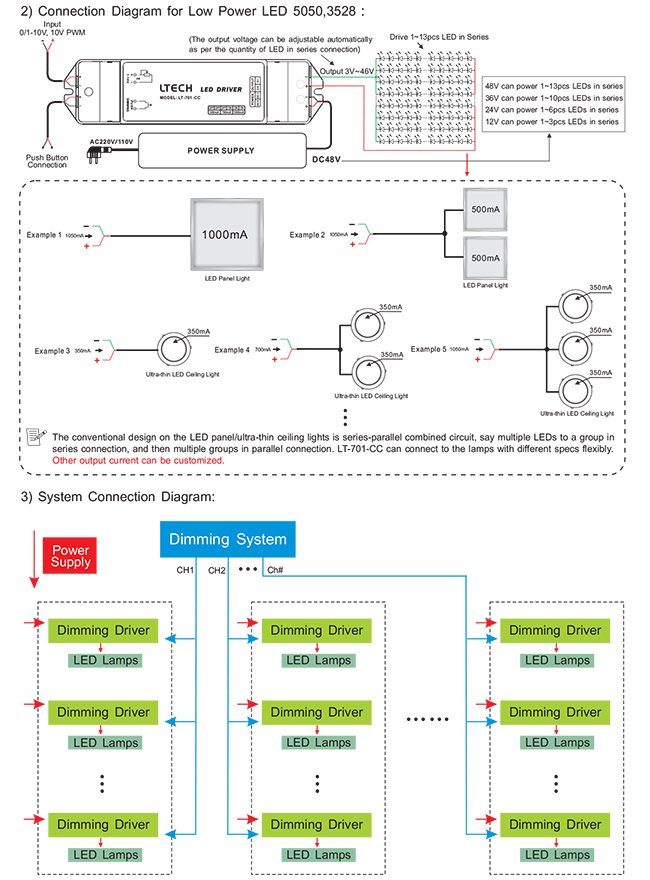

By working with our CV 0/1-10V dimming driver LT-701-10A, the basic issue that related LED projects and needs 0/1-10V dimming can be solved.


Technical Specs:


Model	LED dimming driver LT-701-CC
Output voltage	DC3V-DC46V
Input Voltage	DC12V~DC24V
Output Current	CC350/7001050mA*1CH
Dimming range	0-100%
Power supply chosen	DC CV SMPS
Input signal	0-10V,1-10V,10VPWM,push button
Temperature Range	-30ºC-55 ºC
Product Size	L175×W44×H30(mm)
Package Size	L178×W48×H33(mm)
Weight(G.W.)	125g

Product Details The Charging Methods for Remote Control
1. When charging, please connect USB cable to the mobile charger or computer with the USB interface.
2. The downside white light of 3 in l white LED indicator flickers while charging, and the upside white    indicator light is on, means the charging is finished. The remote control can be chargeable even at the OFF state, on which the indicator light is black.
3. No memory effect in the lithium battery of remote control. Follow the standard charging procedure, no need for overcharge for the first 3 times .
4. Indicator light flickers(the right side white indicator light is on) meaning low battery and need to be charged charging in low battery will affect life of battery.
5. The remote should be full charged and stored under low cold drying while a long time without being operated And please full recharge every 3 months.

Product Attention
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure    it is mounted in a water proof.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of    the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the        current. Please also ensure that the.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to    the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by         yourself.
  We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

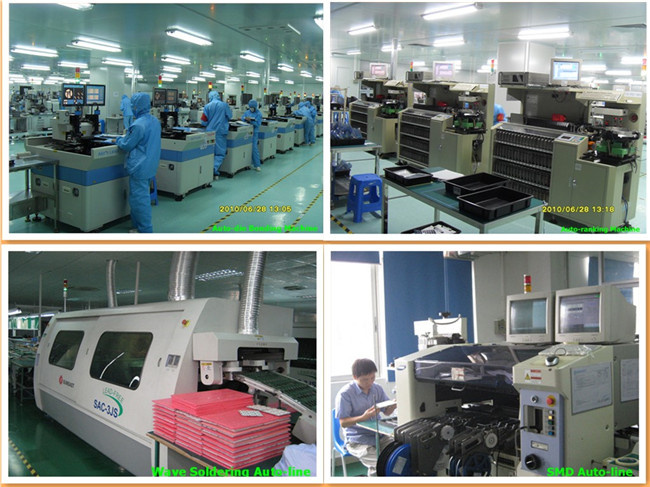

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.

We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.

Certification
 FAQ
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
