42mm 24V Brushless Servo DC Motor (42AES Series)

Name: 42mm 24V Brushless Servo DC Motor (42AES Series)
Brand: all-electronics-online.com
SKU: 733501292
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	US $ 23/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42AES Series
Insulation Class:	Class B or Higher on Request
Voltage:	up to 60V
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Number Of Poles:	4 or 8
Certification:	Ce, RoHS
Brand:	Accumos

Product Description

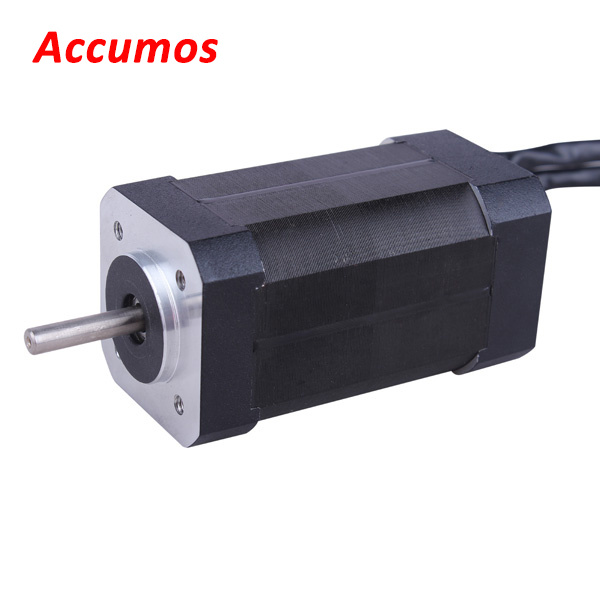

42AES Series DC Brushless Motor

Voltage: up to 60V
8 poles with three phase NEMA 17 flange winding
Insulation class B , higher insulation on request
Sintered Neo Magnet power range:31.4 ~94.2W

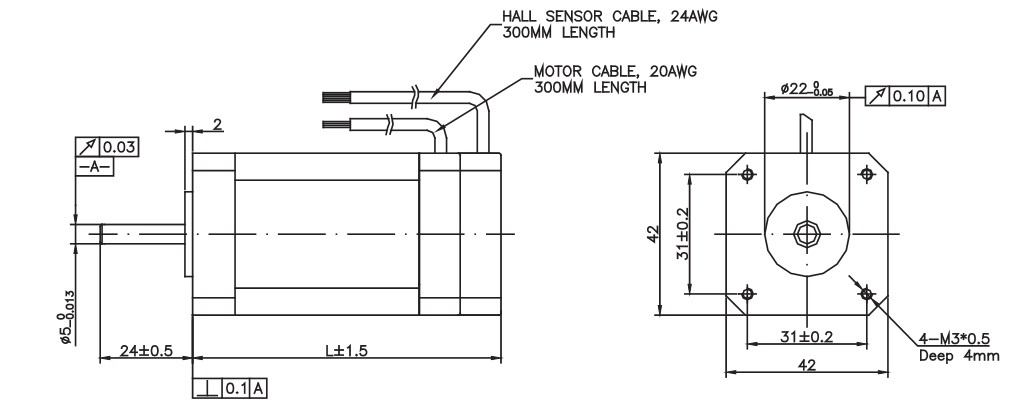

Mechanical

Specifications

Model	Unit	42AES100	42AES200	42AES300
Supply Voltage(reference) (Vs)	Vdc	24	24	24
Rated Continuous Torque (Tcr)	Nm	0.1	0.2	0.33
Rated Speed at Cont. Torque (Scr)	Rpm	3000	3000	3000
Rated Continous Stall Current (Ics)	A	2.25	4.8	7.8
Rated Continous Output Power (Po,c)	W	31	63	107
Rated Peak Torque (Tpr)	Nm	0.30	0.77	1.20
Rated Peak Current (Ipr)	A	7.18	20.27	30.77
Torque Constant (KT)	Nm/A	0.0513	0.0513	0.0513
Ke (Voltage Constant)	V/krpm	5.37	5.37	5.37
Terminal Resistance (Rmt)	Ω	2.4	0.98	0.62
Inductance (L)	mH	1.7	0.58	0.38
Insulation Class		B	B	B
Rotor Inertia	Kg.m²	2.90E-06	5.90E-06	8.90E-06
Motor Weight	Kg	0.36	0.55	0.65
Motor Length	mm	52	71	90

Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

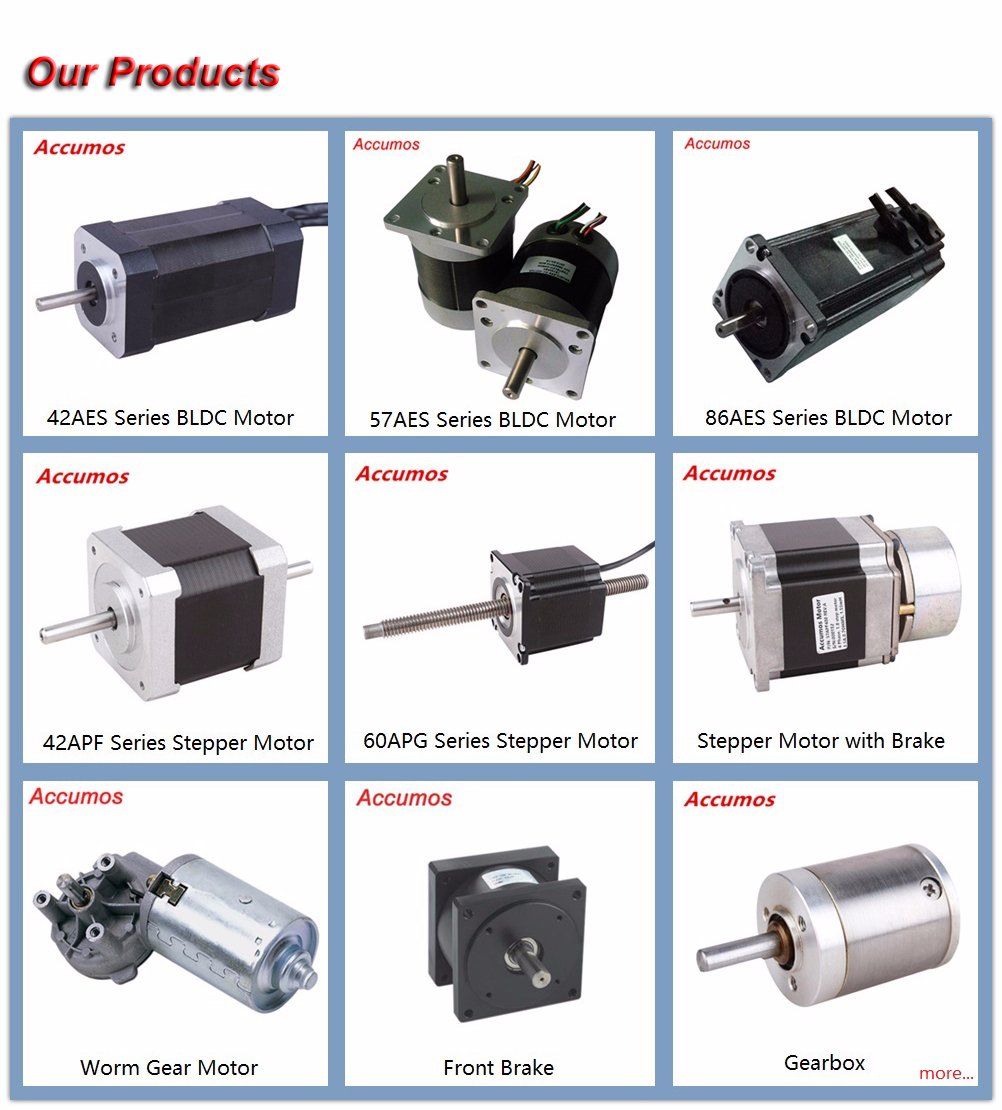

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
