86mm 310V DC Electric BLDC Brushless Motor (86AES Series)

Name: 86mm 310V DC Electric BLDC Brushless Motor (86AES Series)
Brand: all-electronics-online.com
SKU: 730878492
Availability: InStock
Rating: 4.4 (137 reviews)

Price:	US $ 40-72/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	86AES Series
Ingress Protection:	up to IP65 for Customized
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce, RoHS
Brand:	Accumos

Product Description

86AES Series DC Brushless Motor

8 poles with three phases
Servo application
Insulation class F
Mutiple Lines of encoder available
IP 65 class

Mechanical

Specifications

Specification	86AES100	86AES200	86AES300
Rated Voltage(VDC)	48	48	310
Rated Current(A)	6.1	12.2	2.8
Rated Speed(rpm)	3000	3000	3000
Rated Torque(Nm)	0.7	1.4	2.1
Peak Torque(Nm)	2.1	4.2	6.3
Torque Constant(Nm/A)	0.115	0.115	0.75
Rated Power(W)	220	440	660
Number of Poles	8	8	8
Length(mm)	97	124	150
Weight(Kg)	1.85	2.6	4

Characteristic Diagram

Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

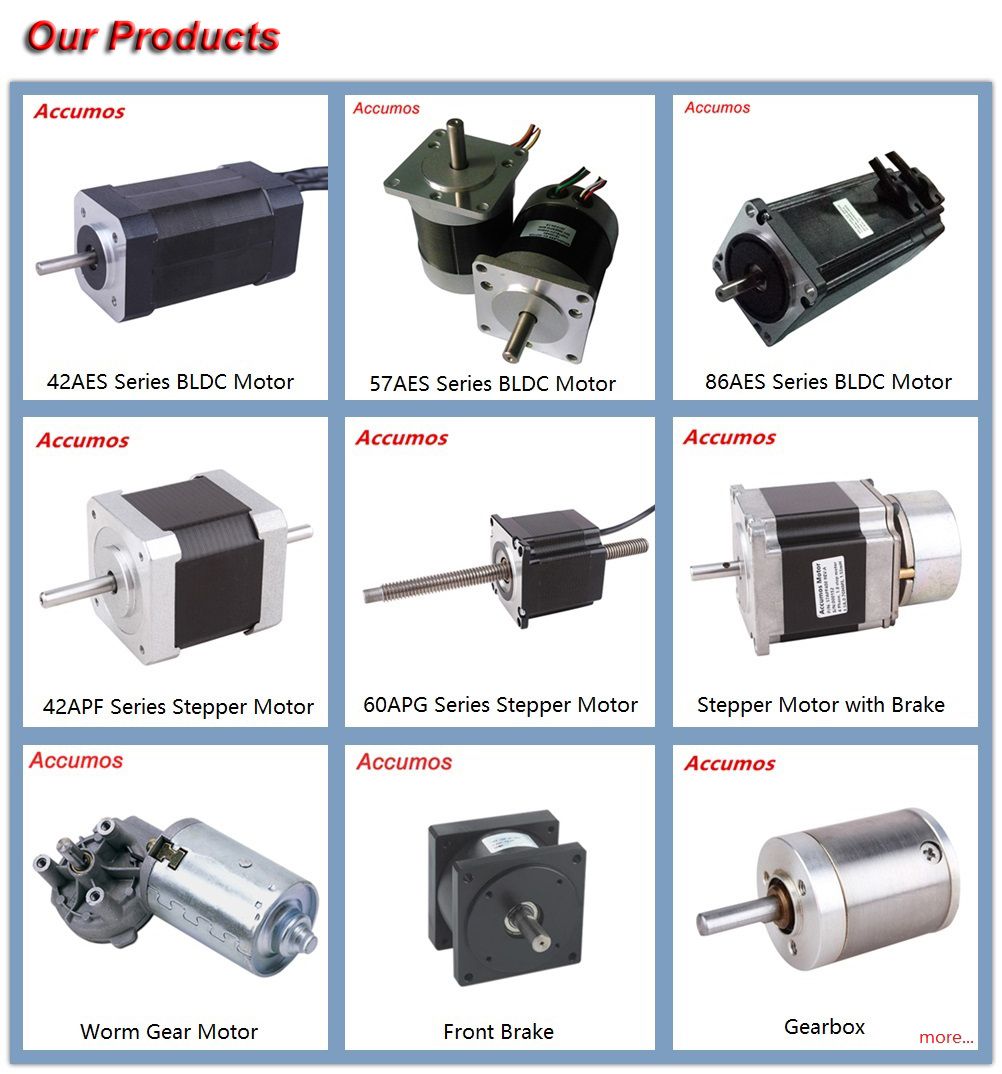

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
