57mm 1.8 Degree Stepping DC Electric Stepper Motor (57APF Series)

Name: 57mm 1.8 Degree Stepping DC Electric Stepper Motor (57APF Series)
Brand: all-electronics-online.com
SKU: 730712762
Availability: InStock
Rating: 4.7 (65 reviews)

Price:	US $ 9.5-10.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57APF Series
Step Angle:	1.8 Degree
Step Angle Accuracy:	±5%
Resistence Accuracy:	±10%
Inductance Accuracy:	±20%
Ambient Temperature:	-20 Until 50deg. C
Dielectric Strength:	500VAC with 1minute
Number Of Stator:	Four-Phase
Excitation Mode:	HB-Hybrid
Type:	Stepper Motor
Certification:	Ce, RoHS
Brand:	Accumos

Product Description

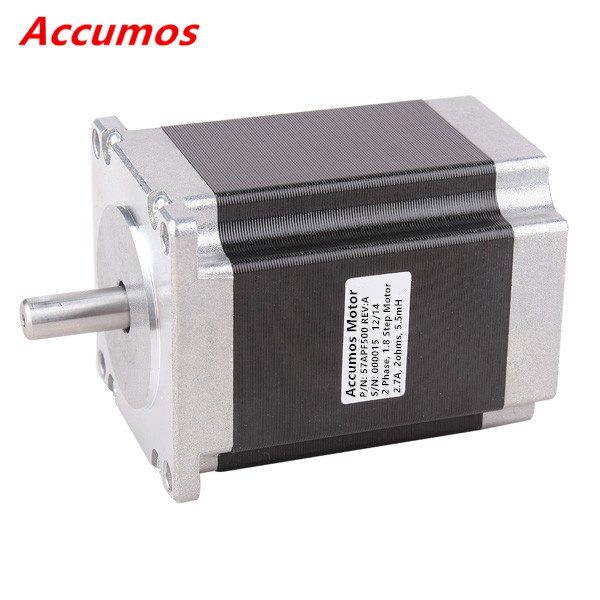

57APF Series Stepper Motor

Step Angle Accuracy:1.8°±5%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100M Ω Min.,At 500V
Dielectric Strength: 500VAC ,1S,2mA
Insulation Class: B

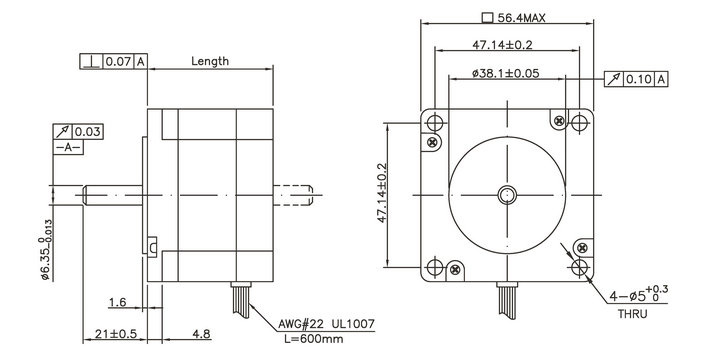

Mechanical

Specifications

Part No.	Phase Current (A)	Phase Resistance (Ohms)	Phase Inductance (mH)	Holding Torque (Ncm)	Detent Terque (Ncm)	No.of Wires	Rotor Inertia (g.cm²)	Length (mm)	Weight (g)
57APF010	1.3	3	5	41	2.6	4	135	41	420
57APF020	1.3	2.7	5.6	50	4	4	135	41	420
57APF024	2	1.2	3.2	55	4	4	135	41	420
57APF201	1	6.6	9	70.6	5.88	6	275	50	550
57APF204	1	5.5	16.5	83.3	5.88	4	275	50	550
57APF208	2	1.8	5.2	80	4	4	275	50	550
57APF222	2.8	0.83	2.2	100	3.6	4	275	50	650
57APF303	2	1.8	2.5	88.2	8.33	6	300	56	600
57APF316	4.2	0.35	0.66	110	6.3	6	300	56	700
57APF331	1.4	3.6	10.8	117	3.92	4	300	56	700
57APF417	2.1	2	6.5	161	6.8	4	480	78	1000
57APF420	1.4	4.5	14.4	175	6.8	4	480	78	1000
57APF423	2.5	1.5	4.4	150	7	4	480	78	1000
57APF431	5	0.25	0.95	140	7.85	4	480	78	1100
57APF490	4.2	0.5	2.2	170	6.8	4	480	78	1100
57APF504	2	3.8	10	248	12	4	800	115	1500
57APF505	2.7	2	5.5	220	12	4	800	115	1500
57APF513	2	7	32	300	12	4	800	115	1500
57APF522	6	0.5	2	280	12	4	800	115	1600

Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

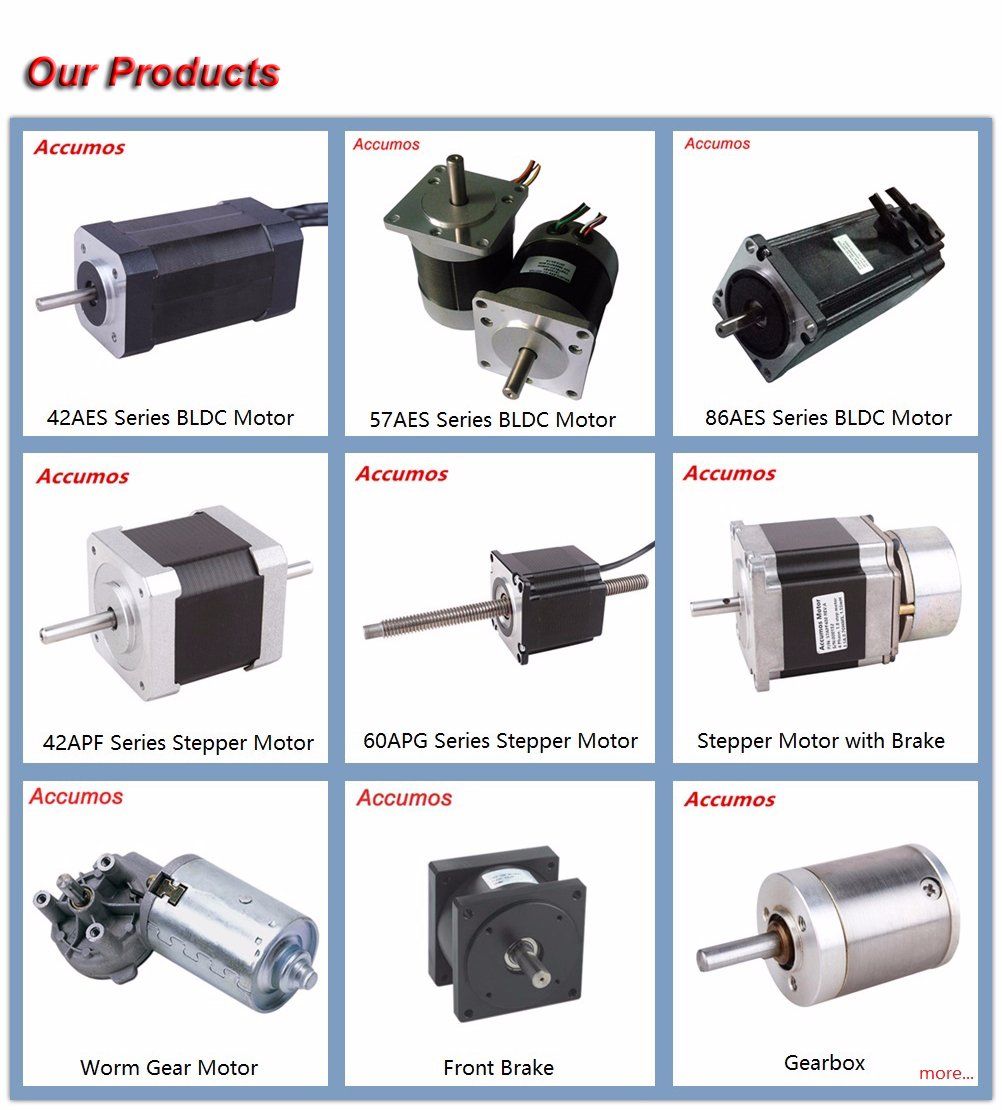

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
