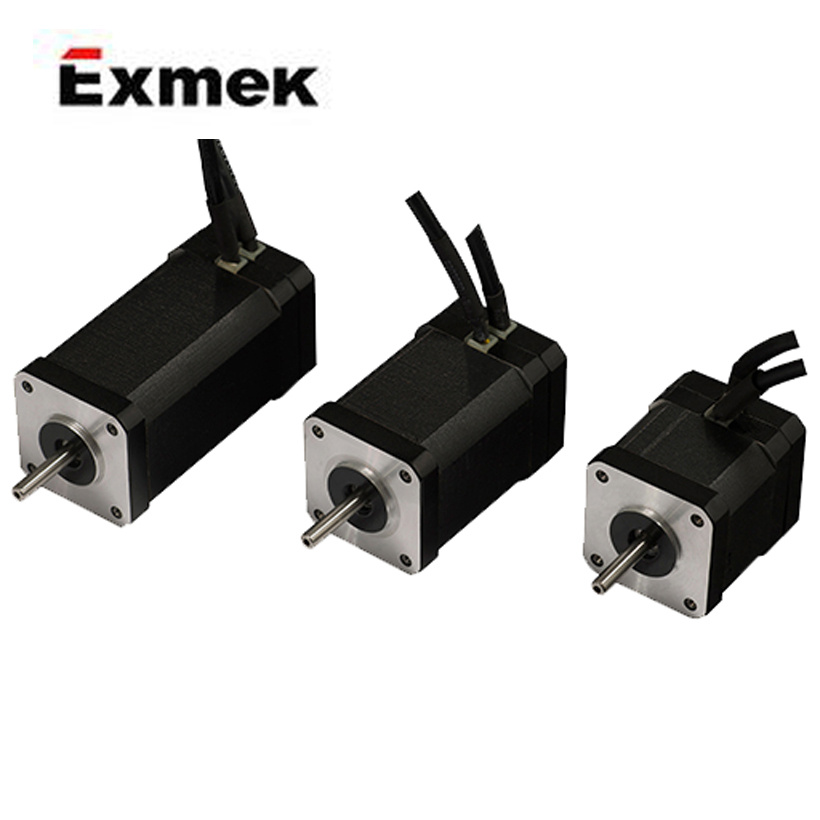

42mm DC Brushless Motor with 3000rpm 0.33 Nm (ME042AS300-7)

Name: 42mm DC Brushless Motor with 3000rpm 0.33 Nm (ME042AS300-7)
Brand: all-electronics-online.com
SKU: 832358005
Availability: InStock
Rating: 4.6 (113 reviews)

Price:	US $ 33/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ME042AS300-7
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Exmek

Product Description

General information

NEMA 17 flange
8-pole with three phases
12-slot design for low cogging
Insulation class-B, higher insulation class on requests
Sintered neomagnet
Integrated driver available

Specifications

Specifications	ME042AS300
Supply voltage (reference)	24V DC
Rated continuous torque	0.33 Nm
Rated speed at cont torque	3000 rpm
Rated continuous stall current	7.8 A
Rated continuous output power	107 W
Rated peak torque	1.2 Nm
Rated peak current	30.77 A
Torque constant	0.0513 Nm/A
Ke (voltage constant)	5.37 V/krpm
Terminal resistance	0.62 Ω
Inductance	0.38 mH
Insulation class	B
Rotor inertia	8.90E-06 kg.m²
Weight	0.65 kg
L	90 mm

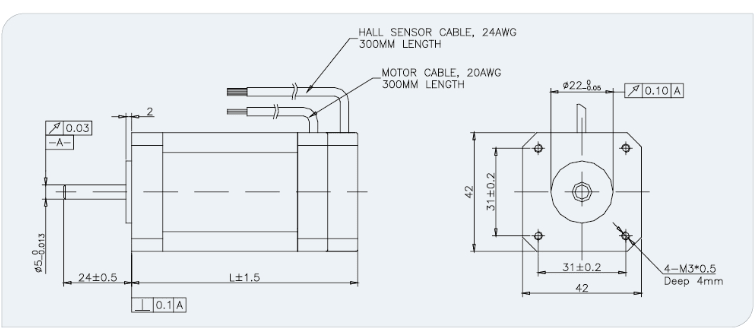

Mechanical

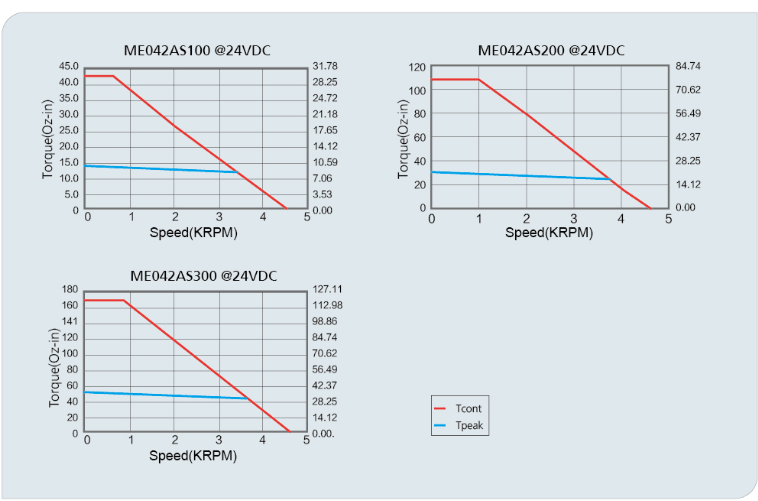

Characteristic diagram

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
