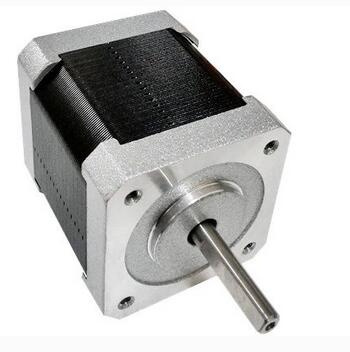

42mm Hybrid Stepper Motor

Name: 42mm Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 747356415
Availability: InStock
Rating: 4.5 (27 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BYGH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	42mm Hybrid Stepper Motor
Excitation Mode:	HB-Hybrid
Operate Mode:	Three Phase Double Beat
Type:	Magnetic-Electric

Product Description

Description of 42mm hybrid stepper motor,
1)Genaral Specification:
Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute

2)Techinical Specifications:

model	step angle	motor length	rated voltage	rated current	phase resistance	phase inductance	lead wire	motor weight
42BYGH201	1.8°	20mm	11.25V	0.45A	25Ω	9mh	6	0.1kg
42BYGH203	1.8°	20mm	6.57V	0.73A	9Ω	4mh	4	0.1kg
42BYGH610	1.8°	20mm	10.8V	0.4A	27Ω	17mh	4	0.1kg
42BYGH615	1.8°	26mm	2.4V	1.5A	1.6Ω	1.4mh	4	0.13kg
42BYGH616	1.8°	26mm	6.84V	0.76A	9Ω	4.8mh	6	0.13kg
42BYGH716	1.8°	26mm	12V	0.25A	48Ω	17mh	6	0.13kg
42BYGH721	1.8°	26mm	3.2V	0.75A	4.3Ω	4mh	4	0.14kg
42BYGH722A	1.8°	28mm	10.4V	0.4A	26Ω	10mh	6	0.14kg
42BYGH801	1.8°	28mm	7V	0.54A	13Ω	9.5mh	4	0.14kg

The spefications can be designed according to customers' requirements.

Longwaymotor welcomes you.

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
