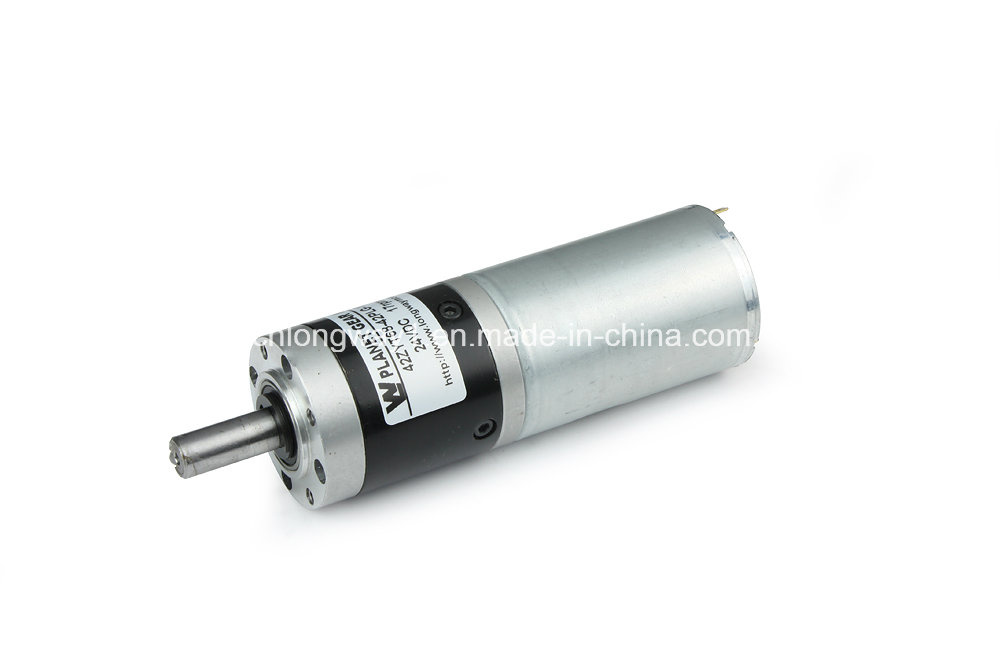

42mm Pm DC Planetary Gear Motor for Electric Power Tools

Name: 42mm Pm DC Planetary Gear Motor for Electric Power Tools
Brand: all-electronics-online.com
SKU: 774126085
Availability: InStock
Rating: 4.4 (109 reviews)

Price:	US $ 35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42ZYT68-42PLG100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	42mm
Premissible Load Range:	1n.M-10n.M
Application To:	Electric Garden Tools and Automatic Mover , Robot
Special Motor:	Small Size , High Torque , Easy Control etc
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

42ZYT68-42PLG100 PMDC PLANET GEAR
MOTOR
1. Diameter 42mm planetary gearbox has a rated load of 10NM
2. Choose 45mm gearbox

Motor Technical Data

Mo del	Rated Voltage VDC	No-load Speed r/min	No-load Current mA	Rated Speed r/min	Rated Torque mN.m	Output Power W	Pated Current mA	Stall Torque mN.m	Stall Current A
42ZYT68-2420	24	2000	0.15	1700	50	8.7	0.6	220	2.0
42ZYT68-2430	24	3000	0.17	2200	40	9.0	1.0	150	2.3

Gear motor Technical Data

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	51.5	51.5	51.5	51.5	51.5	64.5	64.5	64.5	64.5	74.5	74.5	74.5
No-load speed r/min	590	420	157	116	81	43	31	22	16	11	8.3	6.0
Rated speed r/min	460	330	121	89	63	33	24	17	12	9	6.5	5.0
Rated torque N.m	0.17	0.24	0.63	0.9	1.2	2.1	3	4.2	5.9	7.6	10	10
Max.permissible load in a short time	1.5	1.5	6	6	6	15	15	15	15	30	30	30

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	51.5	51.5	51.5	51.5	51.5	64.5	64.5	64.5	64.5	74.5	74.5	74.5
No-load speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1
Rated speed r/min	592	424	157	115	81	43	34	22	16	11	8.3	6.3
Rated torque N.m	0.14	0.19	0.5	0.68	0.97	1.7	2.4	3.4	4.7	6.1	8.5	10
Max.permissible load in a short time	1.5	1.5	6	6	6	15	15	30	30	30	30	30

*The specifications can be designed according to the customer's requirement !
