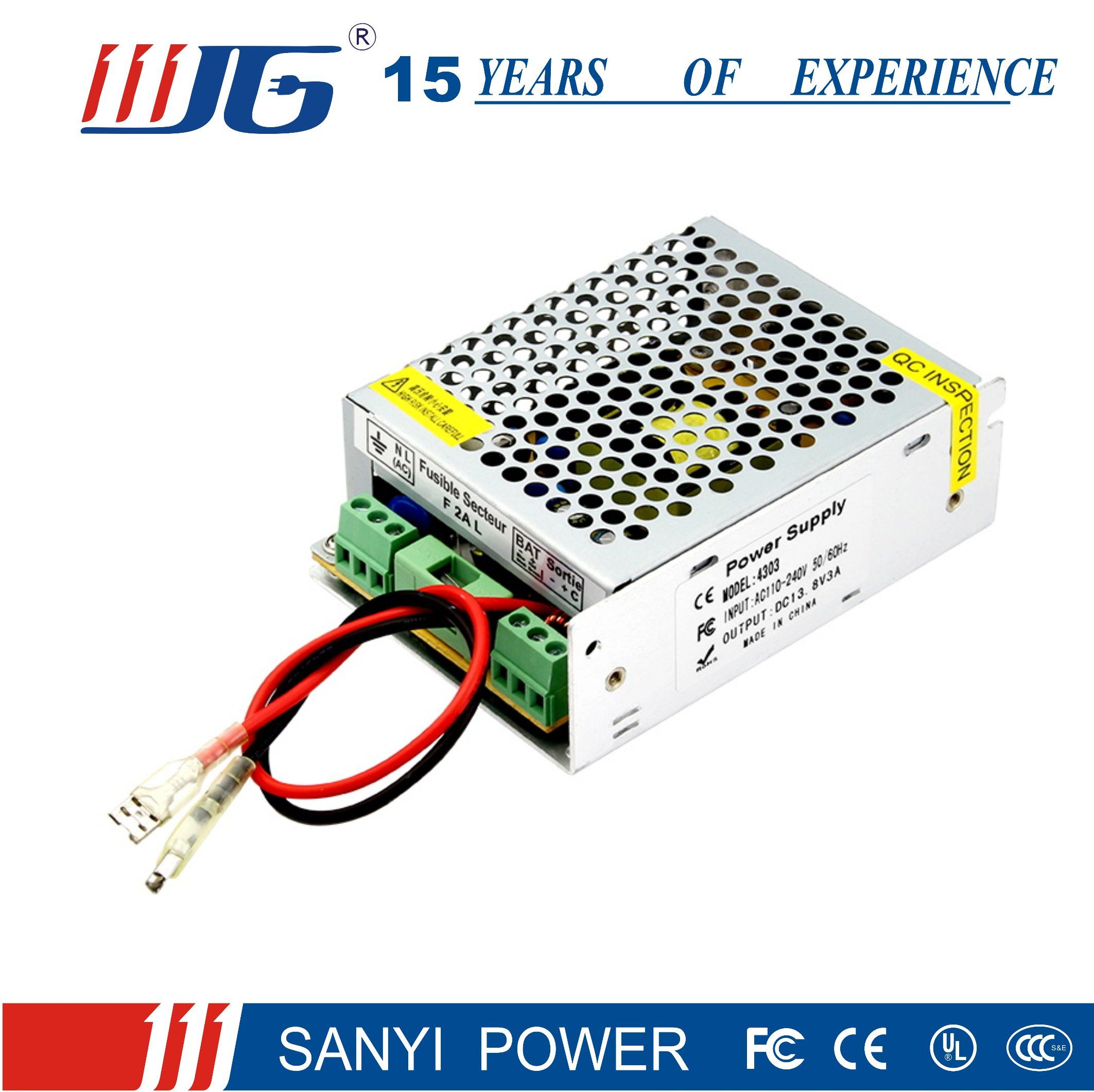

4303-12 EPS AC Power Power Transformer with Battery Charge
| Price: |
US $ 7-7.5/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
4303-12 |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Over Voltage,Short Circuit,Over Current, |
| Application: |
Security System/LED Lighting/Industry |
| Brand: |
Sanyi Power |
Product Description
Backup power supply 40.5W 13.5v Battery Charger UPS Function
1.Features:>Universal AC input/Full range
>Built-in EMI fliter
>High efficiency,Long life and high reliability
>Protections:Shortcircuit/Over Load/ Over Voltage/Over temperarture
>Charging overvoltage and undervoltage protection
>100% full load burn-in test
>LED indicator for power
>Can be customized according to user selctions(Current and Voltage can be adjusted)
Certificated by UL,TUV,CCC,CE,UL,CB,FCC,and RoHS2.Model No.| MODEL | 4301-12 | 4301-24 |
| | CH1 | CH2 | CH1 | CH2 |
| Output | DC Voltage | 13.5V | 13.5V | 27V | 27V |
| | Rated Current | 0-3A | 0-1 | 0-1.5A | 0-0.5A |
| | Current Range | 0~1.5A | / | 0~0.8A | / |
| | Charging Voltage | / | 13.5V | / | 27V |
| | Charge Current | / | 0~0.8A | / | 0~0.8A |
| | Rated Power | 40.5W | / | 40.5W | / |
| | (2)Ripple & Noise Max(Note2) | 120mVp-p | / | 120mVp-p | / |
| | Voltage Adj. Range | ±10% | / | ±10% | / |
| | (3)Voltage Tolerance(Note 3) | ±5% | / | ±5% | / |
| | (4)Line Regulation(Note 4) | ±0.5% | / | ±0.5% | / |
| | (5)Load Regulation(Note 5) | ±2.0% | / | ±2.0% | / |
| | ,Setup,Rise Time | 500ms,50ms/220Vac (Full load) |
| | (Typ.)Hold up time(Typ.) | 50ms/220Vac (Full load) |
| Input | Voltage Range | 100~240Vac |
| | Frequency Range | 50/60Hz |
| | (Typ.)Efficiency(Typ.) | 82% |
| | (Typ.)Ac Current(Typ.) | 0.5A/220Vac |
| | (Typ.)Inrush Current(Typ.) | 40A |
| | (Typ.)Leakage Current(Typ.) | 3.5mA |
| Protection | Over Load protection | 105%~150% |
| | | Protection type:Hiccup mode,recovers automatically after fault condition is removed |
| | Over Voltage protection | 78%~90% |
| | | Protection type:Hiccup mode,recovers automatically after fault condition is removed |
| | Over Shoot protection | Protection mode: the device up mode, after removing the abnormal conditions can be automatically restored |
| Features | Features Introduction | Battery floating long-line, high charging efficiency, battery saturation can be up to 90% |
| | | Stoped to prevent overcharging, effectively extending the battery life |
| | | Mains / battery automatic switchover time is very short, without staff on duty |
| | | Can directly start the EPS batteries to meet emergency needs of users |
| Environment | Working Temp | -10ºC~60ºC |
| | Working Humidity | 20~90%RH,non-condensing |
| | Storage Temp,Humidity | -20ºC~75ºC 10~98%RH,non-condensing |
| | Temp. Coefficient | ±0.03%/ºC(0~50ºC) |
| | Vibration | 10~500Hz,5G 10/,X,Y,Z 60 10Min/1 cycle,period for 60min,each along X,Y,Z axes |
Safety &
EMC(Note 7) | (6)Safety Standards(Note 6) | GB4943,EN60950 |
| | Withstand Voltage | I/P-O/P:2.5KVAC I/P-FG:1.5KVAC O/P-SFG:1.5KVAC |
| | Isolation Resistance | I/P-O/P I/P-FG O/P-FG:100M Ohms/500VDC/25ºC/70%RH |
| | EMI Conduction Radiation | Compliance to :EN55022, EN61000-3-2,3, FCC part15,GB9254 class B,GB17625.1 |
| | EMS Immunity | Compliance to :EN61000-4-2,3,4,5,6,8,11,Alight industry level, criteria A |
| Others | MBTF | ≥100000h. |
| | Dimension/Packing | 91*52*30mm(L*W*H)/ 0.18KG;24pcs/2.6Kg |

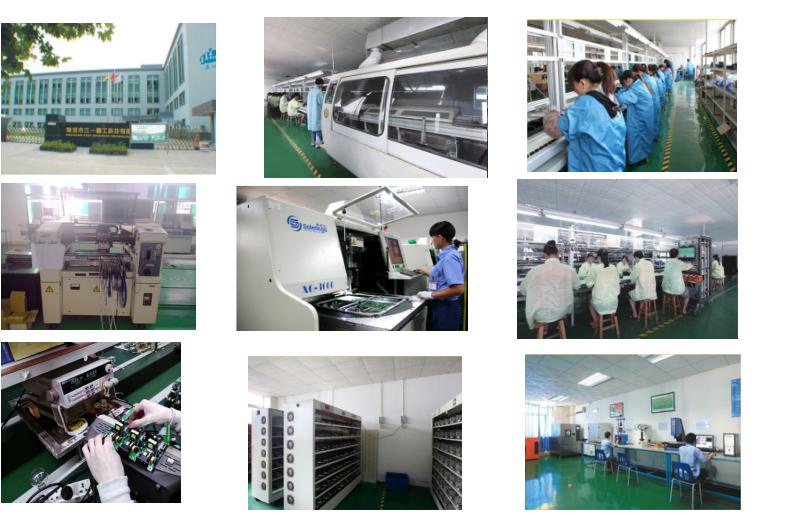

4.Factory Profiles
5.Certificate6.ContactSHENZHEN SANYI TECHNOLOGY CO.,LTD Web: www.szsanyi.com
Attn:Ruby
Phone+86 18688739138
Tel: +86 755 28986673
Add: Floor 4, Block 1,HongJiaTai Industrial Area, XinTun Village,AiLian Community, LongGang District,Shenzhen 518172,China
SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.
We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.
We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
