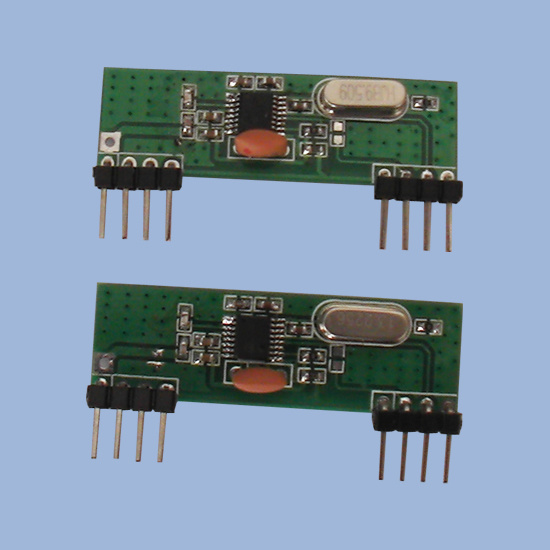

433.92MHz RF Receiver Board

433.92MHz RF Receiver Board
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 2000/Piece
Pay Type: T/T
Prod Model: JJ-JS-052A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand: Giant
Frequency: 433.92MHz or 315MHz
Suplly Voltage. Vdd: 5V
Payment: Tt,Paypal,Wu
Port: Xiamen
Delivery Day: 25 Days

Product Description

Specifications:

*  Rf Receiver Module
*  frequency 433.92mhz or 315mhz
*  5V superheterodyne receiver module
*  steady sensitivity

Product name Receiver (433.92MHZ)
Module No. JJ-JS-052A
Parameter  specification Unit Condition
  Min Type Max
Frequency  433.72 433.92 434.02 Mhz
Receiver Sensitivity -111 -111 -111 dBm
Data Rate 10 10 Kb/s
Suplly Voltage. VDD 2.4 5 5.5 V DC
Current 2.7 3 3.2 mA
Operating Temperature -40   +65 º C

Product name Receiver (315MHZ)
Module No. JJ-JS-052A
Parameter  specification Unit Condition
  Min Type Max
Frequency  314.8 315 315.2 Mhz
Receiver Sensitivity -107 -107 -107 dBm
Data Rate 10 10 Kb/s
Suplly Voltage. VDD 2.4 5 5.5 V DC
Current 2.7 2.9 3.1 mA
Operating Temperature -40   +65 º C
