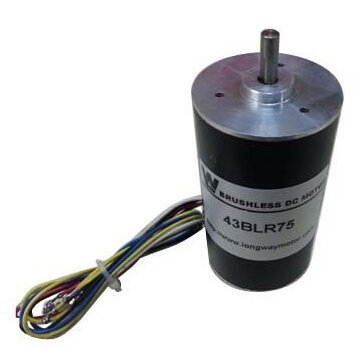

43blr BLDC Motor

Name: 43blr BLDC Motor
Brand: all-electronics-online.com
SKU: 670988265
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	43BLR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Certification:	CE
Brand:	Longway

Product Description

Application: High-performance motion control
with small power, such as industrial robot, CNC Machine,
manned spacecraft, advanced home appliance, etc.
Motor Specifications:

Type	43BLR3030S12	43BLR3030S24	43BLR2030S12	43BLR2030S24	43BLR1530S12	43BLR1530S24
Voltage	12V	24V	12V	24V	12V	24V
Rated power	30W	30W	20W	20W	15W	15W
Rated torque	0.096N.m	0.096N.m	0.064N.m	0.064N.m	0.048N.m	0.048N.m
No load speed	4000rpm	3700rpm	4000rpm	3700rpm	4000rpm	3700rpm
No load current	<0.6A	<0.4A	<0.5A	<0.4A	<0.4A	<0.4A
Load speed	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm
Load current	3.85A	1.926A	2.56A	1.28A	1.92A	0.96A
Hall(Y/N)	Both	Both	Both	Both	Both	Both
Life(Hours)	>5000	>5000	>5000	>5000	>5000	>5000
Length	80mm	80mm	70mm	70mm	60mm	60mm
Internal drive	Yes	Yes	Yes	Yes	Yes	Yes
Internal driver length	20mm(back cover type)	20mm(back cover type)	20mm(back cover type)	20mm(back cover type)	20mm(back cover type)	20mm(back cover type)
Weight	500g	500g	450g	450g	410g	410g
The specifications can be designed according to customer's requirements!
