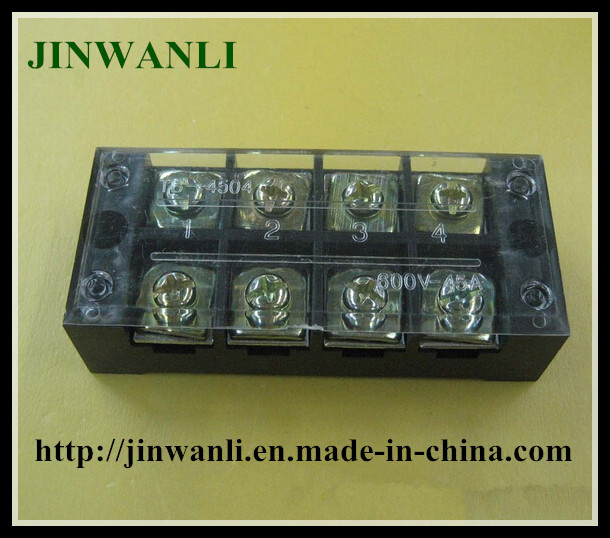

45A Fixed Tb-4504 Terminal Block

Name: 45A Fixed Tb-4504 Terminal Block
Brand: all-electronics-online.com
SKU: 761869285
Availability: InStock
Rating: 4.3 (90 reviews)

Price:	US $ 0.19/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB-4504
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection

Product Description

Specifications

TYPE	Current	Voltage		Insulation resistance	Wire section
TB-4504	45A	600V		100MΩ	0.5-2.5mm²
SIZE/length/wide/high			863821mm

Molded from UL94-V2 material with excellent flame- and shock-resistance

Sectional or one-piece construction. Easy and Flexible to form multipole assembly.
Panel Mounting is available.

Protective Cover come with Terminal Blocks for Free. No Marker Strip needed. (Molded Printed).
Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

TB Series Terminal Block are Panel Mounted Terminal Block , the basic color is black. The product color can be changed according to the customer requirements. There are reserved install holes on both sides. Load current can be 15A, 25A, 35A.

The products are with a Protective Cover, whose materials are PS, this makes the products are durable. Marker Strip is not required, it is mold printed.

Data sheet

Product specification	Rated current (A)	Pole number(A)	Mounting size (mm)	Length/Breadth/Height (mm)	Crimping terminal (mm)
TB-1503	15	3	36	47/22/15.5	M3
TB-1504	15	4	45	56/22/15.5	M3
TB-1505	15	5	54	65/22/15.5	M3
TB-1506	15	6	63	74/22/15.5	M3
TB-1510	15	10	99	110/22/15.5	M3
TB-1512	15	12	153	164/22/15.5	M3
TB-2503	25	3	45	56/30/17	M4
TB-2504	25	4	57	68/30/17	M4
TB-2505	25	5	69	80/30/17	M4
TB-2506	25	6	81	92/30/17	M4
TB-2510	25	10	99	110/22/15.5	M4
TB-2512	25	12	117	128/22/15.5	M4
TB-4503	45	3	58,5	89.5/68/21	M5
TB-4504	45	4	75	86/38/21	M5
TB-4505	45	5	91.5	102.5/38/21	M5
TB-4506	45	6	108	119/38/21	M5
TB-4510	45	10	174	185/38/21	M5
TB-4512	45	12	207	218/38/21	M5
TC-603	60	3	60.5	84.5/54.5/31.5	M6
TC-604	60	4	82.5	113/54.5/31.5	M6
TC-605	60	5	118	129/54.5/31.5	M6
TBC-1003	100	2	75.5	86.5/43.5/35	M6
TBC-1004	100	4	96	108/43.5/35	M6
TBC-1006	100	6	140	153/43.5/35	M6

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
