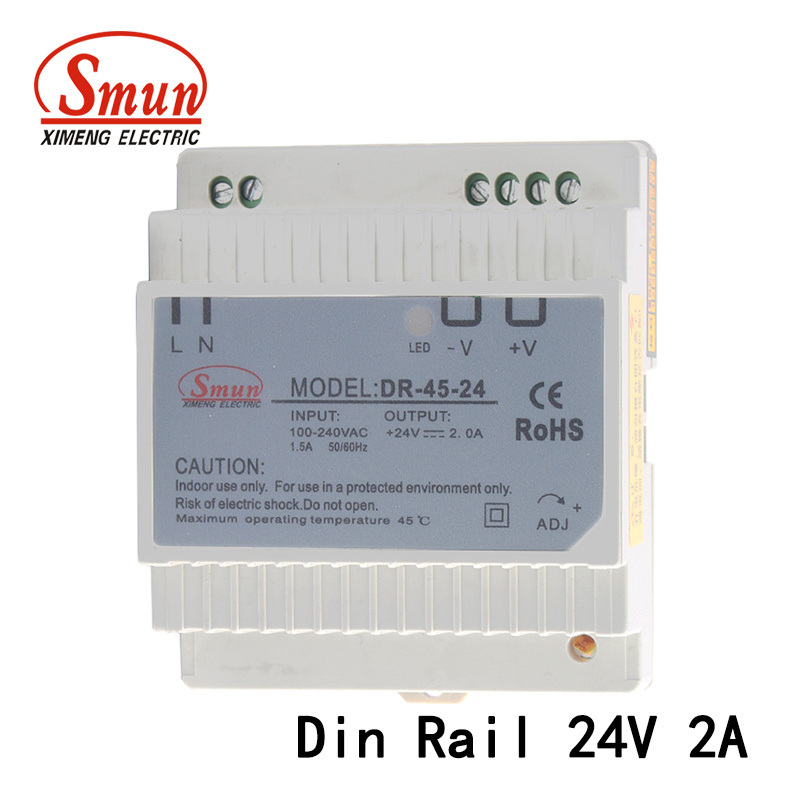

| Prod Model: |
DR-45-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
45W |
| Input: |
90-260VAC 120-370VDC |
| Output: |
24VDC 2A |
| Size: |
97*78*55mm |
| Weight: |
0.4kg |
| Advantage: |
OEM Factory |
| Working Temperature: |
-10~+60 Degree C |
| Efficiency: |
80% |
| Tolerance: |
1% |
| DC Adjust: |
10% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Input Voltage: |
85~264VAC |
| Brand: |
Smun |
Product Description
Specifications
Features:
1) High efficiency, low operation temperature
2) Can be installed on DIN Rail
3) 100% full load burn-in test
Features:
1) Universal AC input full range
2) Protection: Overload, short circuit, over voltage
3)Cooling by free air convection
4)Can be installed on DIN Rail TS-35/7.5
5)Isolation Class II
6)LED indicator for power on
7)100% full load burn-in test
8) Competitive price, high reliability
9) Dimensions: 78 x 93 x 56mm
10) CE, RoHS certified
| MODEL | DR-45-5 | DR-45-12 | DR-45-15 | DR-45-24 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 5A | 3.5A | 2.8A | 2A |
| RATED POWER | 25W | 42W | 42W | 48W |
| RIPPLE&NOISE | 100mVp-p | 200mVp-p | 240mVp-p | 480mVp-p |
| VOLTAGE ADJ.RANGE | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% |
| SETUP,RISE TIME | 100ms,30ms/230VAC 100ms,30ms/115VAC at full load |
| HOLD UP TIME(TYP.) | 90ms/230VAC 12ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85-264VAC 120-370VDC |
| FREQUENCY RANGE | 47-63HZ |
| EFFICIENCY(Typ.) | 72% | 77% | 77% | 80% |
| AC CURRENT(Typ.) | 1.5A/115VAC 0.75A/230VAC |
| INRUSH CURRENT | COLD START 30A/115VAC 60A/230VAC |
| PROTECTION | OVERLOAD | 105-150% RATED OUTPUT POWER |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| OVER VOLTAGE | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.25V | 27.6V-32.4V |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| ENVIRONMENT | WORKING TEMP | -10~+60°C |
| WORKING HUMIDITY | 20-90%RH non-condesing |
| STORAGE TEMP,HUMIDITY | -20~+85°C,10-95%RH |
| TEMP.COEFFICIENT | ±0.03%°C(0-50°C) |
| VIBRATION | 10-500HZ |
| SAFETY&EMC | SAFETY STANDARD | CE RoHS |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH |
| EMI CONDUCTION&RADIATION | Design refer to GB4943,UL60950,EN60950 |
| EMC STANDARD | Design refer to GB9254,EN55022 Class A |
| DIMENSION | L93*W78*H67mm |
| PACKING | 0.31kg,48pcs/16.1kg |
