FSP-Powerland Technology Inc. >> 45W Single Port USB Mini High-Efficency Power Adapter Wall Charger

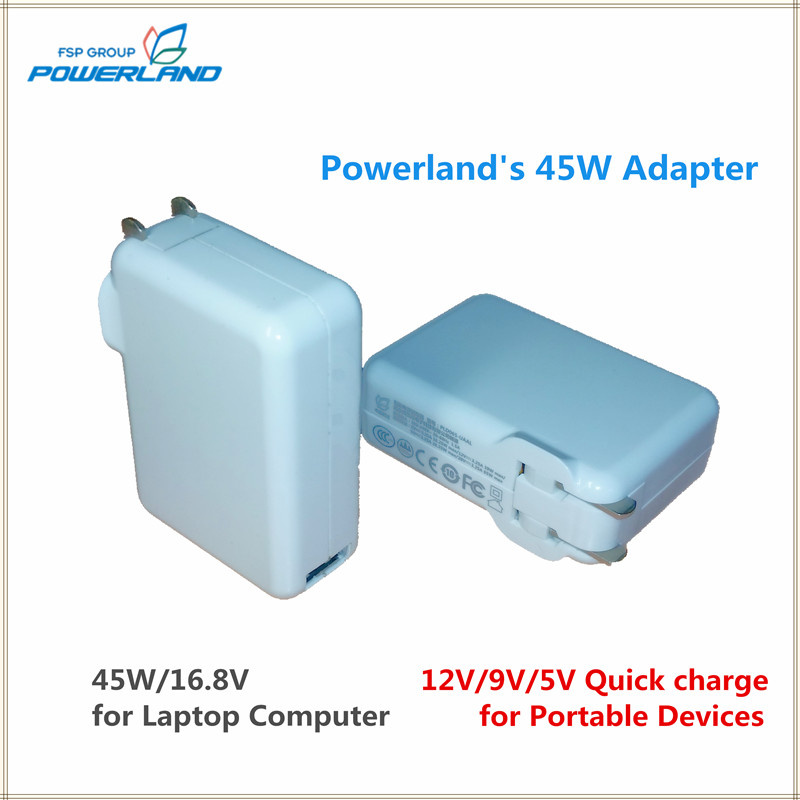

45W Single Port USB Mini High-Efficency Power Adapter Wall Charger

45W Single Port USB Mini High-Efficency Power Adapter Wall Charger
Price: US $ 16-17/Piece
Min Order: 200/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PLD045-UAAA
Output Power: 45W
Input Voltage: 90~264VAC
Output Voltage: 16.8/12/9/5V
Usage: Phone
Output Type: DC
Connection: Plug In
Certification: Ce
Bluetooth Standard: N/a
Brand: Powerland

Product Description

45W Single port USB Mini High-Efficency Power Adapter Wall Charger

Features

Compact & Light
110g only
Flipping AC plug
1.8m soft DC cable
Universal AC input voltage


Safe
3kV isolation from AC
0.25mA max.leakage current
Low radiation:complying to EN55022/CISPR22


Eco-Friendly
Complying to Energy Star
Efficiency up to 92.5%
0.2W no-load consumption


Reliable
2-year warranty
100,000 hours MTBF
100% tested by manufacturer


Intelligent
Computer/portable device auto identification
Quick charging compatible
DC cable voltage drop compensation


Specifications

Input Voltage

90~264Vac

Output Power

45W

Output Voltage

16.8/12/9/5V

Regulation model of output voltage

USB private wire + Quick Charge 2.0

USB Port quantity

1

The biggest stand-up output current

3.25A

The maximum total output current

3.25A

Support the laptop type



Support the output voltage of laptop

16.8V

Ambient Temperature

0~40oC

Dimension

69.5x49.5x24.3mm

Protections

OVP, OTP, OCP, SCP

Comply with safety standards

EN60950-1, TUV60950-1, UL60950-1, GB4943.1

Electromagnetic compatibility

EN55022 B, EN55032 B, GB9254 B
