48-Core Singlemode Non-Armored Single-Jacket Stranded Loose Tube Fiber Optic Cable

Name: 48-Core Singlemode Non-Armored Single-Jacket Stranded Loose Tube Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 819839925
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	US $ 1.2/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY-OS2-48F
Od:	10 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	48 Cores
Sheath Material:	LSZH

Product Description

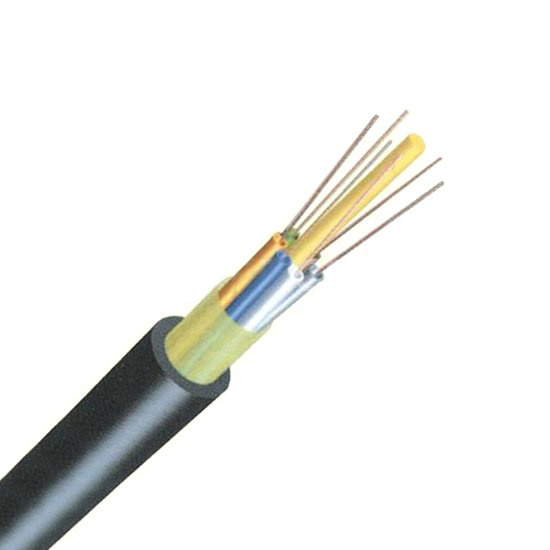

48 Fibers SM OS2, Non-Armored Single-Jacket, Stranded Loose Tube, FRP Strength Member, Waterproof Outdoor Cable

GYFTY non-armored stranded loose tube cable features FRP as the central member, ensuring the resistance to electromagnetic interference. High strength loose tube is hydrolysis resistant and the tube filling compound ensures a critical protection of the fiber. The water-blocking material between a single polyethylene (PE) jacket and the loose tube is applied to keep the cable compact and watertight. It is suitable for aerial and duct installation, especially operating in electrical system or frequently lighting areas.

Cable Type	Non-Armored Outdoor	Fiber Count	48 Fibers
Construction	Stranded Loose Tube	Fiber Type	Singlemode G.652B
Outer Jacket Material	PE	Jacket Color	Black
Cable Diameter	10mm	Weight	89kg/km
Central Strength Member	FRP	Application	Aerial and Duct
Tensile Strength(long/short term)	400/1000N	Crush Load(long/short term)	300/1000 (N/100mm)
Bending Radius(long/short term)	10D/20D(mm)	Operating/Storage Temperature	-40 to +60°C

Features and Applications

Low dispersion and attenuationLight weight and small diameter, easy to layExcellent mechanical and temperature performanceFRP ensuring resistance to electromagnetic interferenceWater blocking system ensures reliable waterproof performanceNon-metal central strength has an excellent anti-electromagnetic ability

Aerial & duct applicationOutdoor distributionLong haul networkingTrunking lines direct to telecommunications closetAccess network and local network in high electromagnetic interfering and frequently lighting areas

Stranded Loose Tube Structure for Duct and Aerial Application

Cables for outdoor applications are engineered to withstand the more demanding conditions seen outside, from environmental extremes to mechanical forces. Non-armored stranded loose tube GYFTY is outside plant cable suitable for use in duct or aerial-lashed applications. With non-metallic strength member, it is more suitable in electrical system or frequently lighting areas.

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
