48V 10A DC Module Switching Power Supply with Ce, UL

Name: 48V 10A DC Module Switching Power Supply with Ce, UL
Brand: all-electronics-online.com
SKU: 726787832
Availability: InStock
Rating: 5 (149 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR4810B
Efficiency:	>90%
Input Frequency:	45~65Hz
Power Factor:	0.98
Output Voltage:	42~58VDC
Output Current:	10A
Stabilized Voltage Precision:	±1%
Operating Temperature:	-20~55°c
Storage Temperature:	-40~+70°c
Weight:	1.45kg
Humidity:	5~95%
Output Type:	Single
Warranty:	2 Years
Certification:	ISO
Output Power:	540W
Input Voltage:	90~290VAC

Product Description

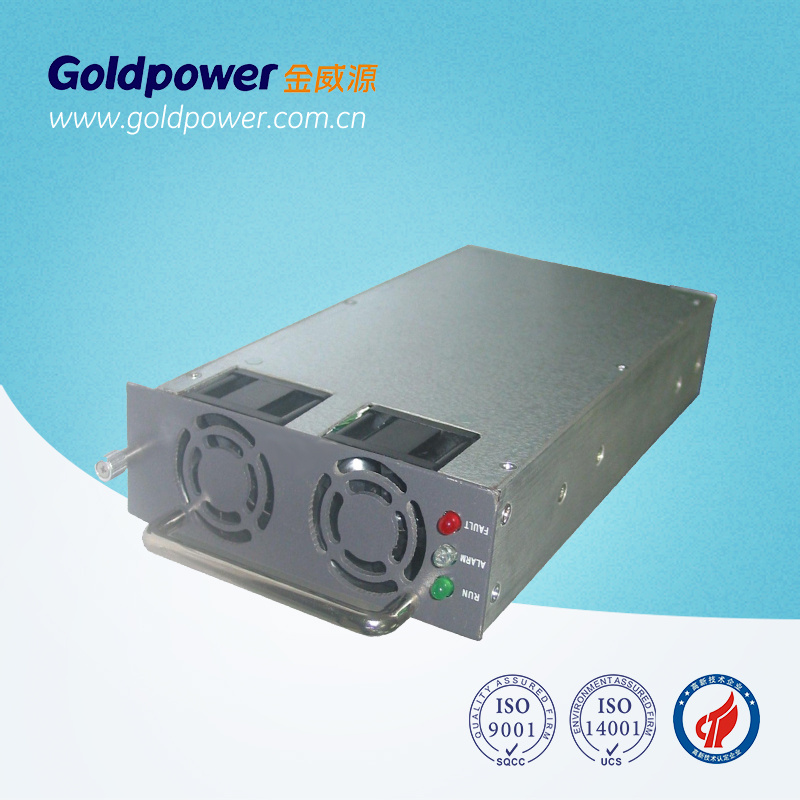

48V 10A Electric Vehicle Charger is Rectifier Charging Module Power Supply with CE,UL

Features:

1. Ultra high power density up to 25 W/in³, compact structure.

2. Soft-switching technology, high efficiency more than 96%.

3. Leading APFC tech (active power factor correction), power factor > 0.98

4. Multiple protection and safety regulation (CE/UL)

5. Supports hot plugging.

6. Remote control switching

7. Customized output interface available,with communication port RS485

8. Paralleled work available via current sharing bus

9. THD≤5%

10. Wide operating range:-20~+55ºC.

Application:
1. EV charger,bus,and other vehicles.
2. 48V distributed power system
3. Ethernet
4. Exchange
5. LAN,MAN
6. Sever
7. Indoor wireless
8. Telecom equipment

Specification:

Model	GPR4810B
Power	800W
Efficiency	>90%
Input voltage	90~280Vac
Input frequency	45~65Hz
Input current	6.8A
Power Factor	0.98
Output voltage	36~58Vdc
Output current	15A
Regulation	±1%
Ripple+Noise(Vp-p)	200mV
Operating temperature	-20~+55ºC
Storage temperature	-40~+70ºC
Humidity	5~95%
Cooling	Forced cooling
Acoustic noise	≤55dB
MTBF	≥150,000 hours
Turn-on time	3~8S
Current-sharing	±5%
Temperature coefficient	±0.02%/ºC
Dimensions(LxWxH)	242.5x102.7x88.1(mm)/9.55x4.04x3.47(in.)
Weight	<2.8KG
Protection	Input over/voltage,output over voltage,output limited current,short circuit,

About us:

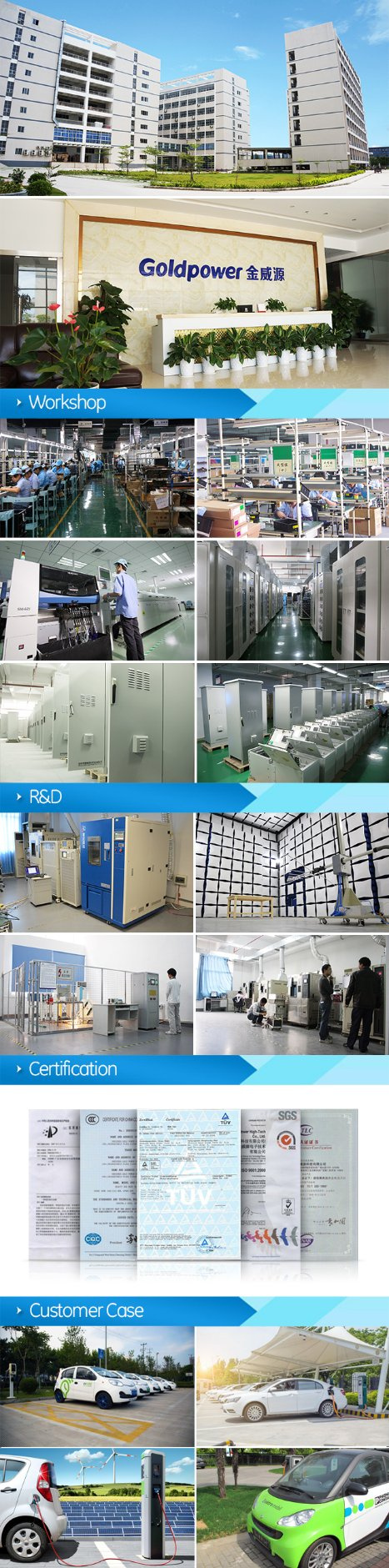

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
