48V 15A DC Charging Module Switching Power Supply with Ce, UL

Name: 48V 15A DC Charging Module Switching Power Supply with Ce, UL
Brand: all-electronics-online.com
SKU: 726524682
Availability: InStock
Rating: 4.7 (147 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR4815D
Efficiency:	>90%
Input Frequency:	45~65Hz
Input Current:	6.8A
Power Factor:	0.98
Output Voltage:	36~58VDC
Output Current:	15A
Stabilized Voltage Precision:	±1%
Operating Temperature:	-20~55°c
Weight:	≤1.5kg
Humidity:	5~95%
Output Type:	Single
Warranty:	2 Years
Certification:	ISO
Output Power:	800W
Input Voltage:	90~280VAC
Brand:	Goldpower

Product Description

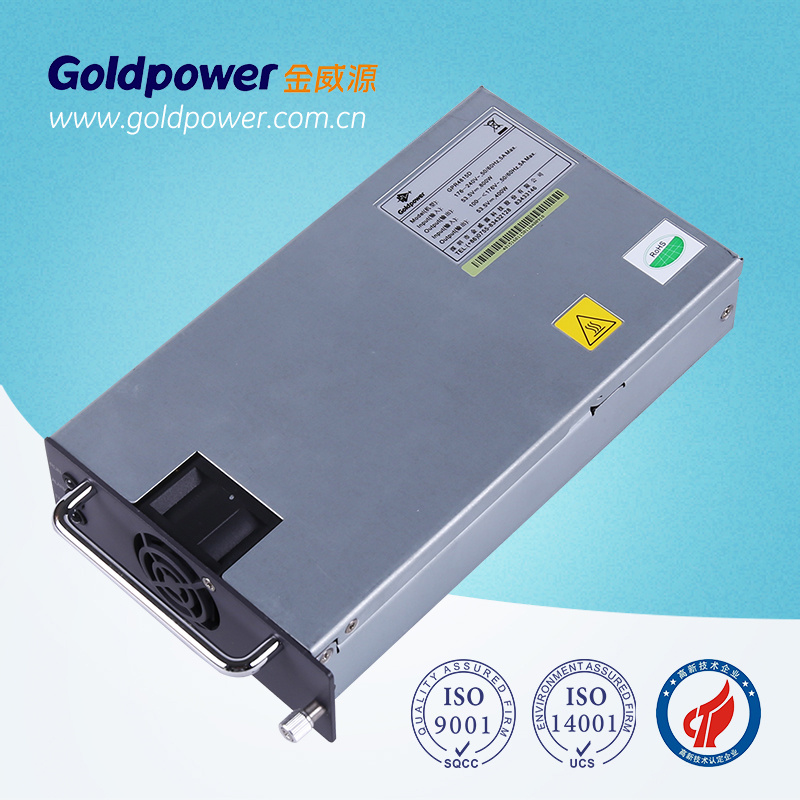

48V 15A Electric Vehicle Charger Rectifier Module is high power density DC chaging module power supply with Ce, UL

Features:

1. Ultra high power density up to 25 W/in³, compact structure.

2. Soft-switching technology, high efficiency more than 96%.

3. Leading APFC tech (active power factor correction), power factor > 0.98

4. Multiple protection and safety regulation (CE/UL)

5. Supports hot plugging.

6. Remote control switching

Customized output interface available,with communication port RS485

Paralleled work available via current sharing bus

THD≤5%

Wide operating range:-20~+55ºC.
Application:
1. EV charger
2. 48V distributed power system
3. Ethernet
4. Exchange
5. LAN,MAN
6. Sever
7. Indoor wireless
8. Telecom equipment

Specification:

Model	GPR4815D
Power	800W
Efficiency	>90%
Input voltage	90~280Vac
Input frequency	45~65Hz
Input current	6.8A
Power Factor	0.98
Output voltage	36~58Vdc
Output current	15A
Regulation	±1%
Ripple+Noise(Vp-p)	200mV
Operating temperature	-20~+55ºC
Storage temperature	-40~+70ºC
Humidity	5~95%
Cooling	Forced cooling
Acoustic noise	≤55dB
MTBF	≥150,000 hours
Turn-on time	3~8S
Current-sharing	±5%
Temperature coefficient	±0.02%/ºC
Dimensions(LxWxH)	208x116.5x41.6(mm)/8.2x4.6x1.6(in.)
Weight	≤1.5KG
Protection	Input over/under voltage,output over voltage,output limited current,short circuit,thermal protection,fan failure.
