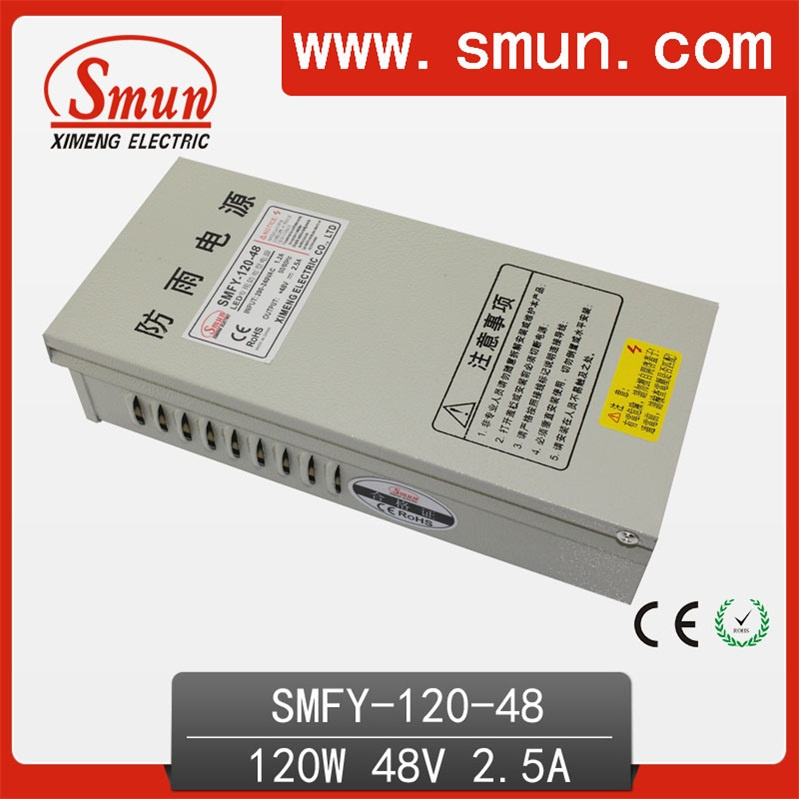

48V 2.5A 120W Rain-Proof Switching Power Supply

48V 2.5A 120W Rain-Proof Switching Power Supply
Price: US $ 7-11/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: SMFY-120-48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 120W
Input: 85-132VAC 170-264VAC 240-370VDC
Output: 48V 0-2.5A
Size: 222*105*55mm
Weight: 0.8kg
IP Degree: IP40
Warranty Time: 12 Months
DC Adjustable: 10%
Working Temperature: -10~+60 Degree C,20%~90%Rh
Safety Standard: En60950 UL60950 GB4943
Output Type: Single
Warranty: 1 Year
Output Power: 101 - 200W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: ISO
Brand: Smun

Product Description

1. Advantage and value
Normal switching power supply:
100% full load burn-in test
Protections: Short circuit, over load, over current, over temperature
High efficiency, low ripple noise
One year warranty
LED Driver:
*Small size, light weight, high efficiency, long life, safety and reliability
*Built-in PFC function
*Protections: Over voltage, Over current, Over temperature., Short Circuit
*Waterproof Rank: IP67
*Ideal for outdoor LED lighting, LED street lights, LED tunnel lighting and so on
2. Certificate
CE certificate
ROHS
CCC
ISO
3. Brand
Smun

4. Workers: 150 person
5. R&D departement
6. QC departement
7. Machine: 10


Our company is a high-tech company specialized in designing. R&D. Production and sale,
The products"Switching Power Supply" are with the characteristics of the low price,
High efficiency, high reliability, long lifetime and so on. Our products are widely used
In industrial automation field, indoor and outdoor LED lighting, LED lighting projects,
Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded
Product to replace traditional controlling transformer.

The design of this series of products is in accordance with such international standards
As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.

Our Switching Supply have many series:

Single output Switching Power Power Supply
Dual output Switching Power Supply
Triple output Switching Power Supply
Quad output Switching Power Supply
Din-rail Switching Power Supply
LED driver Switching Power Supply
DC Power Supply Series

Also we can design and produce according to your need.
Welcome to contact us anytime.


Specifications
1) High efficiency, low operation temperature
2) Aluminum plastic shell
3) 100% full load burn-in test
4)CE, RoHS
Features:
1) The world to adapt to AC input power
2) Protection: Overload, short circuit, over voltage, over-temperature protection
3)Natural air-cooled heat
4)Aluminum plastic shell with internal irrigation design in line with the reuqirements of IP67 waterproof
5)Apply to indoor and outdoor LED lighting, electronic billboards, decorative lighting applications garden scaping
6)100% full load burn-in test
7) Competitive price, high reliability
8) Dimensions: 222*105*55mm
9) CE, RoHS certified
10)Customized designs are accepted
Model

SMFY-120-5SMFY-120-12SMFY-120-15SMFY-120-24SMFY-120-48
OutputDC output Voltage5V12V15V24V48V
Voltage tolerance±1.0%±1.0%±1.0%±1.0%±1.0%
Rated Current24A10A8A5A2.5A
Related Power120w120w120w120w120w
Wave&Noise50mVp-p50mVp-p50mVp-p50mVp-p100mVp-p
Set up,rise,hold up time200ms  100ms  30ms
InputVoltage Range170-264VAC  47-63HZ 240-370VDC
Input Current0.65A/230VAC
Efficiency81%81%84%84%84%
AC inrush currentCold start current 36A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated output power 105-135% start overload protection
Protection type: hiccup mode, recovery after restart power
Over voltageReted output power 135-150% start over voltage protection
Protection type: hiccup mode, recovery after restart power
EnvironmentWorking temp humidity-10~+60°C 20%~90%RH
Stor temp, humidity-20~+85°C 20%~90%RH Non-condensing
Withstand vibration10-500Hz,2G 10min/Ccle, period for 60min, each axes
SafetyWithstand voltageI/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA
Isolation resistanceI/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC
SizesizeL222*W105*H55mm
weight0.8kg 20pcs/16kg
