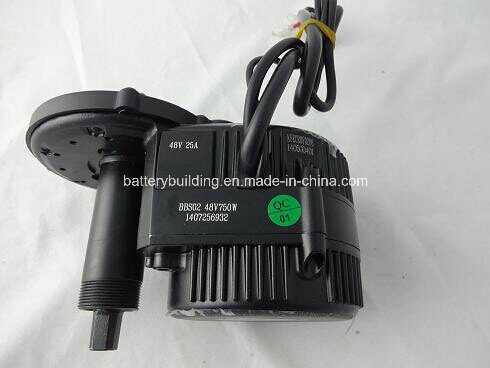

48V 750W 8fun/Bafang/ BBS02 Middle Drive Motor with 25A Integrated Controller

Prod Model:	8FUN-BBS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	8fun BBS02 MID Drive Motor
Voltage:	48V
Power:	750W
Controller:	25A Integrated Controller
LCD:	C961/C963
Chain Wheel And Chain Cover:	46t/48t/52t
Noise:	<55db
Weight After Packing:	6.5kg
Specification:	CE, RoHS.
Warranty:	1 Year Warranty
Application:	Universal
Operating Speed:	High Speed
Structure And Working Principle:	Brushless
Number Of Poles:	48V
Type:	BBS
Brand:	8fun

Product Description

 48V 750W 8FUN/Bafang BBS02 mid/central driven motor  for electric bicycle with quality guarantee.

Motor kits content:
1.8Fun central motor with 25A integrated controller.
2.LCD display (C961 or C963).
3.Chain wheel and chain cover (46T, 48T and 52T are all available).
4.Cranks. (left and right crank)
5.Speed sensor and magnet
6.Brake levers.
7.Thumb throttle
8.Nuts

Advantages:
1. This kits can be installed on standard normal bike frame easily, no need to change the frame.
2, High starting torque,  Max torque≥80Nm, good performance on climbing
3, Double clutch is used on drive unit, more safety.
4, High efficiency, low consumption, long travel distance.


Which bike can use 8FUN mid drive crank motor kits?
1. Bottom Bracket Width shall be 68mm
2. Suitable for 24-26" Mountain Bike or 16-20" Folding Bike
3. Your bike shall have the down tube to fix motor
4. Front Derailleur shall be removed


MID Motor Advantage over Hub Motor
1. Compared to a hub motor, a MID drive is an elegant solution.
2. MID drives allow you to use the bike's transmission as the motor's gears. So the electric motor can run in its optimum RPM range.
3. This translates to a happier more efficient motor and a lighter better balanced e-bike.
4. A MID drive is considerably more efficient than a hub motor especially when climbing.


Payment Terms
1.We accept bank transfer(T/T), Western Union, MoneyGram, cash etc.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.All the motor we provide have 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
