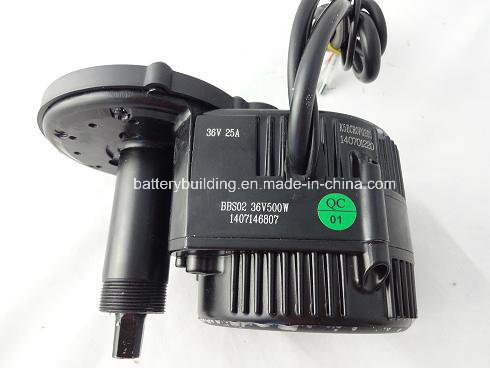

Best Performance 36V 500W 8fun/Bafang Central/MID Driven BBS02 Motor

Name: Best Performance 36V 500W 8fun/Bafang Central/MID Driven BBS02 Motor
Brand: all-electronics-online.com
SKU: 749829675
Availability: InStock
Rating: 4.3 (34 reviews)

Price:	US $ 390-400/Piece
Trade Terms:	EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BB-BBS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	8fun BBS02 MID Drive Motor
Voltage:	36V
Power:	500W
Controller:	25A Integrated Controller
LCD:	C961/C963
Chain Wheel And Chain Cover:	46t/48t/52t
Noise:	<55db
Weight After Packing:	6.5kg
Specification:	CE, RoHS.
Warranty:	1 Year Warranty
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Universal
Number Of Poles:	36V
Brand:	8fun
Type:	BBS

Product Description

Most popular 36V 500W 8FUN/Bafang BBS02 mid/central driven motor for electric bicycle with quality guarantee.

1.Motor kits content:
1.8Fun central motor with 25A integrated controller.
2.LCD display (C961 or C963).
3.Chain wheel and chain cover (46T, 48T and 52T are all available).
4.Cranks. (left and right crank)
5.Speed sensor and magnet
6.Brake levers.
7.Thumb throttle
8.Nuts

2.Advantages:
1. This kits can be installed on standard normal bike frame easily, no need to change the frame.
2, High starting torque, Max torque≥80Nm, good performance on climbing
3, Double clutch is used on drive unit, more safety.
4, High efficiency, low consumption, long travel distance.

Which bike can use 8FUN mid drive crank motor kits?
1. Bottom Bracket Width shall be 68mm
2. Suitable for 24-26" Mountain Bike or 16-20" Folding Bike
3. Your bike shall have the down tube to fix motor
4. Front Derailleur shall be removed

MID Motor Advantage over Hub Motor
1. Compared to a hub motor, a MID drive is an elegant solution.
2. MID drives allow you to use the bike's transmission as the motor's gears. So the electric motor can run in its optimum RPM range.
3. This translates to a happier more efficient motor and a lighter better balanced e-bike.
4. A MID drive is considerably more efficient than a hub motor especially when climbing.
